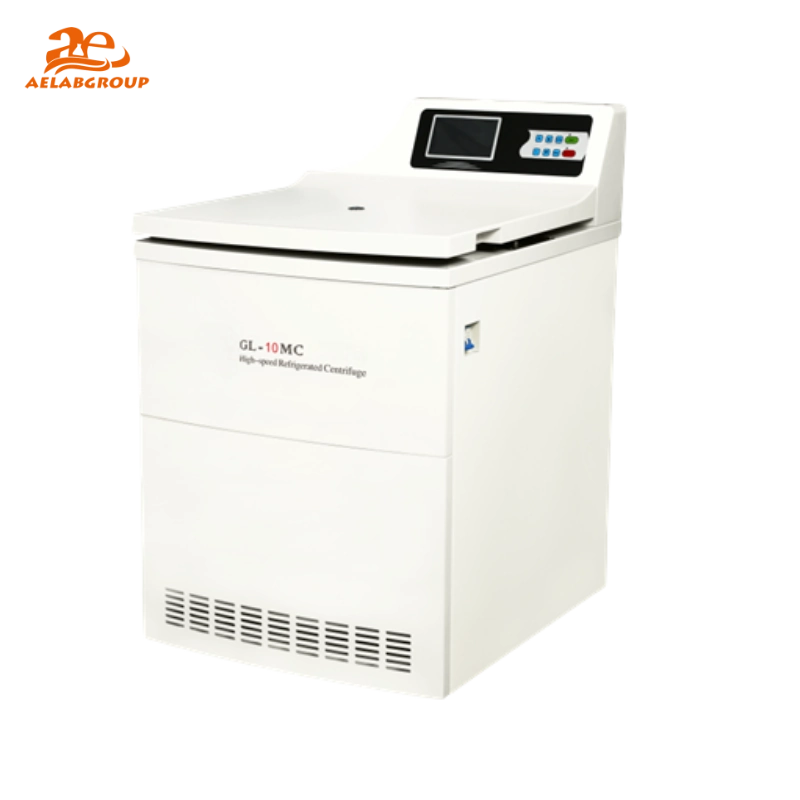

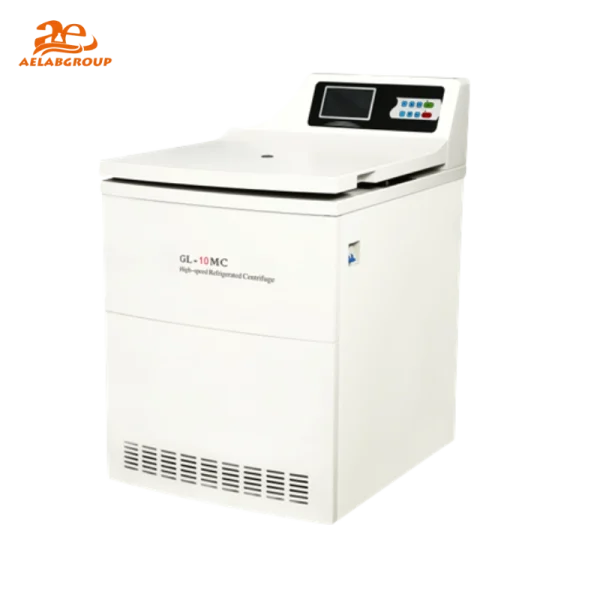

The AELAB GL-10MC floor type high speed refrigerated centrifuge is engineered for high-capacity laboratory separation under controlled temperature conditions. Utilizing microcomputer control and an AC frequency conversion motor, the AELAB GL-10MC centrifuge ensures stable speed regulation, reduced vibration, and extended operational lifetime.
Designed for ease of operation, the AELAB GL-10MC features a large LCD touchscreen interface and programmable applications, supporting multiple rotor configurations to accommodate diverse laboratory testing requirements.
The AELAB GL-10MC centrifuge adopts a floor-standing structure optimized for mechanical stability and vibration reduction. Integrated refrigeration components utilize a high-performance, CFC-free compressor system to maintain controlled internal temperature conditions during high-speed operation.
The AELAB GL-10MC performs centrifugal separation by regulating rotational speed and temperature through microprocessor control. Acceleration time, deceleration time, and Relative Centrifugal Force are automatically calculated to achieve consistent and reproducible separation results.
The AELAB GL-10MC centrifuge is operated via an integrated LCD touchscreen interface. External connectivity and data export functions are not specified in the provided documentation.
The AELAB GL-10MC high speed refrigerated centrifuge is suitable for sample separation in biomedical research, pharmaceutical laboratories, biochemical analysis, blood processing, and industrial quality control environments.
The AELAB GL-10MC centrifuge incorporates over-speed protection, over-temperature protection, imbalance protection, and automatic electronic or mechanical door locking to ensure operator safety and reliable laboratory operation.
Specifications :
| Parameter | Specification |
|---|---|
| Model | GL-10MC |
| Maximum Speed / RCF | 10,000 r/min / 18,300 × g |
| Speed Accuracy | ±10 r/min |
| Temperature Range | −20 °C ~ +40 °C |
| Temperature Accuracy | ±1 °C |
| Refrigeration System | High-performance Compressor, CFC-free Refrigeration System |
| Timer Range | 0~23 h 59 min |
| Motor | Microprocessor Control, Frequency Conversion Motor |
| Noise | ≤60 dB(A) |
| Power Supply | AC 220 V, 50–60 Hz, 30 A |
| Dimensions (L × W × H) | 710 × 820 × 1200 mm |
| Net Weight | 260 kg |
| Rotor No. | Maximum Capacity | Maximum Speed | Maximum RCF |
|---|---|---|---|
| No.1 AR | 6 × 300 mL | 10,000 r/min | 18,300 × g |
| No.2 AR | 6 × 500 mL | 8,000 r/min | 11,620 × g |
| No.3 SR | 6 × 1,000 mL | 7,000 r/min | 11,500 × g |
| Parameter | Specification |
|---|---|
| Model | GL-10MC |
| Maximum Speed / RCF | 10,000 r/min / 18,300 × g |
| Speed Accuracy | ±10 r/min |
| Temperature Range | −20 °C ~ +40 °C |
| Temperature Accuracy | ±1 °C |
| Refrigeration System | High-performance Compressor, CFC-free Refrigeration System |
| Timer Range | 0~23 h 59 min |
| Motor | Microprocessor Control, Frequency Conversion Motor |
| Noise | ≤60 dB(A) |
| Power Supply | AC 220 V, 50–60 Hz, 30 A |
| Dimensions (L × W × H) | 710 × 820 × 1200 mm |
| Net Weight | 260 kg |
| Rotor No. | Maximum Capacity | Maximum Speed | Maximum RCF |
|---|---|---|---|
| No.1 AR | 6 × 300 mL | 10,000 r/min | 18,300 × g |
| No.2 AR | 6 × 500 mL | 8,000 r/min | 11,620 × g |
| No.3 SR | 6 × 1,000 mL | 7,000 r/min | 11,500 × g |
No download files available for this product.
