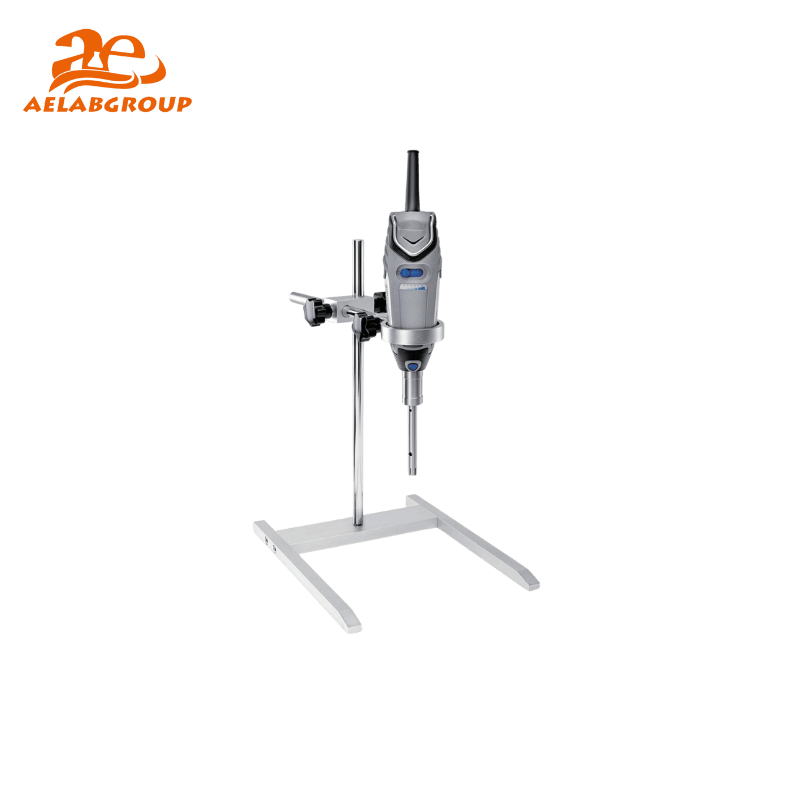

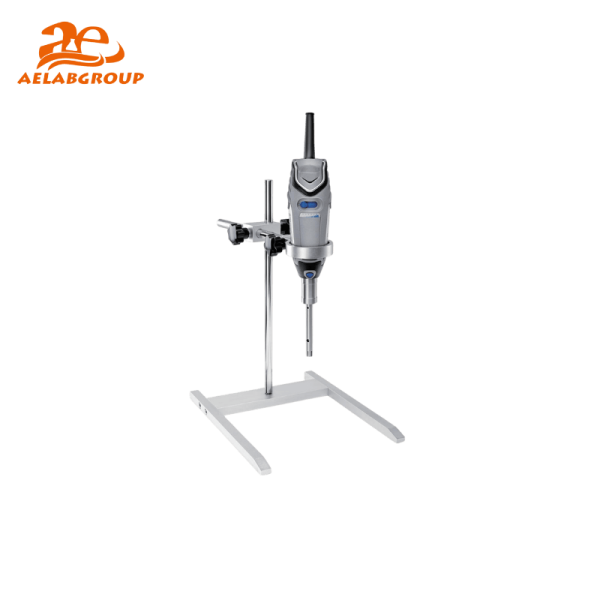

The AELAB D-160 Handheld Homogenizer is designed for rapid homogenizing, emulsifying, suspending, and disrupting biological samples such as tissue of animal, bacteria, yeast, and plant materials in liquids. It is ideal for sample volumes from 0.1 mL to 250 mL depending on the dispersing shaft selected.
This lightweight and ergonomic homogenizer supports manual operation and provides variable speeds from 8,000 to 32,000 rpm for precision sample preparation. Interchangeable 316L Stainless Steel shafts enable quick dismantling and full autoclave sterilization for contamination-free workflows.
The AELAB D-160 features a compact 45 × 55 × 190 mm frame and a robust AC carbon brush motor rated at 160 W. The dispersing shafts are manufactured from SS 316L Stainless Steel with PTFE internal components to ensure chemical resistance and long service life. Each shaft is fully autoclavable and optimized for specific volume ranges from 0.1 mL to 250 mL.
The D-160 homogenizer operates by generating high-speed rotor–stator shear forces at linear velocities from 6.3 m/sec to 14 m/sec. The adjustable 10-stage speed control enables precise sample processing, ensuring uniform disruption, emulsification, and particle size reduction across complex biological matrices. This ensures reproducible homogenization of tissue, cellular suspensions, and viscous samples up to 5,000 mPas.
The AELAB D-160 integrates easily with laboratory support stands and safety enclosures. Its simple power interface (110–120 V / 60 Hz or 220–240 V / 50–60 Hz) allows deployment across global laboratory environments. The rotor–stator shaft system is optimized for quick, tool-free installation and removal.
| Model | Specifications |
|---|---|
| DS-160/5 | 0.1–50 mL, 6.3 m/sec, 316L Stainless Steel, Cat. No. 18900543 |
| DS-160/7 | 1–150 mL, 10 m/sec, 316L Stainless Steel, Cat. No. 18900815 |
| DS-160/10 | 1–250 mL, 14 m/sec, 316L Stainless Steel, Cat. No. 18900544 |
The AELAB D-160 Handheld Homogenizer is suitable for molecular biology, microbiology, histology, pharmaceutical development, biochemical processing, and food analysis. Typical applications include tissue disruption, cell lysis, sample emulsification, suspension mixing, and preparation of homogenates for downstream analytical workflows.
The D-160 complies with standard laboratory quality control requirements and is manufactured under AELAB’s ISO-aligned production and inspection processes. The IP20 protection class and full autoclave compatibility ensure safe, reproducible, and contamination-free operation.
Specifications :
| Specifications | D-160 |
|---|---|
| Speed range | 8000–32000 rpm |
| Max linear velocity | 6.3, 10, 14 m/sec |
| Speed level | 10 stage |
| Working volume [H₂O] | 0.1–50 mL (Dispersing shaft DS-160/5) 1–150 mL (Dispersing shaft DS-160/7) 1–250 mL (Dispersing shaft DS-160/10) |
| Max. viscosity | 5,000 mPas |
| Material of Dispersing Shaft | SS 316L stainless steel, PTFE |
| Noise Level | 72 dB(A) |
| Protection class | IP20 |
| Voltage, Frequency | 110–120 V / 60 Hz 220–240 V / 50–60 Hz |
| Power | 160 W |
| Motor Type | AC carbon brush motor |
| Dimension [W×D×H] | 45 mm × 55 mm × 190 mm |
| Weight | 0.54 kg |
| Permissible ambient temperature and humidity | 0–40 °C, 85% RH |
| Model | Catalog No. | Specifications |
|---|---|---|
| DS-160/5 | 18900543 | Volume 0.1–50 mL Max. Circum. Speed 6.3 m/sec Material: 316L stainless steel Application: small amounts of solid/liquid mixed Function: dispersing tool for solid/liquid media |
| DS-160/7 | 18900815 | Volume 1–150 mL Max. Circum. Speed 10 m/sec Material: 316L stainless steel Application: small amounts of solid/liquid mixed Function: dispersing tool for solid/liquid media |
| DS-160/10 | 18900544 | Volume 1–250 mL Max. Circum. Speed 14 m/sec Material: 316L stainless steel Application: small amounts of solid/liquid mixed Function: dispersing tool for solid/liquid media |
| Specifications | D-160 |
|---|---|
| Speed range | 8000–32000 rpm |
| Max linear velocity | 6.3, 10, 14 m/sec |
| Speed level | 10 stage |
| Working volume [H₂O] | 0.1–50 mL (Dispersing shaft DS-160/5) 1–150 mL (Dispersing shaft DS-160/7) 1–250 mL (Dispersing shaft DS-160/10) |
| Max. viscosity | 5,000 mPas |
| Material of Dispersing Shaft | SS 316L stainless steel, PTFE |
| Noise Level | 72 dB(A) |
| Protection class | IP20 |
| Voltage, Frequency | 110–120 V / 60 Hz 220–240 V / 50–60 Hz |
| Power | 160 W |
| Motor Type | AC carbon brush motor |
| Dimension [W×D×H] | 45 mm × 55 mm × 190 mm |
| Weight | 0.54 kg |
| Permissible ambient temperature and humidity | 0–40 °C, 85% RH |
| Model | Catalog No. | Specifications |
|---|---|---|
| DS-160/5 | 18900543 | Volume 0.1–50 mL Max. Circum. Speed 6.3 m/sec Material: 316L stainless steel Application: small amounts of solid/liquid mixed Function: dispersing tool for solid/liquid media |
| DS-160/7 | 18900815 | Volume 1–150 mL Max. Circum. Speed 10 m/sec Material: 316L stainless steel Application: small amounts of solid/liquid mixed Function: dispersing tool for solid/liquid media |
| DS-160/10 | 18900544 | Volume 1–250 mL Max. Circum. Speed 14 m/sec Material: 316L stainless steel Application: small amounts of solid/liquid mixed Function: dispersing tool for solid/liquid media |
