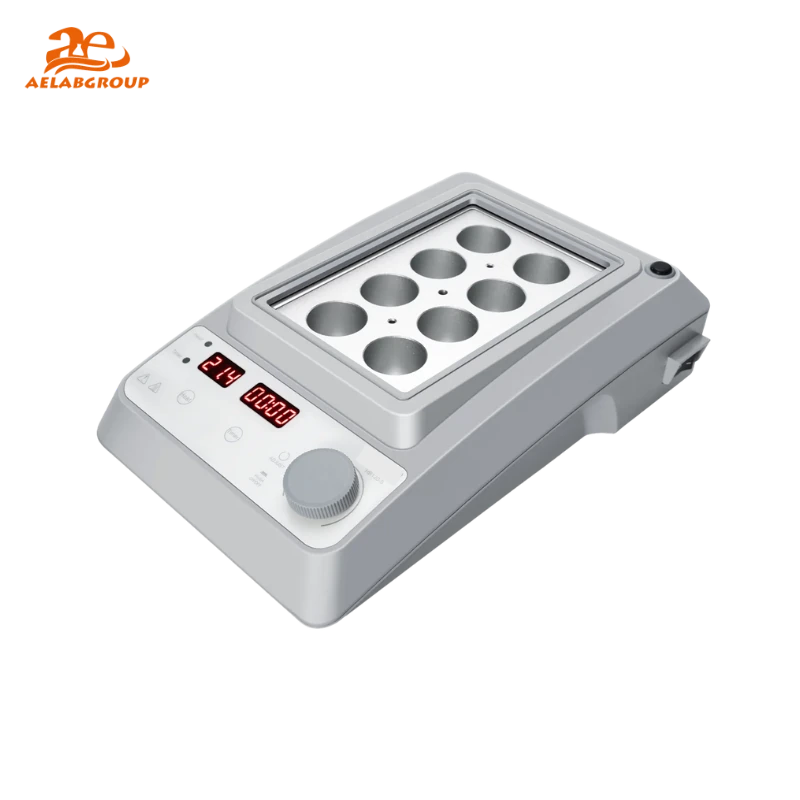

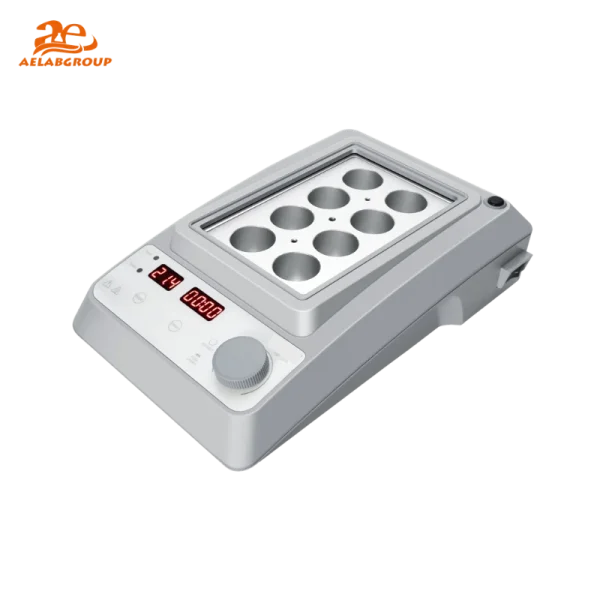

The AELAB HB120-S/SC LED Digital Dry Bath offers precise temperature control up to 120°C, ensuring consistent sample incubation and heating for various laboratory applications. With LED digital display, timer support, and multiple interchangeable aluminum block options, this dry bath guarantees performance, flexibility, and user safety.
The AELAB HB120-S/SC LED Digital Dry Bath is a high-precision heating system designed for temperature control applications up to 120°C. Equipped with a digital LED display, it offers accurate, stable heating for tubes, vials, and microplates. The unit includes a timer, overheating protection, and a heat-preserving lid, making it ideal for use in molecular biology, biochemistry, and clinical labs.
The AELAB HB120-S/SC LED Digital Dry Bath operates through precision-controlled heating blocks made of high-quality aluminum, ensuring uniform heat distribution across all sample wells. Its advanced microprocessor-based temperature controller allows users to set and maintain accurate heating profiles, while the LED display ensures easy monitoring of both temperature and time. Optional interchangeable blocks accommodate various tube sizes and microplates for maximum versatility.
Wide Temperature Range: Up to 120°C, suitable for most laboratory heating tasks
LED Digital Display: Clear visualization of temperature and time settings
Interchangeable Blocks: Adaptable to different sample tube sizes and formats
Built-in Overheat Protection: Ensures safe and reliable operation
Timer Function: Enables unattended, timed heating operations
Compact & Durable Design: Ideal for benchtop use with minimal space requirements
| Use Case | Recommended Model |
|---|---|
| Educational & Teaching Labs | HB120-S (basic temperature control) |
| Research & Clinical Labs | HB120-SC (enhanced control and precision) |
| Molecular Biology Applications | HB120-SC with PCR-compatible thin blocks |
| Quality Control & Industrial Testing | HB120-S for routine heating and incubation |
Molecular biology and biochemistry labs
Sample incubation and enzyme reactions
PCR sample preparation and denaturation
Serum coagulation and heating assays
Pharmaceutical and food testing laboratories
| Accessory Type | Cat. No. | Capacity | Diameter × Depth (mm) | Notes |
|---|---|---|---|---|
| Block type | 18900218 | 0.2 mL × 54 | 6.4 × 15 | – |
| Thin Block type | 18900274 | 0.2 mL × 54 | 6.4 × 15 | – |

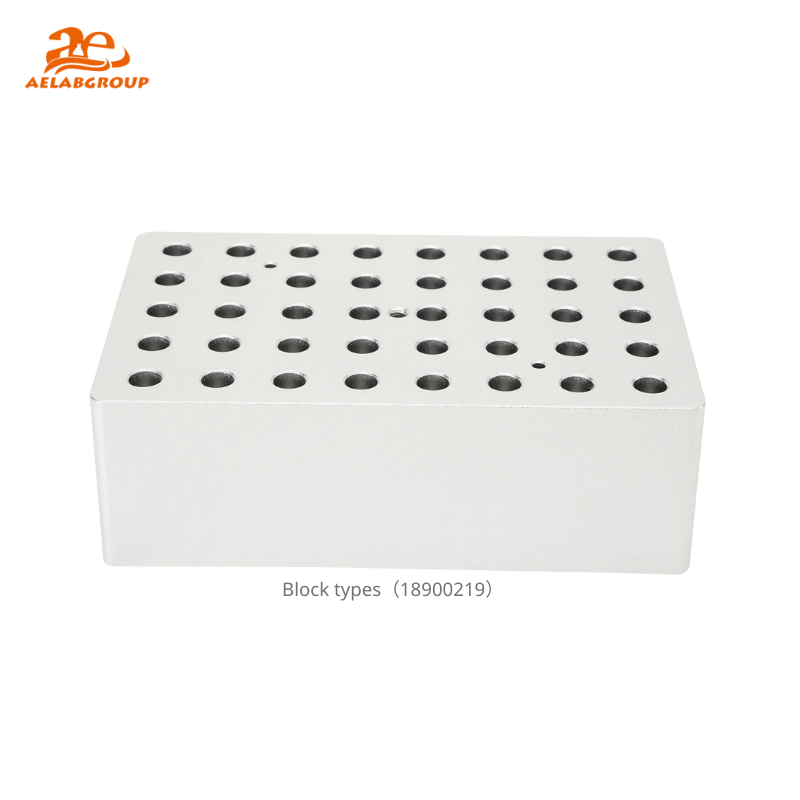

| Block type | 18900219 | 0.5 mL × 40 | 8.2 × 26.4 | – |
| Thin Block type | 18900275 | 0.5 mL × 40 | 8.2 × 26.4 | – |
| Block type | 18900253 | 1.5 mL × 40 | 11 × 34.7 | – |
| Thin Block type | 18900276 | 1.5 mL × 40 | 11 × 34.7 | – |
| Block type | 18900220 | 2 mL × 40 | 11 × 34.7 | – |
| Thin Block type | 18900277 | 2 mL × 40 | 11 × 34.7 | – |
| Block type | 18900221 | 5/15 mL × 28 | 17 × 48 | – |
| Block type | 18900222 | 50 mL × 8 | 29.8 × 48 | – |
| Block type | 18900224 | 0.2 mL ×18 + 0.5 mL ×18 + 1.5/2 mL ×18 | – | Multi-size combination |
| Thin Block type | 18900278 | 0.2 mL ×18 + 0.5 mL ×18 + 1.5/2 mL ×18 | – | Multi-size combination |
| Block type | 18900223 | Microplate | 128.5 × 86.5 × 8 | Standard microplate format |
| Thin Block type | 18900279 | Microplate | 128.5 × 86.5 × 8 | Internal dimension |
| Block type | 18900546 | 5 mL blood collection tube ×45 | 13.5 × 48 | – |
| Thin Block type | 18900504 | 0.2 mL ×8 PCR strips / 0.2 mL ×96 microplate | 6.1 × 14.5 | PCR-compatible |
| Block type | 18900523 | Dual-purpose block | 143 × 87 × 58 | Bead bath/water bath |
| Aluminum beads | 18900520 | – | – | Suitable for bead bath use |

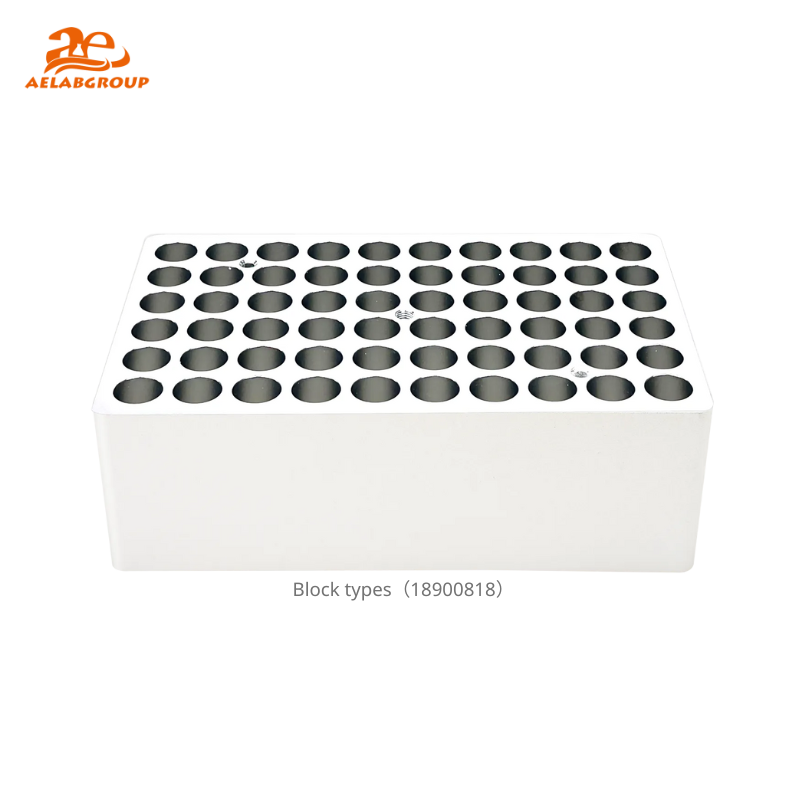

| Block type | 18900818 | 2 mL × 60 ampoules | 12 × 37 | Ampoule format |
Specifications :
| Parameter | Specification |
|---|---|
| Model | HB120-S / HB120-SC |
| Catalog No. | 5032101200 |
| Temperature Range | Room temperature +5°C to 120°C |
| Temperature Setting Range | 25°C – 120°C |
| Temperature Control Accuracy | ±0.5°C |
| Temperature Display Accuracy | 0.1°C |
| Temperature Uniformity @37°C | ±0.5°C |
| Time Setting Range | 0 min – 99 h 59 min |
| External Sensor | – |
| Display Type | LED |
| Power Consumption | 160W |
| Voltage/Frequency | 110/220V, 50/60Hz |
| Dimensions (W×D×H) | 175 × 290 × 85 mm |
| Weight | 3 kg |
| Permissible Ambient Temperature | 10–40°C |
| Permissible Ambient Humidity | <80% RH |
| Overheating Protection | Yes |
| Timer Function | Yes |
| Parameter | Specification |
|---|---|
| Model | HB120-S / HB120-SC |
| Catalog No. | 5032101200 |
| Temperature Range | Room temperature +5°C to 120°C |
| Temperature Setting Range | 25°C – 120°C |
| Temperature Control Accuracy | ±0.5°C |
| Temperature Display Accuracy | 0.1°C |
| Temperature Uniformity @37°C | ±0.5°C |
| Time Setting Range | 0 min – 99 h 59 min |
| External Sensor | – |
| Display Type | LED |
| Power Consumption | 160W |
| Voltage/Frequency | 110/220V, 50/60Hz |
| Dimensions (W×D×H) | 175 × 290 × 85 mm |
| Weight | 3 kg |
| Permissible Ambient Temperature | 10–40°C |
| Permissible Ambient Humidity | <80% RH |
| Overheating Protection | Yes |
| Timer Function | Yes |
