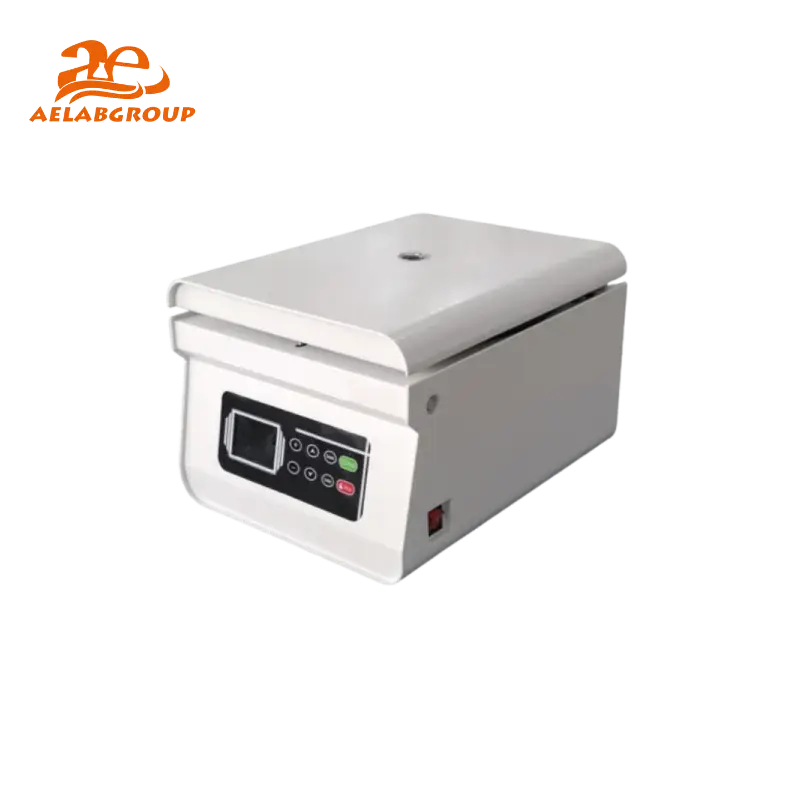

The AELAB TG16-WS is designed for rapid and precise centrifugation of biological and clinical samples. It is suitable for biotechnology, PCR, and life science laboratories, providing consistent performance for medical, hospital, and institutional research environments. With a wide range of rotor heads and adapters, the TG16-WS offers flexible sample processing for diverse tube sizes and volumes.
Reliable drive design ensures low noise and stable operation, while the emergency lid-release function enhances safety during unexpected power interruptions. Protection mechanisms for imbalance, door lid, and overspeed maintain long-term reliability under intensive use.
The TG16-WS centrifuge features a stainless-steel inner chamber and reinforced metal body for durability and easy cleaning. It integrates a brushless converter motor for maintenance-free operation and precise speed control. The LCD digital display enables clear visualization of speed, time, and RCF parameters, facilitating accurate control and reproducibility in every run.
The instrument operates through high-speed rotation generating centrifugal force up to 21,800 ×g. Samples are balanced across the rotor, and acceleration is governed by an intelligent microprocessor controller that regulates speed and braking smoothly. The digital control panel allows precise setting of speed (r/min or RCF) and timing between 0–99 minutes, ensuring reproducible separation of biological fluids, precipitates, and microsamples.
The TG16-WS supports LCD-based operational control and can interface with laboratory data systems for GLP record keeping. Optional PC connectivity and data logging accessories enable traceable centrifugation records.
| Rotor Type | Capacity | Max Speed (r/min) | Max RCF (×g) |
|---|---|---|---|
| Angle Rotor | 12 × 1.5/2.2 ml AR | 16000 | 17800 |
| Angle Rotor | 12 × 10/15 ml AR | 12000 | 14800 |
| Angle Rotor | 48 × 0.5/1.5 ml AR | 13500 | 14800 |
| Angle Rotor | 6 × 50/30 ml AR | 11000 | 12000 |
| Angle Rotor | 24 × 1.5/2.2 ml AR | 15000 | 21800 |
| Angle Rotor | 8 × 100 ml AR | 10000 | 9800 |
| Angle Rotor | 8 × 50 ml AR | 8000 | 9800 |
| Angle Rotor | 2 × 24 × 48 holes | 4000 | 1400 |
The AELAB TG16-WS centrifuge is ideal for biological, biochemical, pharmaceutical, and environmental laboratories. It supports applications such as DNA/RNA extraction, cell and protein separation, blood sample processing, and microtube centrifugation for PCR sample preparation.
Manufactured under strict ISO and CE standards, the AELAB TG16-WS complies with GLP laboratory protocols. All units are factory-calibrated and tested for speed accuracy and imbalance protection to ensure long-term reliability and safety in professional laboratory environments.
Specifications :
| Model | Max Speed | Max RCF | Display | Max Capacity | Weight | Speed Accuracy | Timer Range | Motor | Noise | Power Supply | Dimension (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TG16-WS | 16000 r/min | 21800 ×g | LCD / Digital display | 4 × 100 ml | 30 kg | ±50 r/min | 0 ~ 99 min | Brushless Converter Motor | ≤ 60 dB(A) | AC 220 V & 110 V 50 Hz 5 A | 410 × 352 × 310 mm |
| Model | Max Speed | Max RCF | Display | Max Capacity | Weight | Speed Accuracy | Timer Range | Motor | Noise | Power Supply | Dimension (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TG16-WS | 16000 r/min | 21800 ×g | LCD / Digital display | 4 × 100 ml | 30 kg | ±50 r/min | 0 ~ 99 min | Brushless Converter Motor | ≤ 60 dB(A) | AC 220 V & 110 V 50 Hz 5 A | 410 × 352 × 310 mm |
