The AELAB AE-HC/HSC Series integrates advanced centrifugation technologies for clinical, molecular, and diagnostic laboratories. The AE-HC-12 Hematocrit Centrifuge provides precise separation of erythrocyte volume fractions, while the AE-HSC-15 High Speed Micro Centrifuge achieves rapid microtube processing up to 15000 rpm with exceptional stability and accuracy. Both instruments feature brushless DC motors, intuitive digital interfaces, and dependable AELAB safety engineering for continuous laboratory performance.

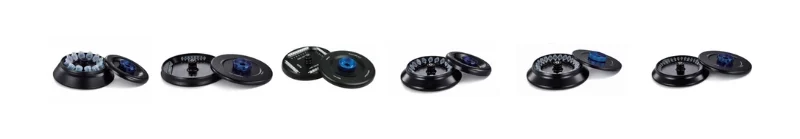

The AE-HC/HSC Series features a compact benchtop chassis built from high-strength polymer and stainless-steel structural components. Each unit employs a precision brushless DC motor for vibration-free acceleration and extended service life. The AE-HC-12 includes an A24-capillary rotor for hematocrit analysis, while the AE-HSC-15 utilizes a fully autoclavable aluminum-alloy rotor with multi-tube compatibility (1.5/2 mL, 0.5 mL, 0.2 mL, and 5 mL formats). A sealed three-layer rotor design prevents aerosol leakage, ensuring safe biological handling.
Samples are separated by centrifugal force generated at controlled rotational speeds. The AE-HC-12 precisely determines erythrocyte volume fractions and bilirubin concentration in neonatal blood, supporting quantitative hematology analysis. The AE-HSC-15 operates through micro-volume centrifugation, enabling DNA/RNA isolation, protein precipitation, and PCR purification. Digital control allows speed, RCF, and runtime programming with 10 rpm resolution for reproducible sedimentation results.
Both models incorporate digital LCD displays with speed, RCF, and time monitoring. The control system supports sound alerts and run-status feedback for GLP documentation. Optional PC-link or data-export interfaces can be configured for traceable reporting and quality-assurance workflows.
| Model | Specifications |
|---|---|
| AE-HC-12 Hematocrit Centrifuge | 500–12000 rpm range, 13680×g max RCF, 24 capillary rotor, 8.5 kg weight, LCD display with door interlock. |
| AE-HSC-15 High Speed Micro Centrifuge | 15000 rpm max speed, 21380×g RCF, multi-rotor microtube capacity, 12 kg weight, dual interlock safety system. |
The AE-HC/HSC Series is designed for clinical hematology, biochemical research, molecular biology, and diagnostic testing. Typical uses include erythrocyte fractionation, bilirubin determination, DNA/RNA extraction, PCR sample preparation, serum clarification, and cell pellet formation for biomedical and industrial analysis.
All AELAB centrifuges comply with ISO and CE standards and are manufactured under strict GLP quality-control protocols. Each unit is factory-calibrated for rotational accuracy, electrical safety, and mechanical balance, ensuring long-term reliability in regulated laboratory environments.
Specifications :
| Model | AE-HC-12 | AE-HSC-15 |
|---|---|---|
| Speed Range / Max. Speed | 500–12000 rpm, increment: 100 rpm | 15000 rpm (200–15000 rpm), increment: 10 rpm |
| Max. RCF | 13680×g | 21380×g, increment: 10×g |
| Speed Accuracy | ±100 rpm | ±20 rpm |
| Rotor Capacity | 24 × capillary tubes | 1.5/2 mL ×24 | 0.2/0.5 mL ×36 | PCR-8 strips ×4 | 5 mL ×12 | 5 mL ×18 |
| Run Time | 10 sec – 99 min / Continuous | 30 sec – 99 min / Continuous |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LCD |
| Safety Devices | Door interlock | Dual door interlock, Over-speed detection, Automatic internal diagnosis |
| Acceleration / Braking Time | 40 s ↑ / 40 s ↓ | 25 s ↑ / 25 s ↓ |
| Power Supply | Single-phase, 200V–240V, 50Hz/60Hz, 5A; 380W | Single-phase, AC200V–400V, 50Hz/60Hz, 5A; AC100V–120V, 50Hz/60Hz, 8A; 200W |
| Dimensions (D×W×H) | 280 × 364 × 213 mm | 280 × 364 × 266 mm |
| Weight | 8.5 kg | 12 kg |
| Advanced Features | Speed/RCF switch; Short-time run; Sound-alert function | Speed/RCF switch; Short-time run; Sound-alert function |
| Noise Level | — | ≤64 dB |
| Model | AE-HC-12 | AE-HSC-15 |
|---|---|---|
| Speed Range / Max. Speed | 500–12000 rpm, increment: 100 rpm | 15000 rpm (200–15000 rpm), increment: 10 rpm |
| Max. RCF | 13680×g | 21380×g, increment: 10×g |
| Speed Accuracy | ±100 rpm | ±20 rpm |
| Rotor Capacity | 24 × capillary tubes | 1.5/2 mL ×24 | 0.2/0.5 mL ×36 | PCR-8 strips ×4 | 5 mL ×12 | 5 mL ×18 |
| Run Time | 10 sec – 99 min / Continuous | 30 sec – 99 min / Continuous |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LCD |
| Safety Devices | Door interlock | Dual door interlock, Over-speed detection, Automatic internal diagnosis |
| Acceleration / Braking Time | 40 s ↑ / 40 s ↓ | 25 s ↑ / 25 s ↓ |
| Power Supply | Single-phase, 200V–240V, 50Hz/60Hz, 5A; 380W | Single-phase, AC200V–400V, 50Hz/60Hz, 5A; AC100V–120V, 50Hz/60Hz, 8A; 200W |
| Dimensions (D×W×H) | 280 × 364 × 213 mm | 280 × 364 × 266 mm |
| Weight | 8.5 kg | 12 kg |
| Advanced Features | Speed/RCF switch; Short-time run; Sound-alert function | Speed/RCF switch; Short-time run; Sound-alert function |
| Noise Level | — | ≤64 dB |
