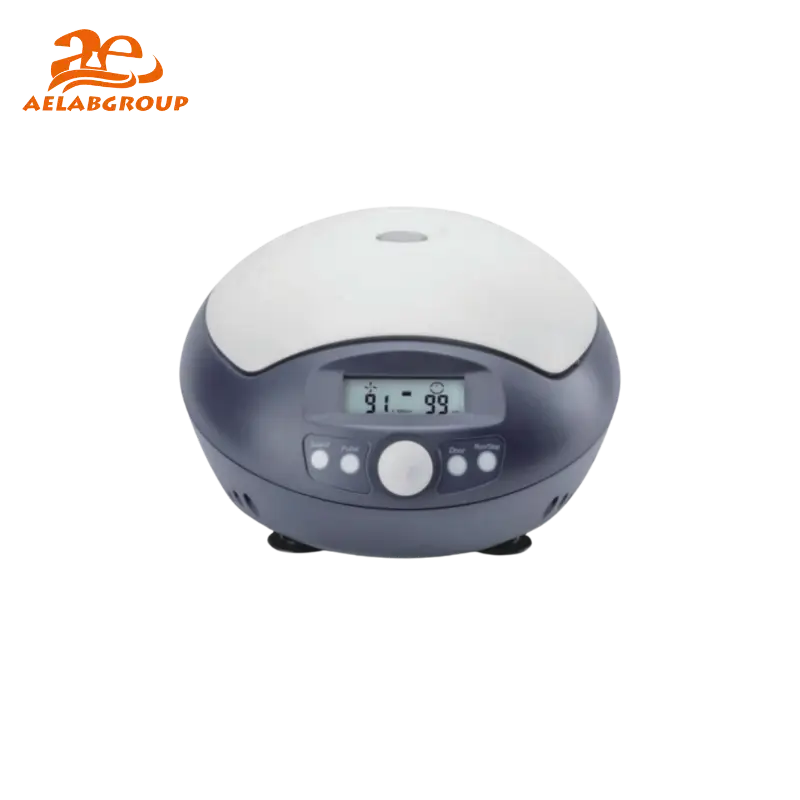

The AELAB D2012 Plus High-Speed Mini Centrifuge is engineered for fast, efficient micro-volume separation in molecular biology, clinical, and biochemical laboratories. Designed with precise digital control, the unit reaches speeds up to 15000 rpm, ensuring reproducible separation of DNA, RNA, and cellular components with minimal vibration and noise.
Microcentrifuges of the D2012 Plus class are ideal for plasmid extraction, nucleic acid purification, and pre-sequencing sample preparation. The system meets CE, cTUVus, and FCC certifications, confirming rigorous safety and performance standards.
The D2012 Plus features a durable ABS body with a brushless DC motor and precision-balanced rotor chamber. An intuitive LCD display with touch keys allows accurate speed and time programming. The automatic lid-lock and explosion-proof casing ensure laboratory safety and operator protection during high-speed operation.
The centrifuge operates on rapid rotational force, achieving 15100×g relative centrifugal force for effective sedimentation of micro-volume samples. The microprocessor precisely regulates acceleration and braking, maintaining constant speed throughout the run for reliable reproducibility in molecular biology and clinical assays.
The AELAB D2012 Plus supports data monitoring through its digital LCD interface with speed and RCF readout. The control panel allows quick parameter adjustment, while audible alerts signal run completion or fault conditions. The system complies with GLP documentation standards for regulated environments.
| Rotor / Adapter | Specifications | Catalog No. |
|---|---|---|
| A12-2P | 2 mL / 1.5 mL × 12, Max. 15000 rpm, Max. RCF 15100×g | 19400010 |
| A02P2 | 0.2 mL rotor adapter, compatible with A12-2P, AS24-2 | 19500001 |
| A05P2 | 0.5 mL rotor adapter, compatible with A12-2P, AS24-2 | 19500002 |
The D2012 Plus centrifuge is optimized for DNA/RNA extraction, plasmid preparation, sedimentation of biological components, and nucleic acid purification. It is widely used in molecular biology, clinical diagnostics, biochemistry, and chemical laboratories requiring reliable microsample separation.
The AELAB D2012 Plus complies with CE, cTUVus, and FCC safety standards. Each unit undergoes factory calibration and performance validation under ISO and GLP protocols to guarantee consistent, traceable laboratory operation.
Specifications :
| Specifications | D2012 Plus |
|---|---|
| Max. Speed | 15000 rpm (500–15000 rpm), increment: 100 rpm |
| Max. RCF | 15100 × g, increment: 100 × g |
| Speed Accuracy | ±20 rpm |
| Rotor Capacity | 0.2 mL / 0.5 mL / 1.5 mL / 2 mL × 12 |
| Run Time | 30 sec – 99 min / Continuous |
| Acceleration / Braking Time | 11 s / 9 s |
| Driving Motor | Brushless DC motor |
| Safety Devices | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
| Power Requirements | Single-phase, AC100V–240V, 50Hz/60Hz, 310W |
| Noise Level | ≤54 dB |
| Dimensions (W×D×H) | 255 × 245 × 140 mm |
| Weight | 6 kg |
| Other Functions | Speed/RCF switch, Short-time run function, Sound-alert function |
| Specifications | D2012 Plus |
|---|---|
| Max. Speed | 15000 rpm (500–15000 rpm), increment: 100 rpm |
| Max. RCF | 15100 × g, increment: 100 × g |
| Speed Accuracy | ±20 rpm |
| Rotor Capacity | 0.2 mL / 0.5 mL / 1.5 mL / 2 mL × 12 |
| Run Time | 30 sec – 99 min / Continuous |
| Acceleration / Braking Time | 11 s / 9 s |
| Driving Motor | Brushless DC motor |
| Safety Devices | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
| Power Requirements | Single-phase, AC100V–240V, 50Hz/60Hz, 310W |
| Noise Level | ≤54 dB |
| Dimensions (W×D×H) | 255 × 245 × 140 mm |
| Weight | 6 kg |
| Other Functions | Speed/RCF switch, Short-time run function, Sound-alert function |
