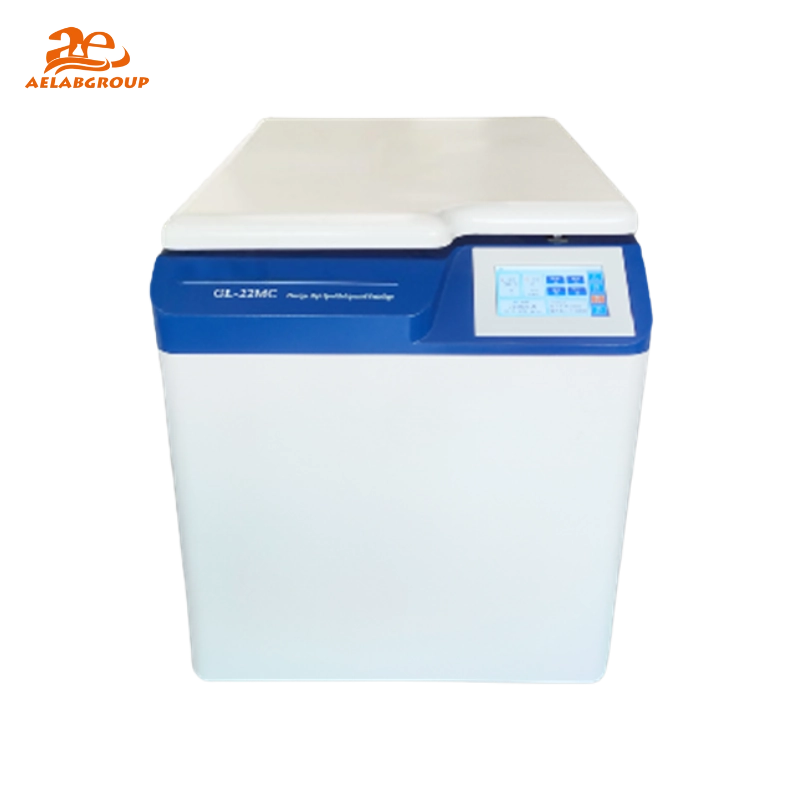

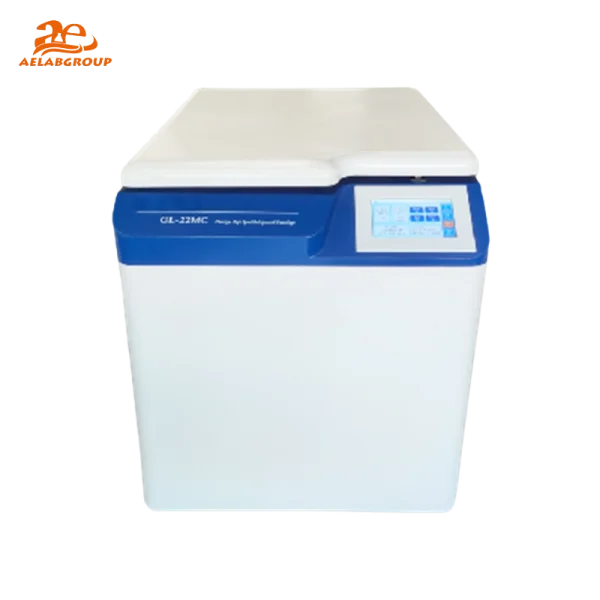

The AELAB iGL-21MC and iGL-22MC high speed refrigerated centrifuges perform controlled centrifugal separation with stable thermal regulation for laboratory testing, analytical research, and industrial workflows. Engineered with a self-diagnostic protection system, these centrifuges regulate speed, temperature, and braking to ensure secure operation under high centrifugal loads.
The AELAB iGL series integrates inverter compressor refrigeration and microprocessor control technology to maintain accurate temperature conditions while achieving high rotational speeds. This design ensures consistent centrifugal force output, reduced vibration, and reproducible separation results across extended operating cycles.
The AELAB iGL-21MC and iGL-22MC refrigerated centrifuges feature a reinforced laboratory-grade chassis with a high-efficiency inverter compressor and CFC-free refrigeration system. The internal drive system uses a frequency conversion motor to stabilize acceleration, deceleration, and long-term rotational accuracy.
The AELAB iGL-21MC and iGL-22MC apply controlled centrifugal force to samples through programmable rotational speed and time parameters. Integrated refrigeration regulates chamber temperature from −20 °C to +40 °C, ensuring sample integrity during biochemical, pharmaceutical, and material separation processes.
The AELAB iGL-21MC and iGL-22MC support USB data connectivity for program storage and data download. Optional PC integration enables extended data handling and workflow documentation aligned with laboratory record-keeping practices.
| Model | Max Speed | Max RCF | Net Weight |
|---|---|---|---|
| iGL-21MC | 21000 r/min | 52000×g | 260 kg |
| iGL-22MC | 22000 r/min | 53000×g | 260 kg |
The AELAB iGL-21MC and iGL-22MC high speed refrigerated centrifuges are used for sample separation in pharmaceutical laboratories, biochemical research, clinical testing, food safety analysis, and industrial material processing requiring controlled temperature centrifugation.
The AELAB iGL series centrifuges are designed for laboratory environments requiring stable operation, controlled refrigeration, and reproducible results. Microprocessor control, rotor protection logic, and data handling support quality-controlled workflows aligned with ISO and GLP laboratory practices.
Specifications :
| Model | iGL-21MC | iGL-22MC |
| Max Speed | 21000 r/min | 22000 r/min |
| Max RCF | 52300 ×g | 53000 ×g |
| Max Capacity | 3000 ml | |
| Speed Accuracy | ±20 r/min | |
| Temperature Range | -20 °C ~+40 °C | |
| Temperature Accuracy | ±1 °C | |
| Shortest Acceleration Time | 1 min 30 s (0~21000 r/min) | 1 min 35 s (0~22000 r/min) |
| Shortest Deceleration Time | 1 min 40 s (21000~0 r/min) | 1 min 45 s (22000~0 r/min) |
| Refrigeration System | High-performance Compressor CFC-free Refrigeration System | |
| Timer Range | 0~23 h 59 min | |
| Motor | Microprocessor Control, Frequency Conversion Motor | |
| Noise | ≤60 dB(A) | |
| Power Supply | AC 220 V, 50–60 Hz, 30 A | |
| Dimensions (L × W × H) | 710 × 820 × 1200 mm | |
| Net Weight | 260 kg | |
| Model | iGL-21MC | iGL-22MC |
| Max Speed | 21000 r/min | 22000 r/min |
| Max RCF | 52300 ×g | 53000 ×g |
| Max Capacity | 3000 ml | |
| Speed Accuracy | ±20 r/min | |
| Temperature Range | -20 °C ~+40 °C | |
| Temperature Accuracy | ±1 °C | |
| Shortest Acceleration Time | 1 min 30 s (0~21000 r/min) | 1 min 35 s (0~22000 r/min) |
| Shortest Deceleration Time | 1 min 40 s (21000~0 r/min) | 1 min 45 s (22000~0 r/min) |
| Refrigeration System | High-performance Compressor CFC-free Refrigeration System | |
| Timer Range | 0~23 h 59 min | |
| Motor | Microprocessor Control, Frequency Conversion Motor | |
| Noise | ≤60 dB(A) | |
| Power Supply | AC 220 V, 50–60 Hz, 30 A | |
| Dimensions (L × W × H) | 710 × 820 × 1200 mm | |
| Net Weight | 260 kg | |
