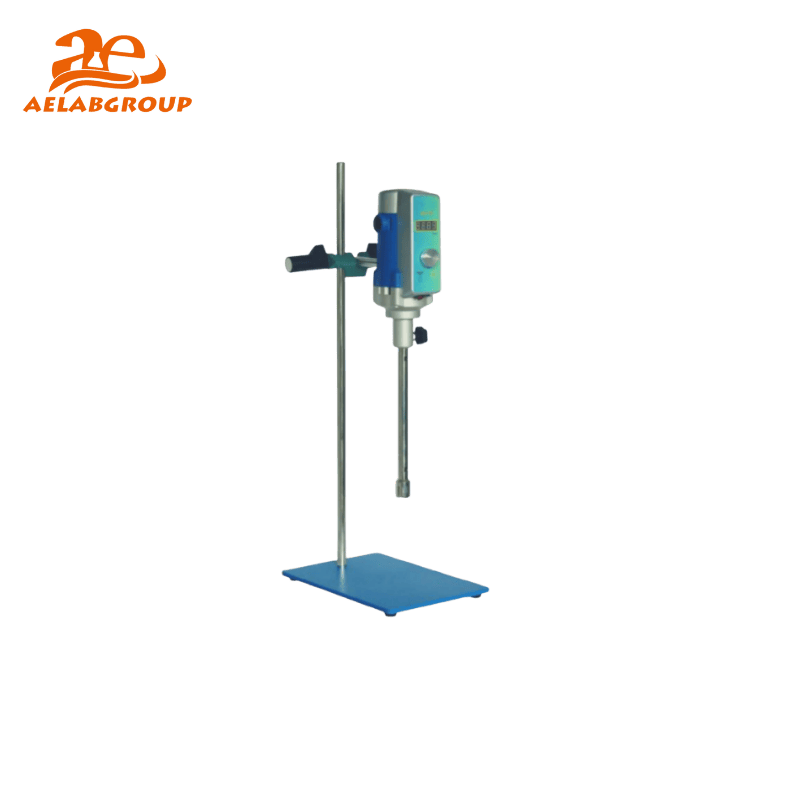

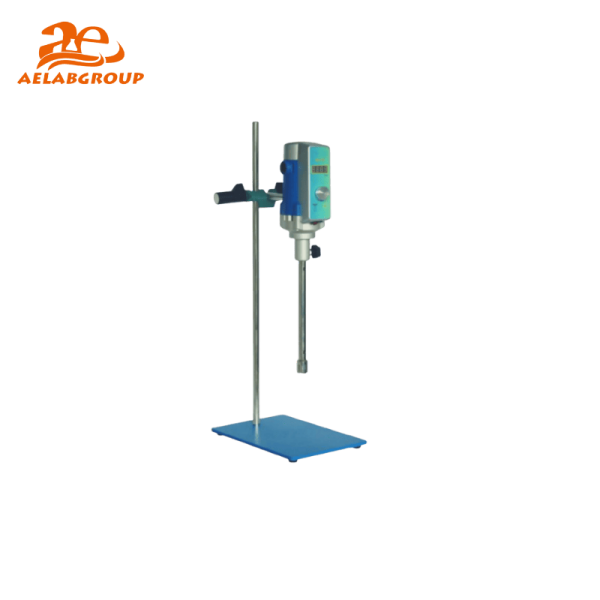

The Homogenizer AD25 is a high-performance unit designed for laboratory research and pilot-scale production. Operating on 220V AC with a 950W input and 570W output, it delivers a rated torque of 1.95 N·m and supports continuous operation under S1 working mode. Its speed range of 1000–28,000 rpm ensures efficient homogenization, emulsification, and dispersion across a variety of samples. Equipped with LED digital display, stepless control, dynamic speed detection, memory function, and overload protection, it provides both precision and safety during use.
The machine comes standard with a durable SS316L stainless steel working head, and optional sizes of 20, 25, and 30 mm expand treatment capacity from 50 ml up to 8000 ml, withstanding viscosities as high as 5000 mPa·s. The rotor reaches linear speeds of up to 22 m/s, ensuring rapid and uniform processing results. PTFE bearings and a maximum service temperature of 120°C further enhance its suitability for demanding laboratory conditions.
With a compact footprint (215 × 310 × 720 mm) and a lightweight design of 9 kg, the AD25 is easy to integrate into laboratory setups. Combining durability, flexibility, and advanced control features, it is an excellent solution for consistent and efficient sample processing in research and development.
Features：
Wide Speed Range: Adjustable from 1000 to 28,000 rpm with stepless control for precise operation.
Powerful Performance: 950W input power with 570W output and 1.95 N·m torque ensures efficient processing.
Versatile Capacity: Interchangeable working heads (20, 25, 30 mm) handle sample volumes from 50 ml to 8000 ml.
High Viscosity Handling: Capable of processing liquids up to 5000 mPa·s.
Durable Materials: SS316L stainless steel working head with PTFE bearings for corrosion resistance and easy cleaning.
Advanced Control: LED digital display, dynamic speed detection, speed memory function, and overload protection.
Thermal Resistance: Maximum service temperature up to 120°C for demanding laboratory applications.
Compact & Lightweight: Small footprint (215 × 310 × 720 mm) and only 9 kg for easy integration in lab setups.
Safe & Reliable: Continuous operation (S1 mode) with protective features for stable long-term use.
Specifications :
| Machine parameters | Details |
|---|---|
| Rated voltage(ACV) | 220±10% |
| Rated frequency(HZ) | 50/60 |
| Input power(W) | 950 |
| Output Power(W) | 570 |
| Rated torque(N.m) | 1.95 |
| Working mode(S) | S1 |
| Operation control method | combined control knob |
| Speed adjustment range (rpm) | 1000~28000 |
| Speed control type(extremely) | Infinity |
| Timing control range(min) | 1~1000 |
| Speed digital display | LED |
| Speed dynamic detection | Yes |
| Speed memory function | Yes |
| Overload protection function | Yes |
| Maximum torque of working head(N.cn) | 190 |
| Working head material | SS316L |
| Standard working head(piece) | 1 |
| Optional working head(G/F) | 20/25/30 |
| Allowable ambient temperature(℃) | No more than 40 |
| Allowable relative humidity(%) | No more than 80 |
| Machine appearance size(mm) | 215310720 |
| Machine weight(kg) | 9.0 |
| Machine parameters | Details |
|---|---|
| Rated voltage(ACV) | 220±10% |
| Rated frequency(HZ) | 50/60 |
| Input power(W) | 950 |
| Output Power(W) | 570 |
| Rated torque(N.m) | 1.95 |
| Working mode(S) | S1 |
| Operation control method | combined control knob |
| Speed adjustment range (rpm) | 1000~28000 |
| Speed control type(extremely) | Infinity |
| Timing control range(min) | 1~1000 |
| Speed digital display | LED |
| Speed dynamic detection | Yes |
| Speed memory function | Yes |
| Overload protection function | Yes |
| Maximum torque of working head(N.cn) | 190 |
| Working head material | SS316L |
| Standard working head(piece) | 1 |
| Optional working head(G/F) | 20/25/30 |
| Allowable ambient temperature(℃) | No more than 40 |
| Allowable relative humidity(%) | No more than 80 |
| Machine appearance size(mm) | 215310720 |
| Machine weight(kg) | 9.0 |
