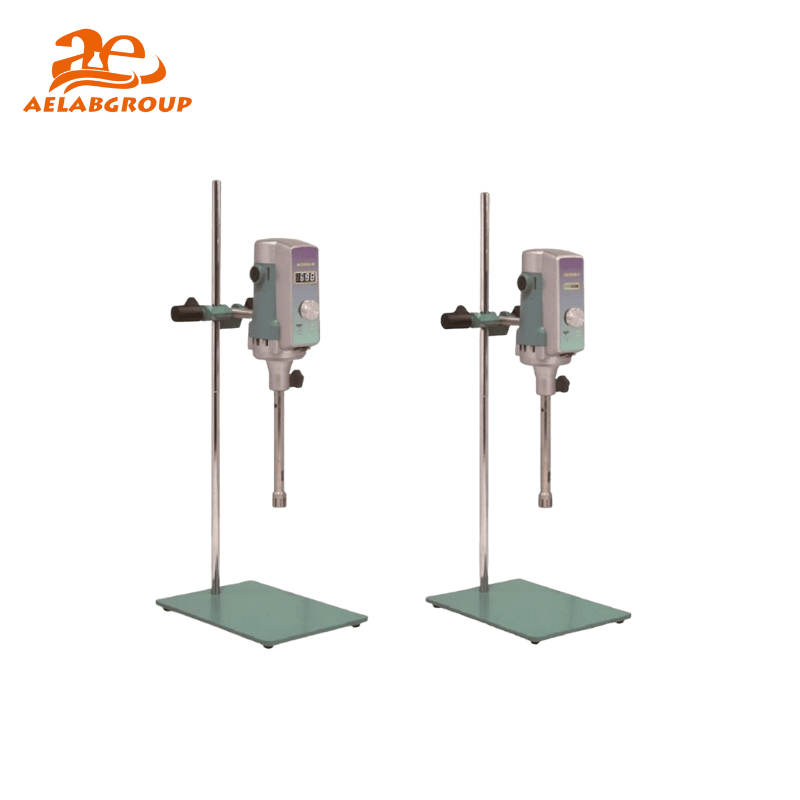

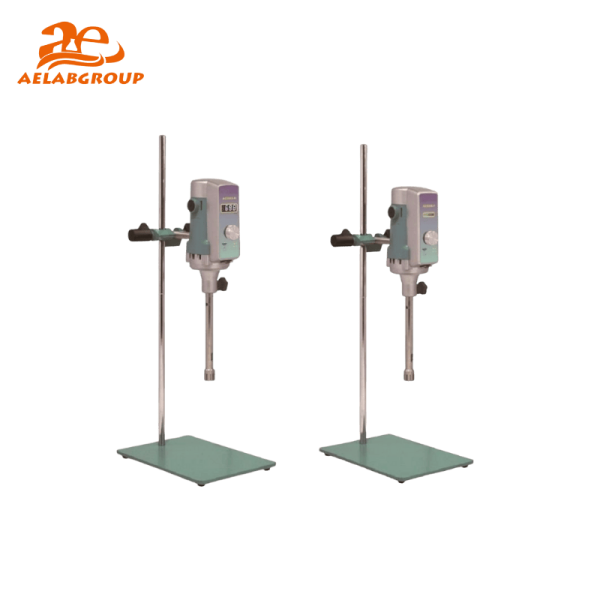

AELAB Homogenizer AD500S-H/P

The Homogenizer AD145S-P is a versatile handheld homogenizer designed for precision mixing, emulsification, and dispersion in laboratory environments. Operating on AC 220V with a rated frequency of 50/60 Hz, it utilizes a 160 W motor that outputs 120 W of effective power, providing a maximum torque of 3.95 N·cm. Its speed can be controlled through a simple turntable dial, offering six gear settings with no-load speeds ranging from 5,000 to 35,000 rpm. This wide range, combined with a rotor linear velocity of up to 13 m/s, ensures uniform and efficient processing across various sample types.

Constructed with an SS316L stainless steel working head and PTFE bearings, the AD145S-P offers excellent corrosion resistance, mechanical strength, and long service life. The instrument supports interchangeable heads in 6G, 8G, and 10G sizes, enabling treatment capacities from 0.2 ml up to 250 ml, and handling viscosities up to 200 cP. Each head is designed for stable performance, with immersion depths that ensure flexibility across different vessel sizes. The maximum service temperature of 120°C further expands its application range to more demanding laboratory conditions.

Measuring 380 × 80 × 50 mm and weighing only 0.85 kg, the AD145S-P is compact, portable, and easy to operate, making it highly practical for laboratories where space and flexibility are important. Its balance of lightweight design, powerful performance, and reliable construction makes it an excellent choice for researchers seeking consistent and efficient homogenization results in daily experimental work.
