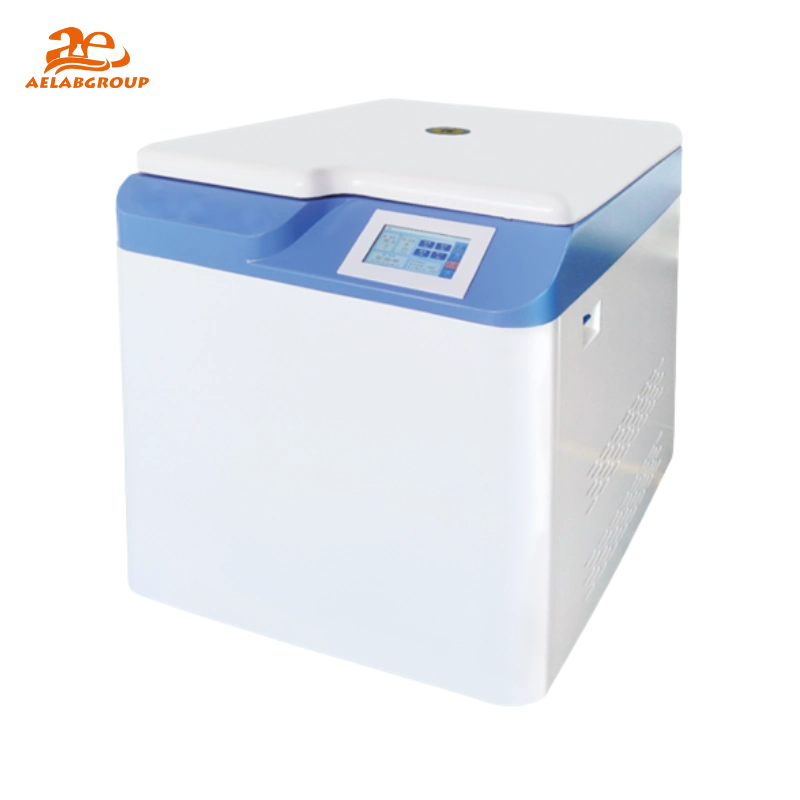

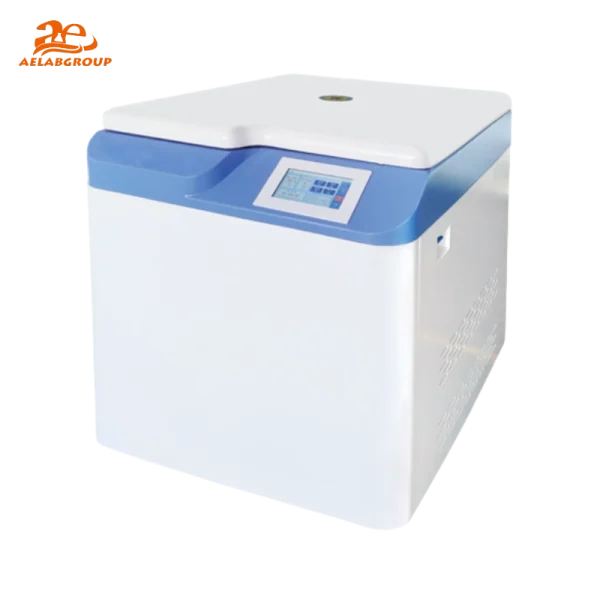

The AELAB iDL-6MC floor type large capacity refrigerated centrifuge is engineered for laboratories requiring controlled low-temperature centrifugal separation of large-volume samples. The AELAB iDL-6MC centrifuge integrates microprocessor control, direct drive motor technology, and an environmentally friendly R404a refrigeration system to ensure stable performance and operational safety.
The AELAB iDL-6MC refrigerated centrifuge features automatic rotor identification, multi-level protection systems, and programmable operation to support consistent and repeatable centrifugation processes across clinical, industrial, and research environments.
The AELAB iDL-6MC centrifuge adopts a floor-standing reinforced frame with integrated wheels for short-distance movement and fixation. The housing supports a stainless steel centrifugation chamber, electric door lid control with backup power, and a high-performance compressor-based refrigeration system for uniform temperature regulation.
The AELAB iDL-6MC refrigerated centrifuge separates samples by applying controlled centrifugal force generated by a direct drive motor. The microprocessor regulates speed, acceleration, deceleration, and temperature, ensuring precise centrifugal separation while maintaining sample integrity under refrigerated conditions.
The AELAB iDL-6MC centrifuge supports optional USB connectivity for data storage and transfer to external computers. Stored operational parameters and test data can be exported for laboratory documentation and GLP data management.
The AELAB iDL-6MC refrigerated centrifuge is suitable for biological separation, pharmaceutical processing, blood fractionation, biochemical research, environmental testing, and industrial sample preparation where large-volume and temperature-controlled centrifugation is required.
The AELAB iDL-6MC centrifuge is manufactured under ISO-aligned quality systems and designed for CE-compliant electrical safety. Integrated self-diagnostic protection against imbalance, overspeed, and over-temperature supports reliable operation and traceable laboratory quality control.
Specifications :
| Model | iDL-6MC |
| Maximum Speed (r/min) | 6000 |
| Maximum RCF (× g) | 6680 |
| Maximum Capacity | 6 × 1000 mL |
| Speed Accuracy | ±10 r/min |
| Timer Range | 0–99 h 59 min |
| Temperature Range | -20 ~ +40 °C |
| Control & Drive | Microprocessor Control / Direct Drive |
| Acceleration / Deceleration | 0–9 (Grade) |
| Program Storage | 99 |
| Motor Power | 3.8 kW |
| Refrigerator Power | 2.2 kW |
| Noise | ≤60 dB(A) |
| Power Supply | AC 220 V / 380 V, 50–60 Hz, 35 A |
| Weight (Without Rotor) | 260 kg |
| Dimensions (L × W × H) | 730 × 840 × 1000 mm |
| Refrigeration System | High-performance Compressor, CFC-free Refrigeration System |

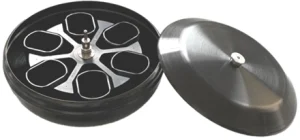

| Rotor Options |
|
| Model | iDL-6MC |
| Maximum Speed (r/min) | 6000 |
| Maximum RCF (× g) | 6680 |
| Maximum Capacity | 6 × 1000 mL |
| Speed Accuracy | ±10 r/min |
| Timer Range | 0–99 h 59 min |
| Temperature Range | -20 ~ +40 °C |
| Control & Drive | Microprocessor Control / Direct Drive |
| Acceleration / Deceleration | 0–9 (Grade) |
| Program Storage | 99 |
| Motor Power | 3.8 kW |
| Refrigerator Power | 2.2 kW |
| Noise | ≤60 dB(A) |
| Power Supply | AC 220 V / 380 V, 50–60 Hz, 35 A |
| Weight (Without Rotor) | 260 kg |
| Dimensions (L × W × H) | 730 × 840 × 1000 mm |
| Refrigeration System | High-performance Compressor, CFC-free Refrigeration System |
| Rotor Options |
|
