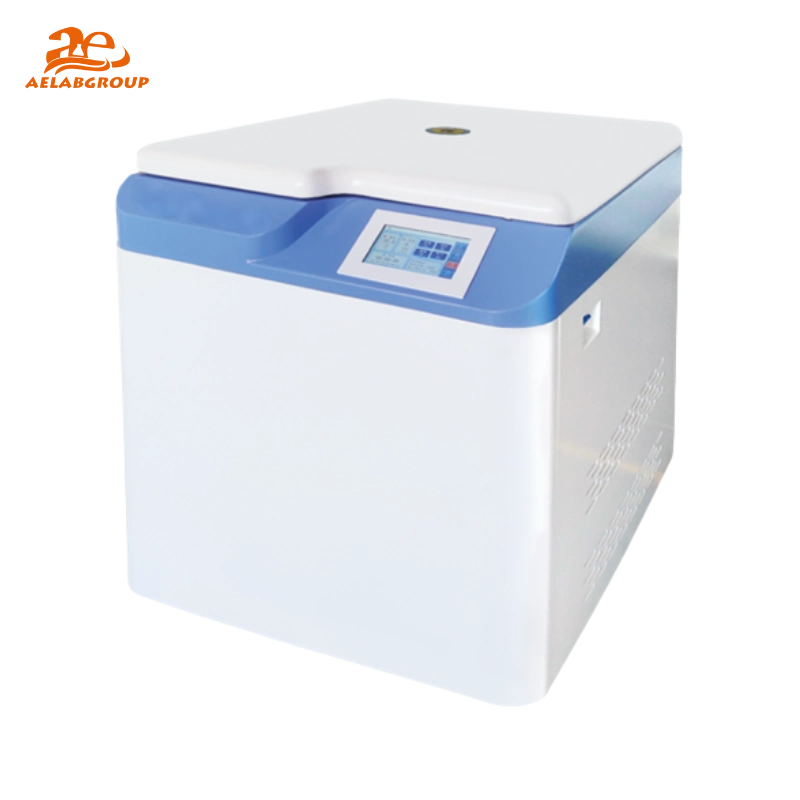

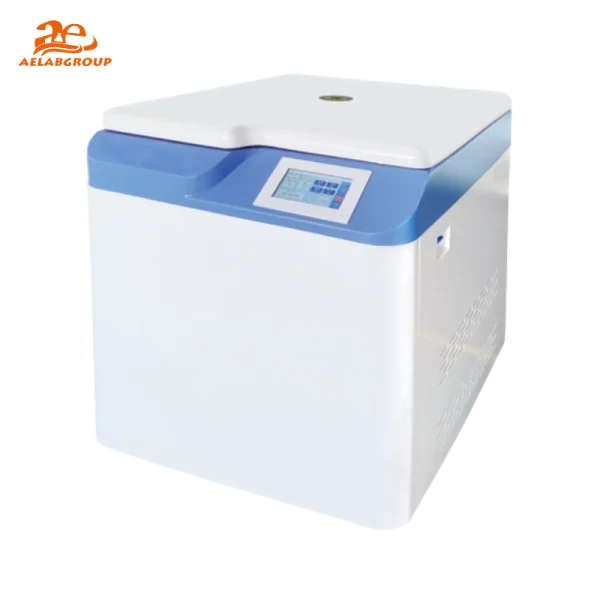

The AELAB iGL-10MC floor-type high speed refrigerated centrifuge provides controlled, high-capacity centrifugal separation for temperature-sensitive laboratory samples. Designed for continuous analytical and preparative workflows, the system combines microprocessor control, secure refrigeration, and programmable operation for stable and reproducible results.
The AELAB iGL-10MC integrates automated protection systems, frequency inverter motor technology, and CFC-free refrigeration to ensure operational safety, energy efficiency, and long-term performance in research, clinical, and industrial laboratories.
The AELAB iGL-10MC floor-type centrifuge features a reinforced laboratory-grade enclosure with integrated mobility wheels for short-distance relocation and locking stability. The system incorporates an electric door lid with powered opening and closing, supported by backup power to ensure safe access during power interruption.
The AELAB iGL-10MC centrifuge separates samples by applying controlled centrifugal force generated by a high-efficiency frequency inverter motor. The microprocessor regulates rotor speed, acceleration, braking, and chamber temperature, ensuring accurate RCF delivery while maintaining defined thermal conditions for sensitive biological and chemical samples.
The AELAB iGL-10MC refrigerated centrifuge supports optional USB data storage and PC connectivity for parameter recording and data transfer. The system enables structured program storage and daily operation presets, supporting laboratory documentation and GLP-aligned workflows.
The AELAB iGL-10MC floor-type high speed refrigerated centrifuge is used for sample separation in pharmaceutical research, biotechnology laboratories, blood banks, environmental testing, food analysis, and material science workflows requiring controlled high-RCF and low-temperature centrifugation.
The AELAB iGL-10MC is manufactured under controlled quality systems and supports ISO-style laboratory operation. Integrated safety protections, controlled refrigeration, and programmable operation contribute to consistent analytical performance and traceable centrifugation results.
Specifications :
| Parameter | iGL-10MC |
|---|---|
| Maximum Speed / RCF | 10000 r/min / 18300 ×g |
| Speed Accuracy | ±10 r/min |
| Temperature Range | −20 °C to +40 °C (±1 °C) |
| Refrigeration System | High-performance Compressor, CFC-free Refrigeration System |
| Timer Range | 0–23 h 59 min |
| Motor | Microprocessor Control, Frequency Inverter Motor |
| Noise | ≤60 dB(A) |
| Power Supply | AC 220 V, 50–60 Hz, 30 A |
| Dimensions (L × W × H) | 710 × 820 × 1000 mm |
| Net Weight | 260 kg |
| Rotor No. | Maximum Capacity | Maximum Speed | Maximum RCF |
|---|---|---|---|
| No.1 AR | 6 × 300 mL | 10000 r/min | 18300 ×g |
| No.2 AR | 6 × 500 mL | 8000 r/min | 11620 ×g |
| No.3 SR | 6 × 1000 mL | 7000 r/min | 11500 ×g |
| Parameter | iGL-10MC |
|---|---|
| Maximum Speed / RCF | 10000 r/min / 18300 ×g |
| Speed Accuracy | ±10 r/min |
| Temperature Range | −20 °C to +40 °C (±1 °C) |
| Refrigeration System | High-performance Compressor, CFC-free Refrigeration System |
| Timer Range | 0–23 h 59 min |
| Motor | Microprocessor Control, Frequency Inverter Motor |
| Noise | ≤60 dB(A) |
| Power Supply | AC 220 V, 50–60 Hz, 30 A |
| Dimensions (L × W × H) | 710 × 820 × 1000 mm |
| Net Weight | 260 kg |
| Rotor No. | Maximum Capacity | Maximum Speed | Maximum RCF |
|---|---|---|---|
| No.1 AR | 6 × 300 mL | 10000 r/min | 18300 ×g |
| No.2 AR | 6 × 500 mL | 8000 r/min | 11620 ×g |
| No.3 SR | 6 × 1000 mL | 7000 r/min | 11500 ×g |
