The AELAB iTGD Intelligent High & Low Speed Refrigerated Universal Centrifuge performs stable centrifugal separation for laboratory testing, clinical diagnostics, and research applications. Using microprocessor control and frequency-conversion motor technology, the AELAB iTGD centrifuge regulates speed, temperature, and timing with high repeatability.
Equipped with an LCD touch display and advanced safety systems, the AELAB iTGD centrifuge supports multiple rotor configurations while maintaining accurate refrigerated conditions for temperature-sensitive samples.
The AELAB iTGD centrifuge is constructed with a rigid laboratory-grade enclosure and integrated refrigeration system. The frequency-conversion motor operates without carbon dust generation, reducing internal contamination. An electrically controlled door lid with emergency release ensures safe operation during power interruption.

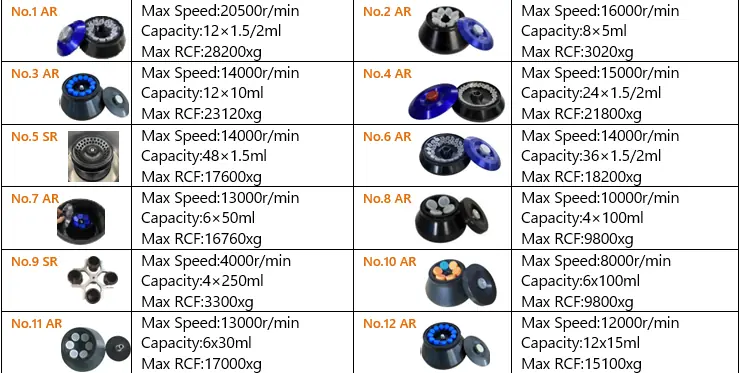

The AELAB iTGD centrifuge applies controlled centrifugal force by rotating samples at programmed speeds while maintaining chamber temperature between −20 °C and 40 °C. Automatic rotor identification prevents overspeed operation and ensures correct relative centrifugal force for each rotor type.
The AELAB iTGD centrifuge integrates a standalone LCD touch interface for direct parameter input and monitoring. Program recall functionality supports standardized laboratory workflows and repeatable testing procedures.
The AELAB iTGD refrigerated universal centrifuge is suitable for sample separation in clinical diagnostics, biochemical analysis, pharmaceutical research, food testing laboratories, and biological research facilities requiring controlled temperature centrifugation.
The AELAB iTGD centrifuge is designed for controlled laboratory environments, supporting standardized testing workflows, rotor safety protection, and repeatable centrifugal performance suitable for regulated laboratory operations.
Specifications :
| Model | iTGD-16MC | iTGD-18MC | iTGD-20MC | Speed Accuracy | ±10 r/min |
|---|---|---|---|---|---|
| Max Speed | 16500 r/min | 18500 r/min | 20500 r/min | Timer Range | 1 s ~ 99 h 59 min 59 s |
| Max RCF | 21800×g | 23500×g | 28200×g | Temperature Range | −20 °C ~ 40 °C |
| Display | LCD Touch Display | Max Capacity | 4 × 250 ml | ||
| Noise | ≤60 dB(A) | Power Supply | AC 220 V & 110 V, 50 Hz, 10 A | ||
| Weight | 85 kg | Dimension | 720 × 500 × 420 mm | ||
| Model | iTGD-16MC | iTGD-18MC | iTGD-20MC | Speed Accuracy | ±10 r/min |
|---|---|---|---|---|---|
| Max Speed | 16500 r/min | 18500 r/min | 20500 r/min | Timer Range | 1 s ~ 99 h 59 min 59 s |
| Max RCF | 21800×g | 23500×g | 28200×g | Temperature Range | −20 °C ~ 40 °C |
| Display | LCD Touch Display | Max Capacity | 4 × 250 ml | ||
| Noise | ≤60 dB(A) | Power Supply | AC 220 V & 110 V, 50 Hz, 10 A | ||
| Weight | 85 kg | Dimension | 720 × 500 × 420 mm | ||
