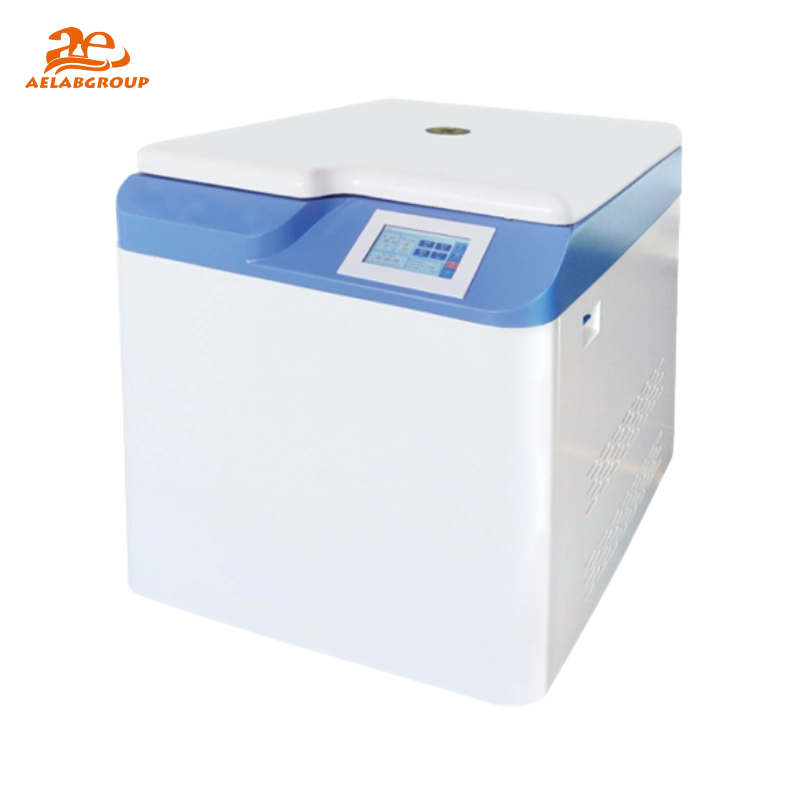

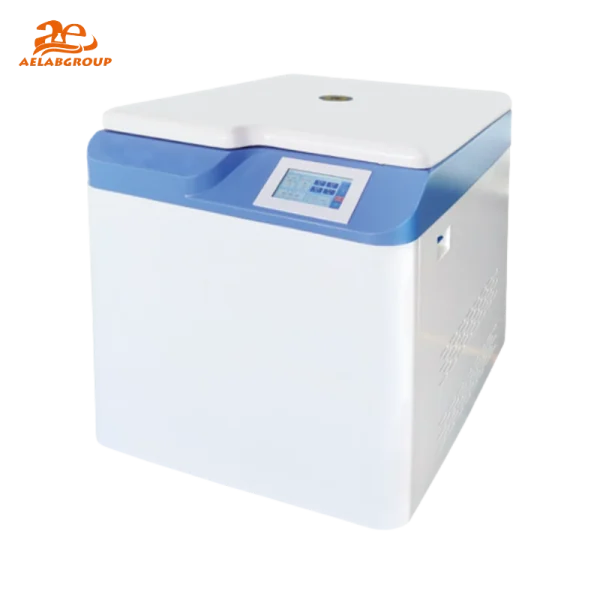

The AELAB iDL-7MC Large Capacity Refrigerated Centrifuge is engineered for high-throughput centrifugation where precise temperature control and operational safety are critical. Designed for clinical diagnostics, blood banks, and biopharmaceutical processing, the AELAB iDL-7MC delivers stable rotational performance with reliable cooling efficiency.
Equipped with a microprocessor-controlled system and high-efficiency frequency inverter motor, the AELAB iDL-7MC refrigerated centrifuge supports programmable operation, automatic rotor recognition, and integrated protection against imbalance, over-speed, and over-temperature conditions.
The AELAB iDL-7MC refrigerated centrifuge features a reinforced structural frame with integrated vibration damping and a sealed refrigeration chamber. The system incorporates a high-performance CFC-free compressor and environmentally friendly R404a refrigerant. A large touchscreen control panel allows operation with laboratory gloves, while electrically controlled lid locking ensures secure operation.
The AELAB iDL-7MC centrifuge separates components based on density differences under controlled centrifugal force. The microprocessor regulates rotational speed, acceleration, deceleration, and chamber temperature, ensuring consistent sample separation while maintaining sample integrity across extended centrifugation cycles.
The AELAB iDL-7MC refrigerated centrifuge supports optional USB data storage and download via PC connection. Backup power enables controlled lid opening during unexpected power interruption, supporting GLP-compliant laboratory documentation workflows.
The AELAB iDL-7MC Large Capacity Refrigerated Centrifuge is widely used in blood bank centers, biotechnology laboratories, chemistry laboratories, and biopharmaceutical production facilities. Typical applications include blood component separation, bulk sample clarification, cell harvesting, and temperature-sensitive biological processing.
The AELAB iDL-7MC centrifuge is manufactured under ISO-aligned quality systems and supports CE-compliant electrical safety design. Integrated calibration control, diagnostic protection systems, and traceable operational parameters support GLP-oriented laboratory quality assurance programs.
Specifications :
| Model | iDL-7MC |
| Maximum Speed | 8000 rpm |
| Maximum RCF | 11620 × g |
| Maximum Capacity | 6 × 1000 mL |
| Speed Accuracy | ±10r/min |
| Timer Range | 0–99 h 59 min |
| Temperature Range | −20 ~ +40 °C |
| Acceleration / Deceleration Rate | 0–9 Grade |
| control&drive | Microprocessor Control / Direct Drive |
| Program Storage | 99 Programs |
| Motor Power | 4 kW |
| Refrigeration Power | 2.2 kW |
| Noise Level | ≤60 dB(A) |
| Power Supply | AC 220 V / 380 V, 50 Hz, 35 A |
| Weight (Without Rotor) | 280 kg |
| Dimensions (L × W × H) | 730 × 840 × 100 mm |
| Refrigeration System | Big Brand High-Performance Compressor, CFC-Free Refrigeration System |
| Rotor Configuration | No.1 AR 4 × 1000 mL (8000 rpm, 11620 × g) No.2 AR 6 × 1000 mL (7000 rom, 11500 × g) |
| Model | iDL-7MC |
| Maximum Speed | 8000 rpm |
| Maximum RCF | 11620 × g |
| Maximum Capacity | 6 × 1000 mL |
| Speed Accuracy | ±10r/min |
| Timer Range | 0–99 h 59 min |
| Temperature Range | −20 ~ +40 °C |
| Acceleration / Deceleration Rate | 0–9 Grade |
| control&drive | Microprocessor Control / Direct Drive |
| Program Storage | 99 Programs |
| Motor Power | 4 kW |
| Refrigeration Power | 2.2 kW |
| Noise Level | ≤60 dB(A) |
| Power Supply | AC 220 V / 380 V, 50 Hz, 35 A |
| Weight (Without Rotor) | 280 kg |
| Dimensions (L × W × H) | 730 × 840 × 100 mm |
| Refrigeration System | Big Brand High-Performance Compressor, CFC-Free Refrigeration System |
| Rotor Configuration | No.1 AR 4 × 1000 mL (8000 rpm, 11620 × g) No.2 AR 6 × 1000 mL (7000 rom, 11500 × g) |
