The AELAB AE-LSC Series low speed centrifuge is designed for clinical, biochemical, and medical laboratory separation of serum, plasma, urine, and fecal samples. It provides dependable centrifugation performance for diagnostic and research workflows, ensuring accurate and reproducible separation results.
These centrifuges are essential in medical laboratories, blood banks, and hospital research departments for efficient processing of biological fluids and clinical specimens.

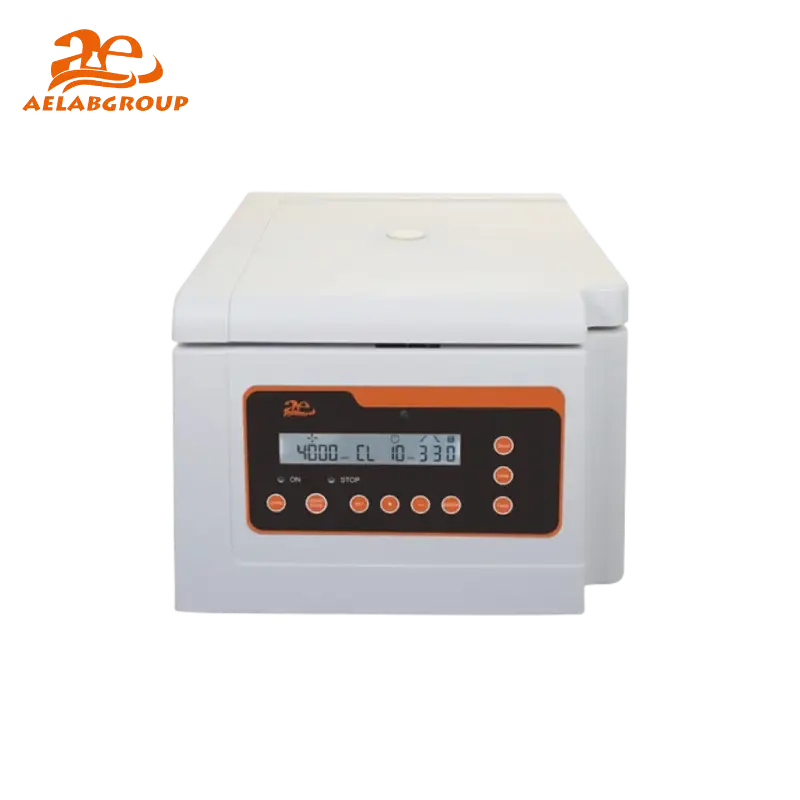

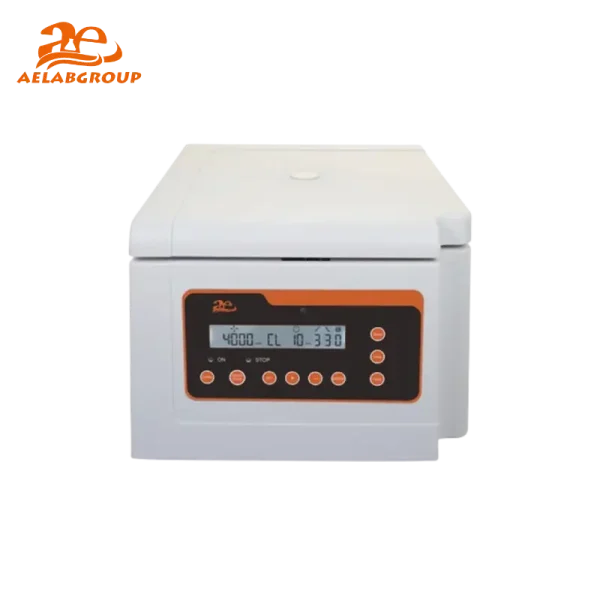

The AE-LSC-4C and AE-LSC-4E models feature a compact benchtop design constructed with high-grade polymer housing for vibration stability and easy cleaning. The brushless DC motor ensures quiet, maintenance-free operation, while the durable swing or angle rotors accommodate various tube sizes. The AE-LSC-4C uses an LCD control interface, and the AE-LSC-4E employs an LED display for simplified parameter setting.
The centrifuge operates within a 300–4000 rpm range, achieving centrifugal forces up to 2500×g. It separates biological fluids through controlled rotational acceleration, enabling precise stratification of serum, plasma, or cell suspensions. Pre-programmed protocols for blood, urine, and fecal analysis support automatic internal diagnosis and stable motor speed regulation.
Both models include intelligent electronic control systems with automatic fault detection. The AE-LSC Series supports internal parameter storage and diagnostic alerts for GLP-compliant laboratory management.
| Model | Specifications |
|---|---|
| AE-LSC-4C | 500–4000 rpm, 2500×g, LCD display, Swing 6×15 ml or 4×50 ml, 14.5 kg |
| AE-LSC-4E | 300–4000 rpm, 1900×g, LED display, Angle 8×15 ml or 10 ml×12, 9.2 kg |
The AE-LSC Series is suitable for clinical diagnostics, biochemical analysis, and routine sample separation in medical laboratories. Common applications include serum and plasma preparation, PRP extraction, urine sediment analysis, and fecal matter testing in hospitals, clinics, and research institutions.
Manufactured under ISO and CE quality standards, the AELAB AE-LSC Series meets GLP requirements for laboratory equipment. Each unit undergoes full-speed calibration and safety verification prior to dispatch, ensuring stable and reliable centrifugation performance.

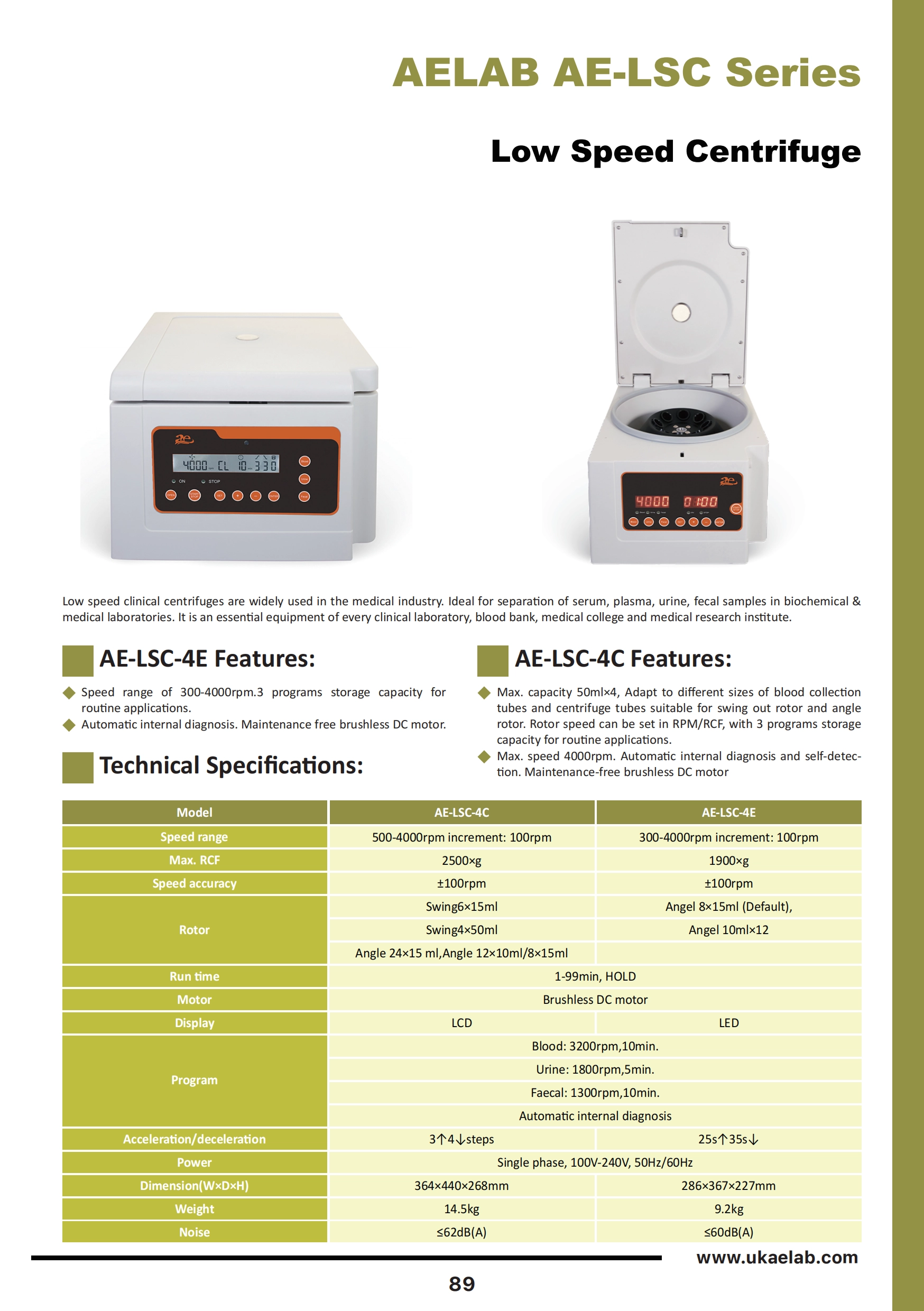

Specifications :
| Model | AE-LSC-4C | AE-LSC-4E | ||||||
|---|---|---|---|---|---|---|---|---|
| Speed range | 500–4000 rpm (increment: 100 rpm) | 300–4000 rpm (increment: 100 rpm) | ||||||
| Max. RCF | 2500 × g | 1900 × g | ||||||
| Speed accuracy | ±100 rpm | |||||||
| Rotor | Swing 6×15 ml / Swing 4×50 ml Angle 24×15 ml / Angle 12×10 ml / 8×15 ml |
Angle 8×15 ml (Default) Angle 10 ml×12 |
||||||
| Run time | 1–99 min, HOLD | |||||||
| Motor | Brushless DC motor | |||||||
| Display | LCD | LED | ||||||
| Program | Blood: 3200 rpm, 10 min Urine: 1800 rpm, 5 min Fecal: 1300 rpm, 10 min Automatic internal diagnosis |
|||||||
| Acceleration / deceleration | 3↑ / 4↓ steps | 25 s↑ / 35 s↓ | ||||||
| Power | Single phase, 100V–240V, 50Hz / 60Hz | Single phase, 100V–240V, 50Hz / 60Hz | ||||||
| Dimensions (W×D×H) | 364×440×268 mm | 286×367×227 mm | ||||||
| Weight | 14.5 kg | 9.2 kg | ||||||
| Noise | ≤62 dB(A) | ≤60 dB(A) | ||||||
| Model | AE-LSC-4C | AE-LSC-4E | ||||||
|---|---|---|---|---|---|---|---|---|
| Speed range | 500–4000 rpm (increment: 100 rpm) | 300–4000 rpm (increment: 100 rpm) | ||||||
| Max. RCF | 2500 × g | 1900 × g | ||||||
| Speed accuracy | ±100 rpm | |||||||
| Rotor | Swing 6×15 ml / Swing 4×50 ml Angle 24×15 ml / Angle 12×10 ml / 8×15 ml |
Angle 8×15 ml (Default) Angle 10 ml×12 |
||||||
| Run time | 1–99 min, HOLD | |||||||
| Motor | Brushless DC motor | |||||||
| Display | LCD | LED | ||||||
| Program | Blood: 3200 rpm, 10 min Urine: 1800 rpm, 5 min Fecal: 1300 rpm, 10 min Automatic internal diagnosis |
|||||||
| Acceleration / deceleration | 3↑ / 4↓ steps | 25 s↑ / 35 s↓ | ||||||
| Power | Single phase, 100V–240V, 50Hz / 60Hz | Single phase, 100V–240V, 50Hz / 60Hz | ||||||
| Dimensions (W×D×H) | 364×440×268 mm | 286×367×227 mm | ||||||
| Weight | 14.5 kg | 9.2 kg | ||||||
| Noise | ≤62 dB(A) | ≤60 dB(A) | ||||||
