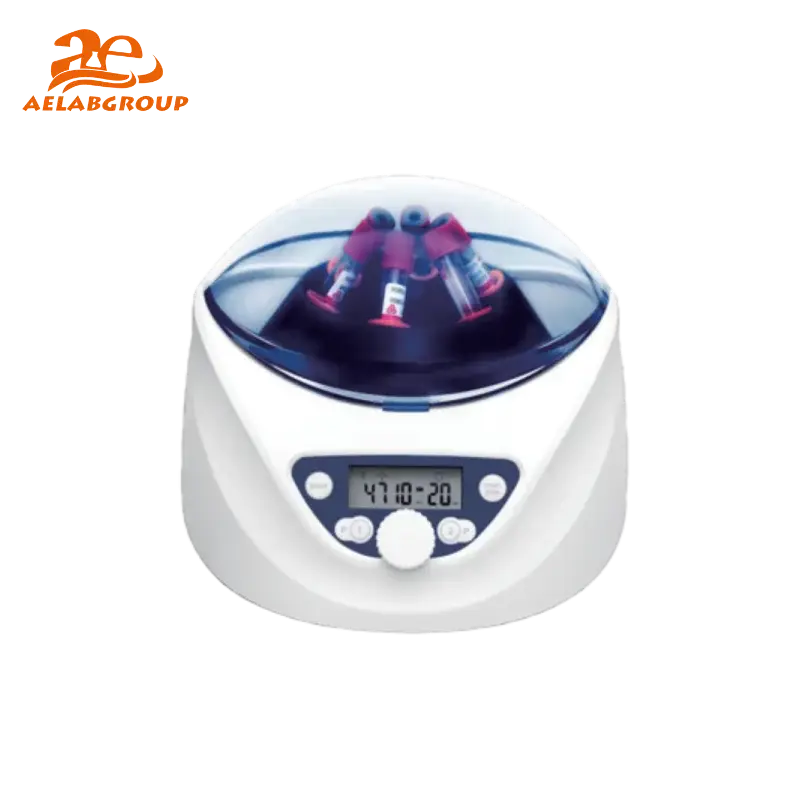

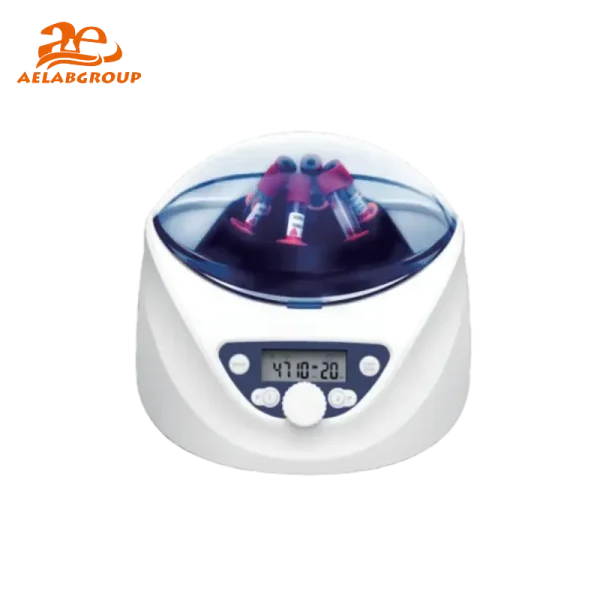

The AELAB AE-LSC Series Low Speed PRP Centrifuge is designed for precision plasma, PRF, and CGF separation in clinical and laboratory environments. It combines compact structure with intelligent digital control for reproducible sample processing and reliable component fractionation.
Both AE-LSC-5 and AE-LSC-4.5 models feature programmable operation, high-efficiency brushless DC motor, and user-friendly LCD interface. The built-in microprocessor maintains precise speed and time regulation for consistent results across biomedical and cosmetic PRP workflows.
The AELAB AE-LSC Series centrifuges feature a durable ABS housing, transparent lid, and maintenance-free brushless DC motor. The system offers smooth acceleration, reduced vibration, and intelligent lid interlock for enhanced operational safety. A compact 300×240×180 mm footprint ensures bench-top compatibility in laboratories and clinics.
During operation, the rotor accelerates at programmed speeds between 300–5000 rpm, enabling controlled sedimentation of cellular components. Users can set parameters by RPM or RCF, store programs, and monitor run time through the LCD interface. The AE-LSC-5 supports dual preloaded programs for fast operation, while AE-LSC-4.5 includes up to nine custom memory slots for PRP/PRF/CGF applications.
The AE-LSC Series supports program memory, automatic data recall, and speed/RCF switching. Sound-alert and internal diagnostic functions provide operational assurance. The centrifuges can be integrated into GLP-compliant laboratory workflows for traceable operation records.
| Model | Specifications |
|---|---|
| AE-LSC-5 | 300–5000 rpm, 2600×g, 6×15 mL rotor, 70 W |
| AE-LSC-4.5 | 300–4500 rpm, 2490×g, 12×10 mL rotor, 3A 70 W |
The AELAB AE-LSC Series centrifuges are used for preparation of Platelet-Rich Plasma (PRP), Platelet-Rich Fibrin (PRF), and Concentrated Growth Factor (CGF) in clinical, cosmetic, and dental applications. They are also suitable for general laboratory separation of serum, plasma, and cell suspensions in biological, veterinary, and research facilities.
All AELAB centrifuges conform to ISO, CE, and GLP standards. Each unit undergoes multi-point speed calibration and electronic balance verification. Internal diagnostics, overspeed detection, and door interlock mechanisms ensure safe and consistent performance.

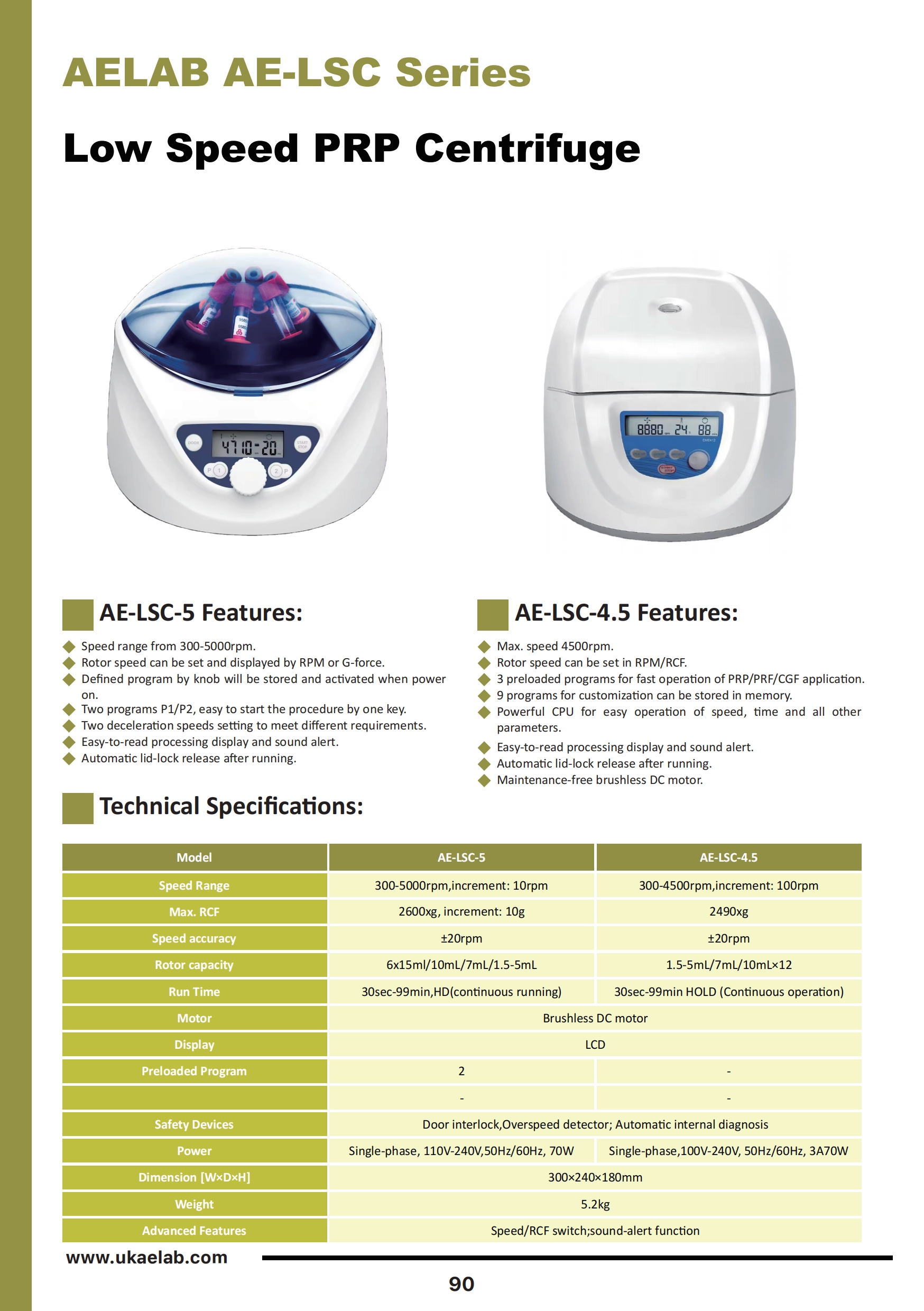

Specifications :
| Model | AE-LSC-5 | AE-LSC-4.5 |
|---|---|---|
| Speed Range | 300–5000 rpm, increment: 10 rpm | 300–4500 rpm, increment: 100 rpm |
| Max. RCF | 2600 × g, increment: 10 g | 2490 × g |
| Speed Accuracy | ±20 rpm | ±20 rpm |
| Rotor Capacity | 6 × 15 mL / 10 mL / 7 mL / 1.5–5 mL | 1.5–5 mL / 7 mL / 10 mL × 12 |
| Run Time | 30 sec–99 min, HD (continuous running) | 30 sec–99 min HOLD (continuous operation) |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LCD |
| Preloaded Program | 2 | – |
| Safety Devices | Door interlock; Overspeed detector; Automatic internal diagnosis | Door interlock; Overspeed detector; Automatic internal diagnosis |
| Power | Single-phase, 110 V–240 V, 50 Hz / 60 Hz, 70 W | Single-phase, 100 V–240 V, 50 Hz / 60 Hz, 3A 70 W |
| Dimension (W×D×H) | 300 × 240 × 180 mm | 300 × 240 × 180 mm |
| Weight | 5.2 kg | 5.2 kg |
| Advanced Features | Speed/RCF switch; sound-alert function | Speed/RCF switch; sound-alert function |
| Model | AE-LSC-5 | AE-LSC-4.5 |
|---|---|---|
| Speed Range | 300–5000 rpm, increment: 10 rpm | 300–4500 rpm, increment: 100 rpm |
| Max. RCF | 2600 × g, increment: 10 g | 2490 × g |
| Speed Accuracy | ±20 rpm | ±20 rpm |
| Rotor Capacity | 6 × 15 mL / 10 mL / 7 mL / 1.5–5 mL | 1.5–5 mL / 7 mL / 10 mL × 12 |
| Run Time | 30 sec–99 min, HD (continuous running) | 30 sec–99 min HOLD (continuous operation) |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LCD |
| Preloaded Program | 2 | – |
| Safety Devices | Door interlock; Overspeed detector; Automatic internal diagnosis | Door interlock; Overspeed detector; Automatic internal diagnosis |
| Power | Single-phase, 110 V–240 V, 50 Hz / 60 Hz, 70 W | Single-phase, 100 V–240 V, 50 Hz / 60 Hz, 3A 70 W |
| Dimension (W×D×H) | 300 × 240 × 180 mm | 300 × 240 × 180 mm |
| Weight | 5.2 kg | 5.2 kg |
| Advanced Features | Speed/RCF switch; sound-alert function | Speed/RCF switch; sound-alert function |
