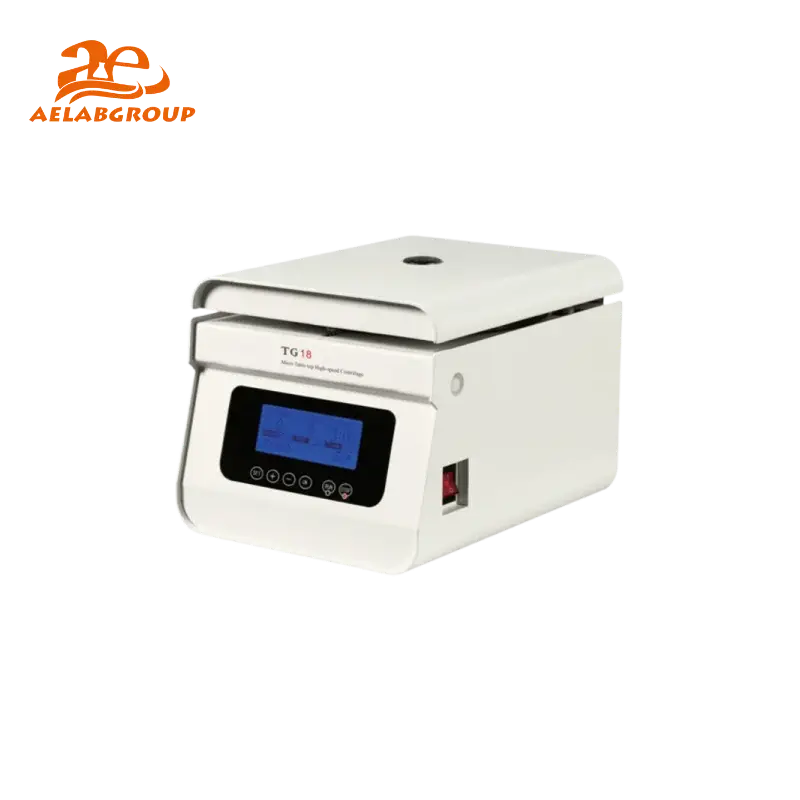

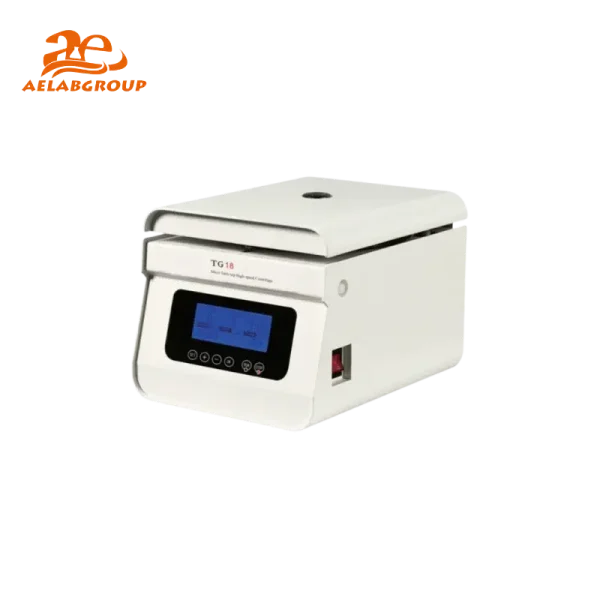

The AELAB TG18 Micro High-Speed Centrifuge is a compact and efficient benchtop unit designed for biotechnology, PCR, life science, and clinical laboratories. With its advanced converter motor and intuitive LCD touch display, the TG18 enables precise control of centrifugation parameters and consistent performance across various sample types.
Constructed for routine and advanced sample analysis in hospitals, institutional, and research environments, this model supports a wide range of rotor heads and adapters, making it versatile for microtube and capillary centrifugation.
The AELAB TG18 features a stainless steel chamber with a compact, corrosion-resistant frame. The unit incorporates an LCD touch interface for precise control and monitoring of speed, RCF, and time. A safety interlock system prevents the lid from opening during operation, while the imbalance sensor ensures stability at high speeds. The emergency lid release provides safe sample recovery in power-off conditions.
The centrifuge operates by accelerating samples up to 18,500 rpm to achieve a relative centrifugal force of 19,920×g. The converter motor drives a range of compatible rotors, supporting microtubes from 0.2 ml to 5 ml. Speed and timer settings are adjustable through the digital LCD control panel for accurate and repeatable separation of biological, clinical, or molecular samples.
The AELAB TG18 is equipped with intuitive digital controls and can interface with AELAB GLP-compliant data management software for speed/time logging and performance tracking. USB and optional printer connections are available for result documentation and traceability.

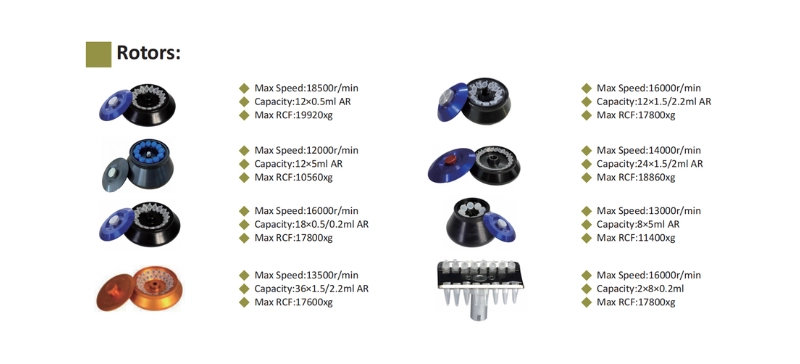

| Rotor Type | Max Speed (r/min) | Capacity | Max RCF (×g) |
|---|---|---|---|
| Angle Rotor | 18500 | 12×0.5 ml | 19920 |
| Angle Rotor | 12000 | 12×5 ml | 10560 |
| Angle Rotor | 16000 | 18×0.5/0.2 ml | 17800 |
| Angle Rotor | 13500 | 36×1.5/2.2 ml | 17600 |
| Angle Rotor | 16000 | 12×1.5/2.2 ml | 17800 |
| Angle Rotor | 14000 | 24×1.5/2.2 ml | 18860 |
| Angle Rotor | 13000 | 8×5 ml | 11400 |
| Adapter Rotor | 16000 | 2×8×0.2 ml | 17800 |
The AELAB TG18 Micro High-Speed Centrifuge is suitable for biotechnology, molecular biology, PCR product purification, DNA/RNA extraction, and clinical diagnostic analysis. It is widely used in hospital laboratories, pharmaceutical quality control, research institutes, and academic labs.
All AELAB centrifuges are manufactured under ISO and CE standards. Each unit undergoes precision calibration and electrical safety testing to meet GLP and international laboratory compliance requirements.

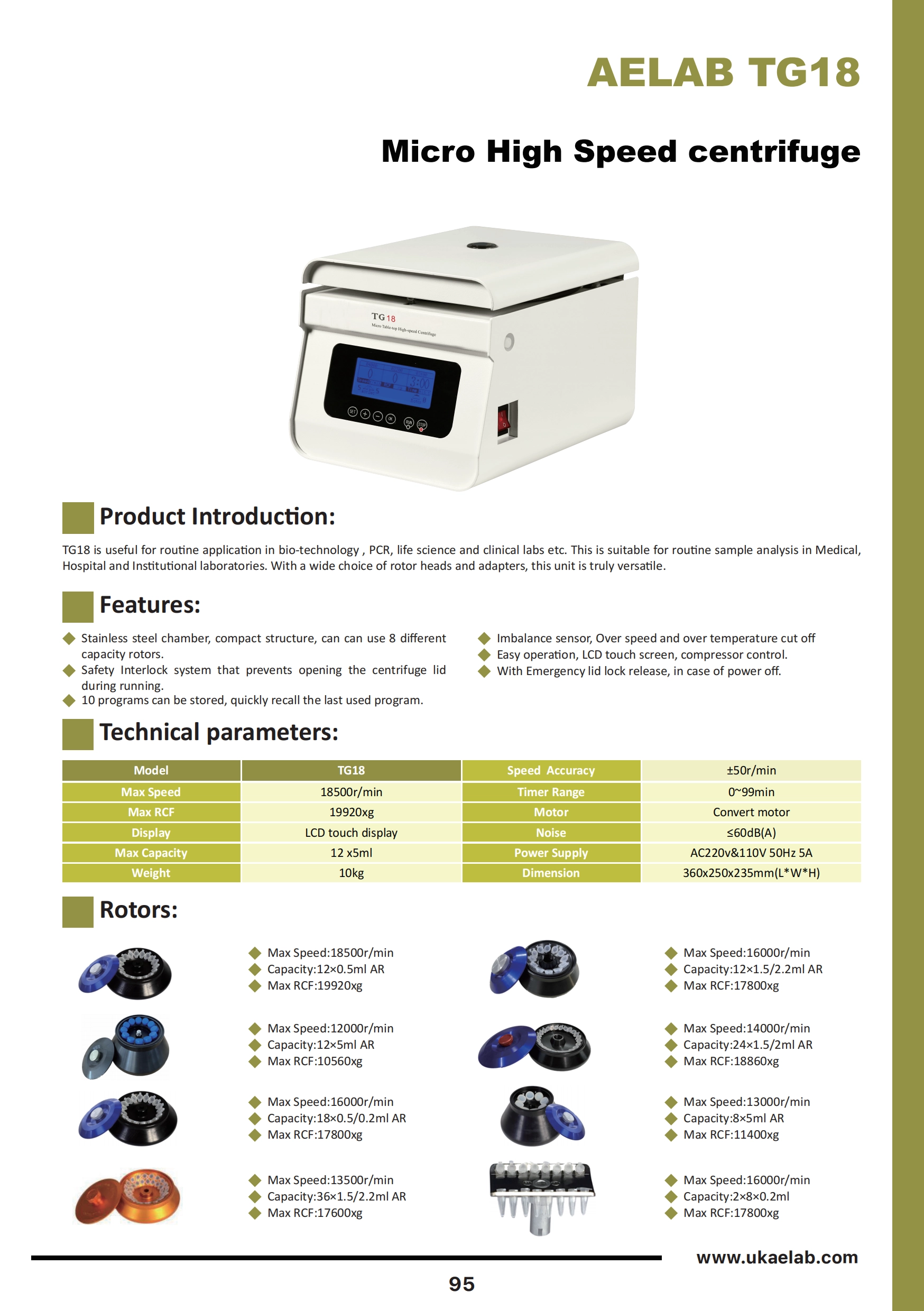

Specifications :
| Model | TG18 | Speed Accuracy | ±50 r/min |
|---|---|---|---|
| Max Speed | 18500 r/min | Timer Range | 0~99 min |
| Max RCF | 19920 ×g | Motor | Convert motor |
| Display | LCD touch display | Noise | ≤60 dB(A) |
| Max Capacity | 12 × 5 ml | Power Supply | AC220V & 110V 50Hz 5A |
| Weight | 10 kg | Dimension (L×W×H) | 360 × 250 × 235 mm |
| Model | TG18 | Speed Accuracy | ±50 r/min |
|---|---|---|---|
| Max Speed | 18500 r/min | Timer Range | 0~99 min |
| Max RCF | 19920 ×g | Motor | Convert motor |
| Display | LCD touch display | Noise | ≤60 dB(A) |
| Max Capacity | 12 × 5 ml | Power Supply | AC220V & 110V 50Hz 5A |
| Weight | 10 kg | Dimension (L×W×H) | 360 × 250 × 235 mm |
