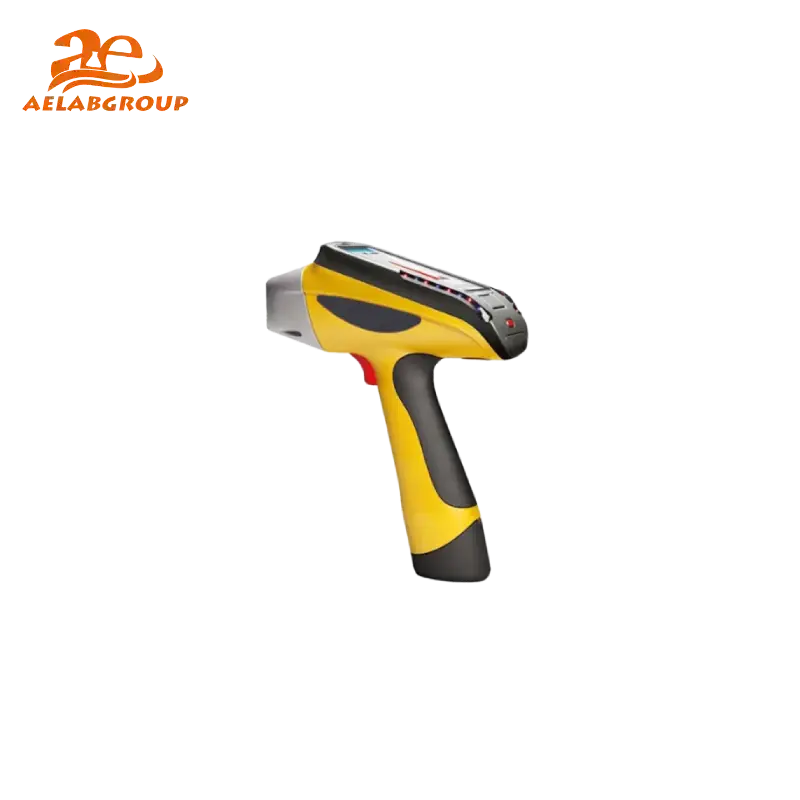

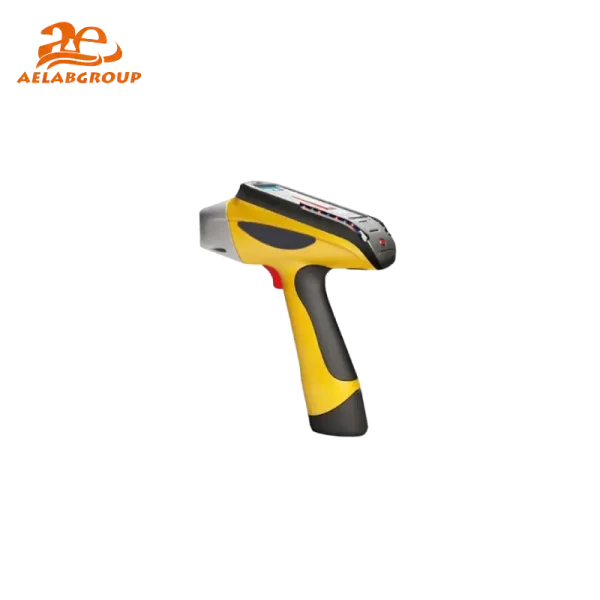

The Portable XRF Spectrometer for soil heavy metal analysis is a versatile, handheld device used for detecting and quantifying heavy metals in soil samples. It employs X-ray fluorescence technology to deliver precise, real-time results on-site. This spectrometer is designed for ease of use and durability, making it suitable for environmental monitoring, contamination studies, and field surveys. Its portability allows for efficient testing in diverse locations, providing valuable data for environmental protection and land management.
Features:
Specifications :
| Analytical Method | Energy dispersive Xray fluorescence analytical Method | ||
| Elements MeasuringRange | Atomic number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be measured | ||
| Simultaneous detectorelements | Simultaneous analysis 40 elements | ||
| Microcomputer system | Customized system； CPU：1G； system memory：1G； extended stored maximum support 32G； standard 4G for mass storage data | ||
| The content range | ppm~99.99% | ||
| The detection time | 1~ 60 seconds(a second report results) | ||
| A bult-in system | GPS， WIFI， Bluetooth | ||
| PowerSupply | Rechargeable lithium battery， standard is9000mAh， sustainable work up to 12 hours； optional is 27000mAh super battery withwide voltage 110V~220V universal adapter for recharging powersupply | ||
| Detection Objective | Solid， liquid， powder | ||
| Detector | SDD detector or Fast-SDD detector(optional) | ||
| Detector resolution | Minimum can reach 128eV | ||
| The excitation source | 50KV/200uA-silver target end window integrated miniature Xray tube and high voltage powersupply | ||
| Collimator and filter | Collimator diameters are 4.0mm and 2.0mm， 6kindsofflters with automatic switching functions | ||
| Video system | 500Wpixel high resolution camera | ||
| Display screen | Brandnew 5 inch transflective LCD touchscreen， there solutonis1080x 720 | ||
| Detection limit | The minimum detection limits at 1~500ppm | ||
| Safety | Mutiple safety protection， no tests， no radiation， radiation levels at work are far below the international safety standards，and has no sample telemetry， automatic shut X light tube function.Standard radiation shields， thickened wall alloy testinstrument | ||
| Specialty | Or especial edtion analysis software， using intel gent one key test | ||
| Convenience of aplica ton | Key intelligent matching the best curve that no need to select curve | ||
| Data transmission | Digital mult-channel technology， SPI data transmission， quick analysis， the high count rate； waterproof mini USB， andcan be connected with a desktop computer | ||
| Operating ambient humid ty | ≤90% | ||
| Operating environmentaltemperature | -20℃~+50℃ | ||
| Instrument dimension | 244mm(Length) x90mm(Width) x330mm(Height) | ||
| Instrument weight | 1.7Kg | ||
| Intelligent warningsignals Indicator system | Greenlight means power on， red flushing means testing and yellow flushing means the problems | ||
| Accessories | Three-ml tary-protection-box is compression， waterproof and shock absorption.Universal charger and car charger， 4GSD memorycard and cardreaderTwo lithium battery and charger， PDA accessories， radiation shield.Optional accessories：the large battery， seat type testsupport， Bluetooth printer， mil， manual pressure machine， and other options can to choosen... | ||
| Analytical Method | Energy dispersive Xray fluorescence analytical Method | ||
| Elements MeasuringRange | Atomic number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be measured | ||
| Simultaneous detectorelements | Simultaneous analysis 40 elements | ||
| Microcomputer system | Customized system； CPU：1G； system memory：1G； extended stored maximum support 32G； standard 4G for mass storage data | ||
| The content range | ppm~99.99% | ||
| The detection time | 1~ 60 seconds(a second report results) | ||
| A bult-in system | GPS， WIFI， Bluetooth | ||
| PowerSupply | Rechargeable lithium battery， standard is9000mAh， sustainable work up to 12 hours； optional is 27000mAh super battery withwide voltage 110V~220V universal adapter for recharging powersupply | ||
| Detection Objective | Solid， liquid， powder | ||
| Detector | SDD detector or Fast-SDD detector(optional) | ||
| Detector resolution | Minimum can reach 128eV | ||
| The excitation source | 50KV/200uA-silver target end window integrated miniature Xray tube and high voltage powersupply | ||
| Collimator and filter | Collimator diameters are 4.0mm and 2.0mm， 6kindsofflters with automatic switching functions | ||
| Video system | 500Wpixel high resolution camera | ||
| Display screen | Brandnew 5 inch transflective LCD touchscreen， there solutonis1080x 720 | ||
| Detection limit | The minimum detection limits at 1~500ppm | ||
| Safety | Mutiple safety protection， no tests， no radiation， radiation levels at work are far below the international safety standards，and has no sample telemetry， automatic shut X light tube function.Standard radiation shields， thickened wall alloy testinstrument | ||
| Specialty | Or especial edtion analysis software， using intel gent one key test | ||
| Convenience of aplica ton | Key intelligent matching the best curve that no need to select curve | ||
| Data transmission | Digital mult-channel technology， SPI data transmission， quick analysis， the high count rate； waterproof mini USB， andcan be connected with a desktop computer | ||
| Operating ambient humid ty | ≤90% | ||
| Operating environmentaltemperature | -20℃~+50℃ | ||
| Instrument dimension | 244mm(Length) x90mm(Width) x330mm(Height) | ||
| Instrument weight | 1.7Kg | ||
| Intelligent warningsignals Indicator system | Greenlight means power on， red flushing means testing and yellow flushing means the problems | ||
| Accessories | Three-ml tary-protection-box is compression， waterproof and shock absorption.Universal charger and car charger， 4GSD memorycard and cardreaderTwo lithium battery and charger， PDA accessories， radiation shield.Optional accessories：the large battery， seat type testsupport， Bluetooth printer， mil， manual pressure machine， and other options can to choosen... | ||
