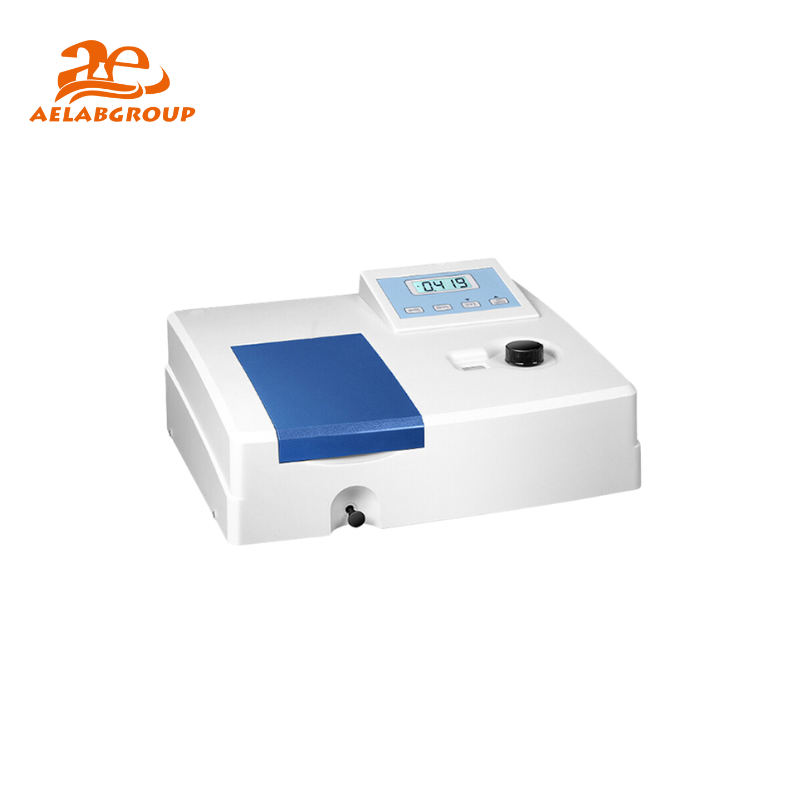

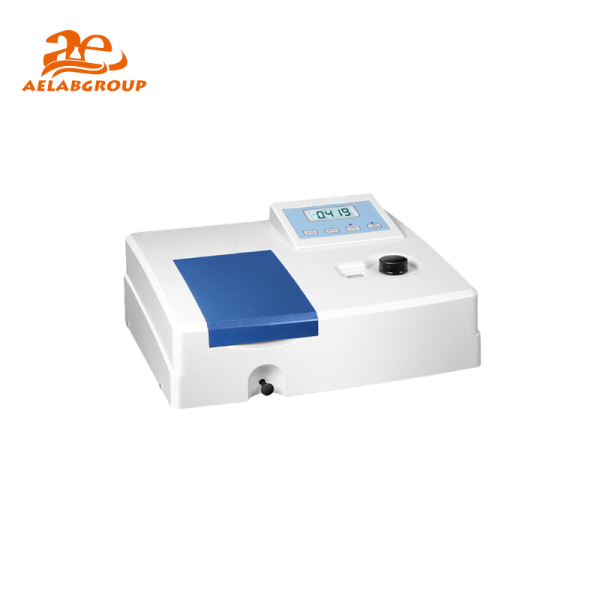

Single Beam UV-VIS Spectrophotometer 752N

Single Beam UV-VIS Spectrophotometer 752N

752N UV-VIS spectrophotometer adopts advanced proportional double beam optical system and low noise circuit design, with excellent reliability and stability. It can meet the needs of daily analysis, scientific researchand other applications.

Modles : 752N

Quantity:

Send Email

The AELAB Single Beam UV-VIS Spectrophotometer 752N integrates an advanced proportional double beam optical system and low noise circuit design, ensuring high reliability and stability. Designed for a wide range of applications including daily analysis and scientific research, it supports a sample compartment for 5-50mm cuvettes and features precise automatic T/A changeover. Additionally, it offers automatic zero and full-scale adjustment, direct concentration read-out, and the ability to set concentration factors. With RS232 and USB ports, it ensures seamless data transfer and connectivity for enhanced usability and flexibility.

Features:

Automatic 0A and 100%T.
Direct concentration read-out and concentration factor setting function.
Large sample compartment, for 5-mm path length cuvettes with optional holders.
Easy to change the halogen lamp or deuterium lamp by the user himself.
High quality sillicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.

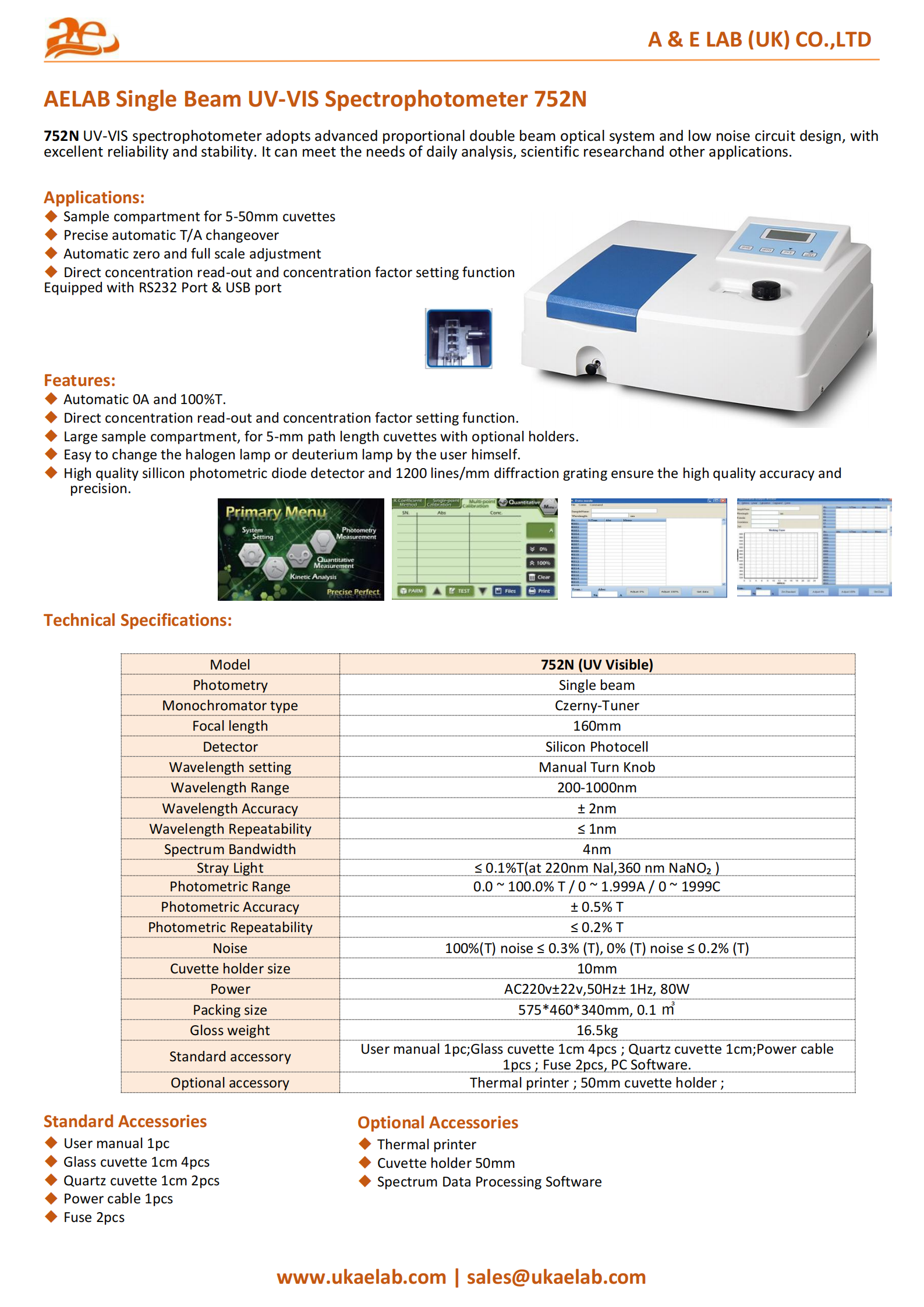

Specifications :

Model	752N (UV Visible)
Photometry	Single beam
Monochromator type	Czerny-Tuner
Focal length	160mm
Detector	Silicon Photocell
Wavelength setting	Manual Turn Knob
Wavelength Range	200-1000nm
Wavelength Accuracy	± 2nm
Wavelength Repeatability	≤ 1nm
Spectrum Bandwidth	4nm
Stray Light	≤ 0.1%T(at 220nm Nal,360 nm NaNO₂ )
Photometric Range	0.0 ~ 100.0% T / 0 ~ 1.999A / 0 ~ 1999C
Photometric Accuracy	± 0.5% T
Photometric Repeatability	≤ 0.2% T
Noise	100%(T) noise ≤ 0.3% (T), 0% (T) noise ≤ 0.2% (T)
Cuvette holder size	10mm
Power	AC220v±22v,50Hz± 1Hz, 80W
Packing size	575460340mm, 0.1㎥
Gloss weight	16.5kg
Standard accessory	User manual 1pc;Glass cuvette 1cm 4pcs ; Quartz cuvette 1cm;Power cable 1pcs ; Fuse 2pcs, PC Software.
Optional accessory	Thermal printer ; 50mm cuvette holder ;

Model	752N (UV Visible)
Photometry	Single beam
Monochromator type	Czerny-Tuner
Focal length	160mm
Detector	Silicon Photocell
Wavelength setting	Manual Turn Knob
Wavelength Range	200-1000nm
Wavelength Accuracy	± 2nm
Wavelength Repeatability	≤ 1nm
Spectrum Bandwidth	4nm
Stray Light	≤ 0.1%T(at 220nm Nal,360 nm NaNO₂ )
Photometric Range	0.0 ~ 100.0% T / 0 ~ 1.999A / 0 ~ 1999C
Photometric Accuracy	± 0.5% T
Photometric Repeatability	≤ 0.2% T
Noise	100%(T) noise ≤ 0.3% (T), 0% (T) noise ≤ 0.2% (T)
Cuvette holder size	10mm
Power	AC220v±22v,50Hz± 1Hz, 80W
Packing size	575460340mm, 0.1㎥
Gloss weight	16.5kg
Standard accessory	User manual 1pc;Glass cuvette 1cm 4pcs ; Quartz cuvette 1cm;Power cable 1pcs ; Fuse 2pcs, PC Software.
Optional accessory	Thermal printer ; 50mm cuvette holder ;
