Tabletop High-Speed and High-Capacity Refrigerated Centrifuge TGL-25M

The TGL-25M centrifuge provides 25,000 rpm and 50,000 x g RCF, driven by a German Hanning Motor and AC variable-conversion motor for high performance. It features an LCD touch screen, automatic rotor recognition, and 6 custom programs. Safety features include over-speed, over-temperature, and imbalance detection. The R404a non-CFC refrigerant compressor ensures efficient cooling. With customizable acceleration and deceleration levels, it is US FDA certified and meets GMP standards.
Modles : TGL-25M
whatsapp Whatsapp

The Tabletop High-Speed and High-Capacity Refrigerated Centrifuge TGL-25M delivers powerful performance with a maximum speed of 25,000 rpm and RCF over 50,000 x g. It is powered by a reliable German Hanning Motor and an AC variable-conversion motor for high torque. The LCD touch screen allows easy operation, with up to 6 user programs for customized settings. Safety features include over-speed detection, over-temperature protection, imbalance detection, and an automatic alarm. The centrifuge also offers adjustable acceleration and deceleration levels and is equipped with an imported compressor unit using R404a non-CFC refrigerant. Compliant with GMP and US FDA standards.



Features:

  • The max speed is 25000rpm, and the largest RCF more than50000xg.
  • It is installed with German Hanning Motor.
  • It has micro-computer control,electronic lock and AC variable-conversion motor which delivers high torque.

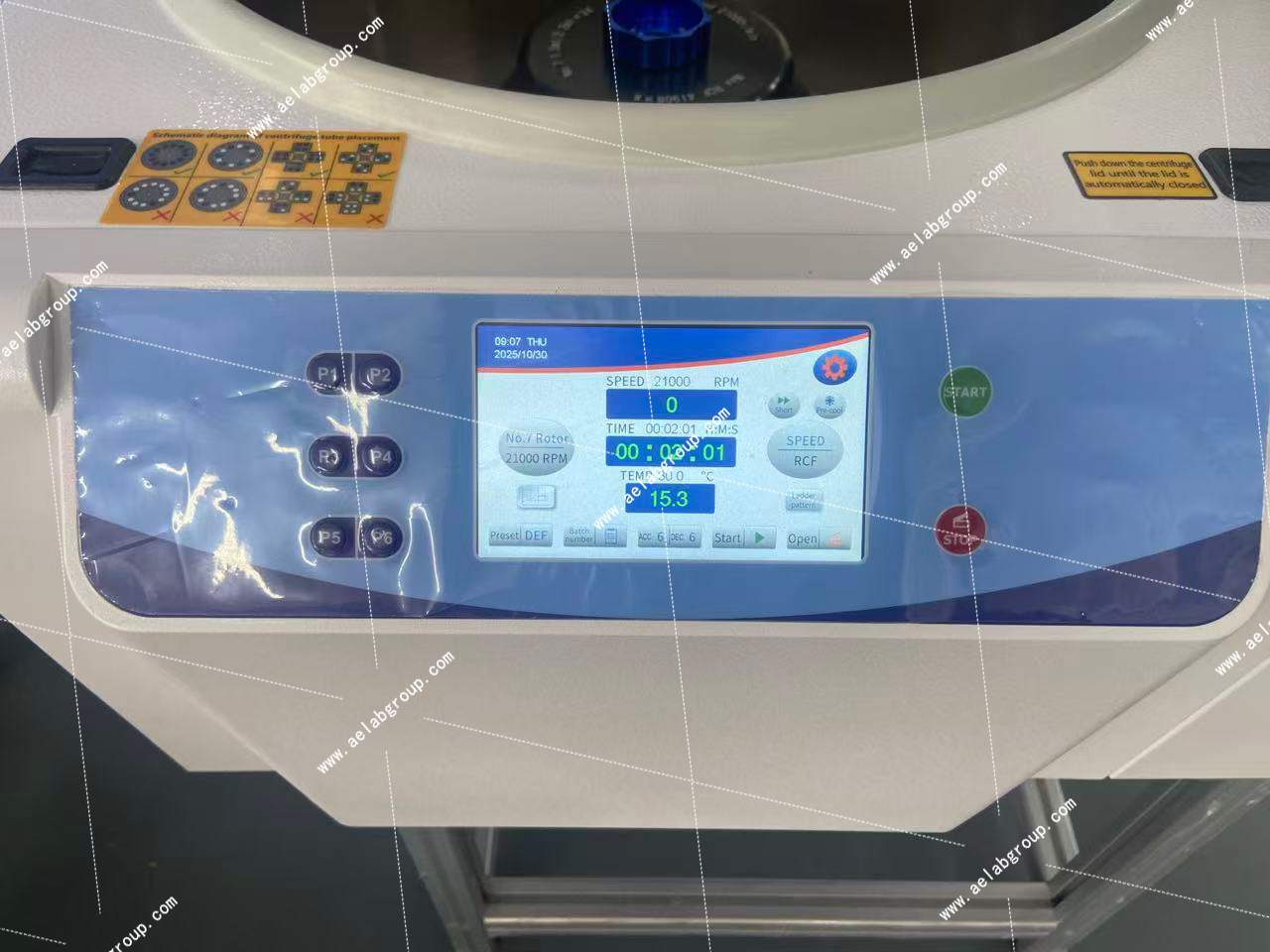

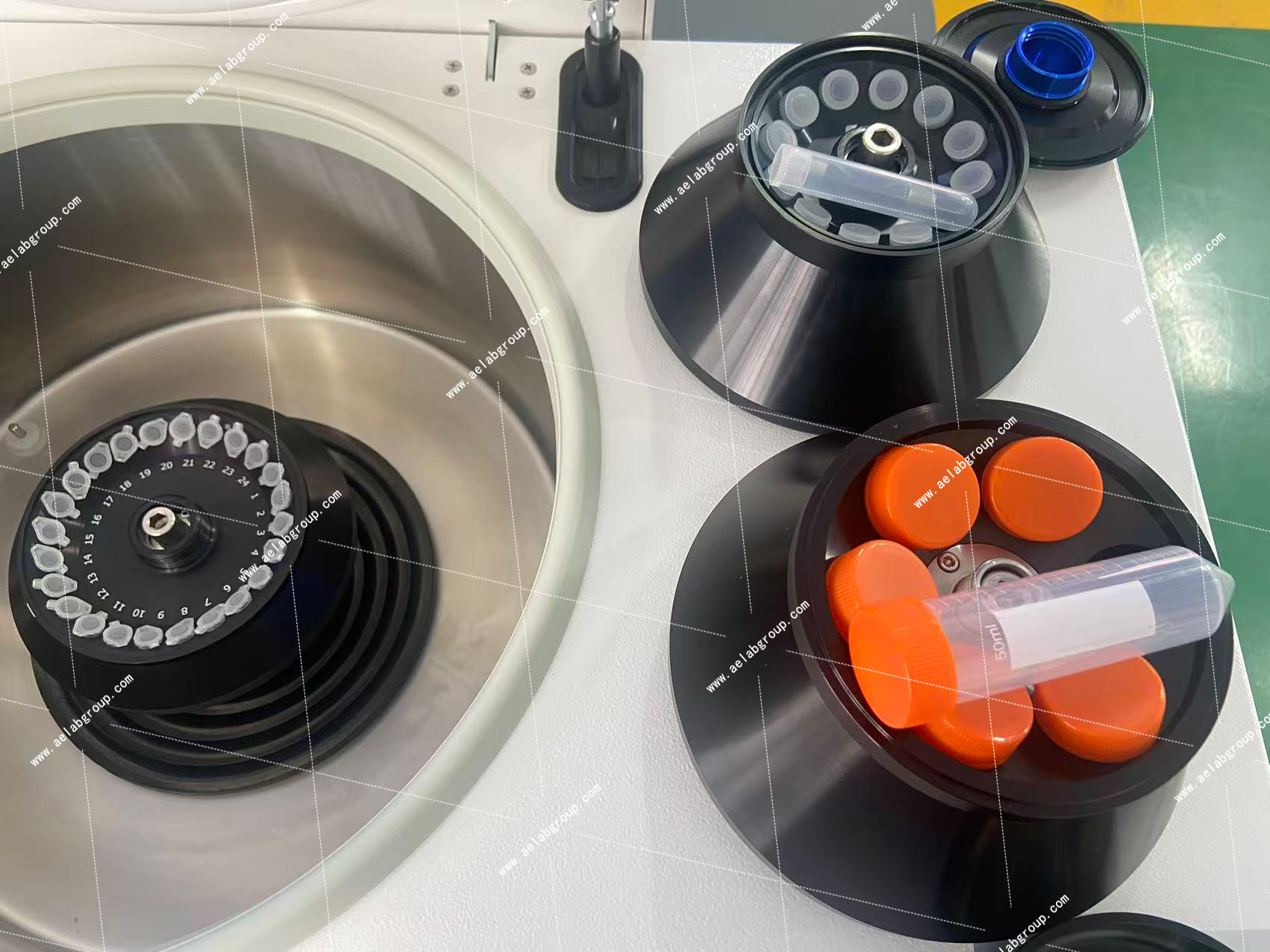

  • LCD touch screen make visualized operation convenientlyImported compressor unit with Non-CFC refrigerant R404aAutomatic rotor recognition make safety for multiple rotors choice(option)
  • Up to 6 user programs storage in the surface is selected directly.It has self-locking,over-speed detection,over-temperature detection,imbalance detection that is automatic alarm device.It has 9 levels acceleration and 10 levels deceleration to besetting according to the different requirement. Slow down freely isavailable.
  • Silastic sealed ring comfort to GMP, US FDA certificated



Tabletop High-Speed and High-Capacity Refrigerated Centrifuge TGL-25M

Specifications :

Model TGL-25M
Max Speed 25000 r/min
Max RCF 50560 xg
Max Capacity 6 x 100ml
Speed Accuracy ±10 r/min
Time Setting Range 1 min ~ 99 h 59 min
Temperature Setting Range -20 ℃ ~ +40 ℃
Temperature Accuracy ±1 ℃
Compressor Unit French Tecumseh Compressor Unit R404a
Noise <65 db(A)
Power Supply AC110V/AC220V, 50Hz-60Hz
Power Consumption 1.5 kw
Dimension (LxWxH) 725mm × 600mm × 440mm
Packing Size (LxWxH) 910mm × 720mm × 620mm
Net Weight (No rotor) 100 kg

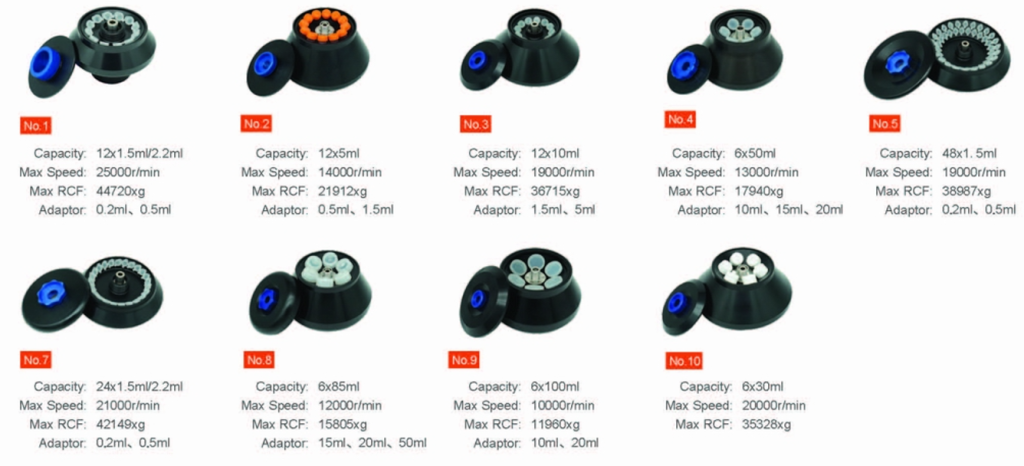

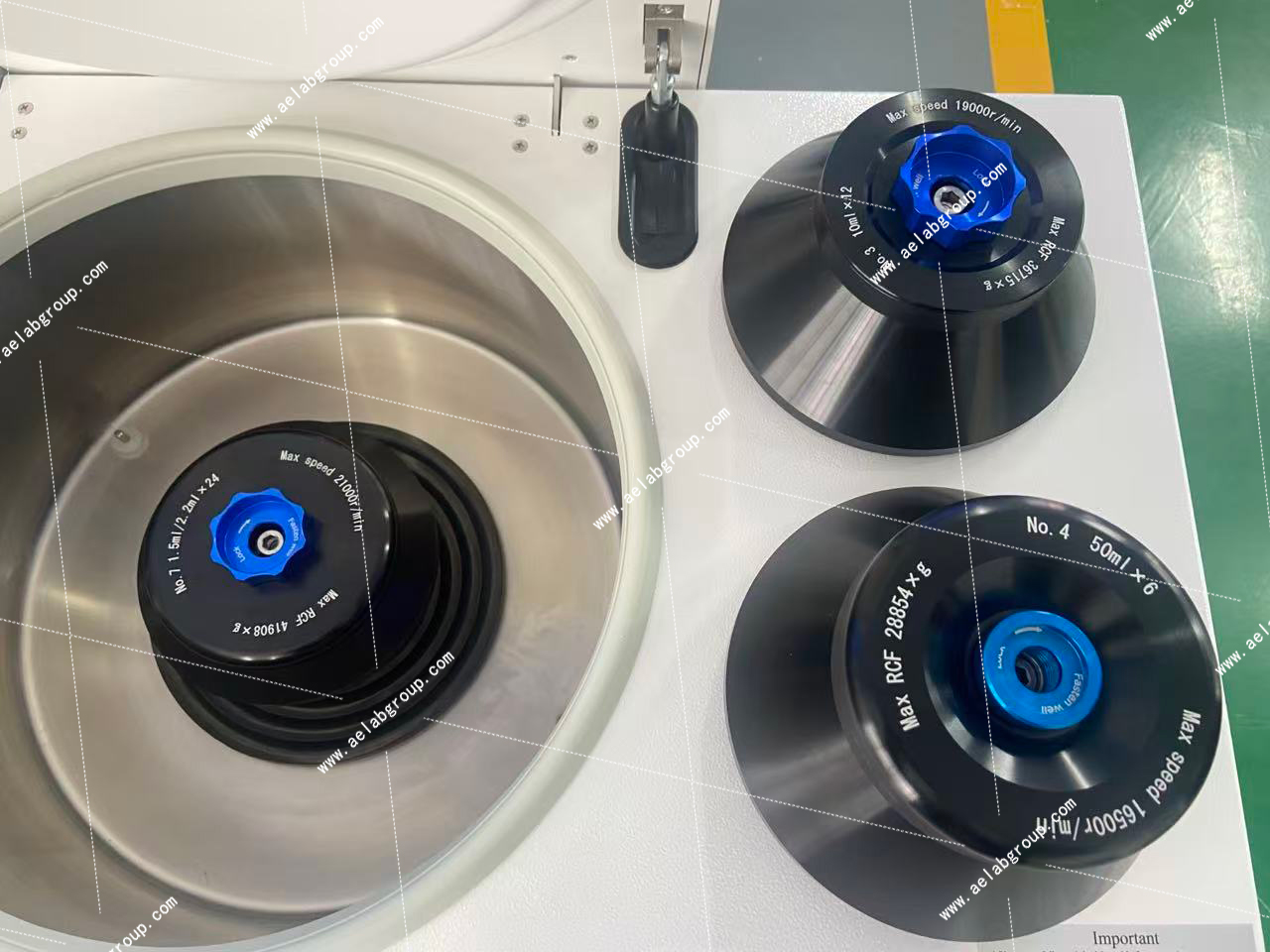

Rotor:

Model TGL-25M
Max Speed 25000 r/min
Max RCF 50560 xg
Max Capacity 6 x 100ml
Speed Accuracy ±10 r/min
Time Setting Range 1 min ~ 99 h 59 min
Temperature Setting Range -20 ℃ ~ +40 ℃
Temperature Accuracy ±1 ℃
Compressor Unit French Tecumseh Compressor Unit R404a
Noise <65 db(A)
Power Supply AC110V/AC220V, 50Hz-60Hz
Power Consumption 1.5 kw
Dimension (LxWxH) 725mm × 600mm × 440mm
Packing Size (LxWxH) 910mm × 720mm × 620mm
Net Weight (No rotor) 100 kg

Rotor:

Product Video:
