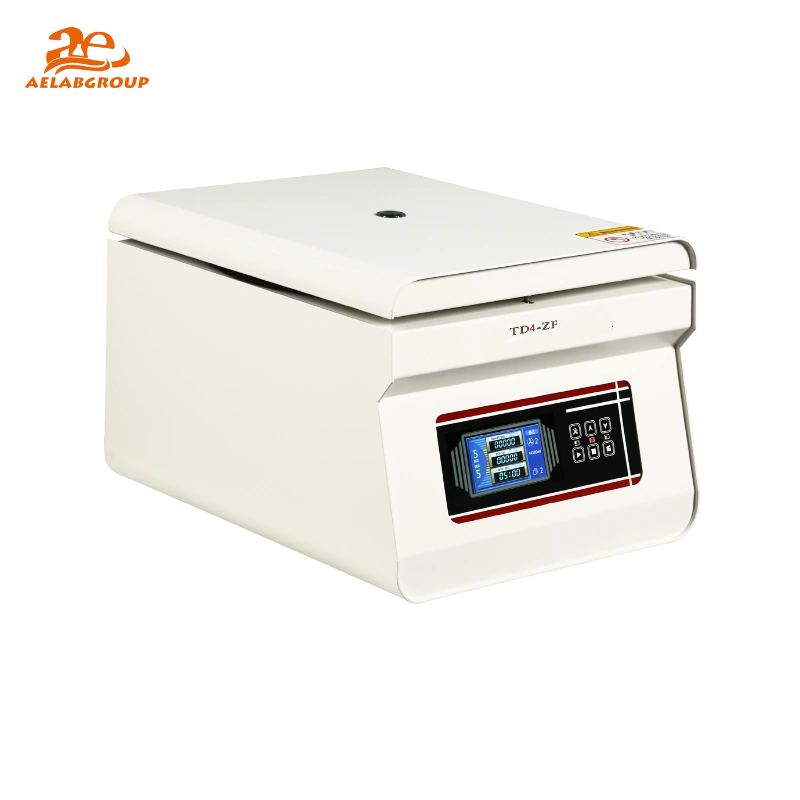

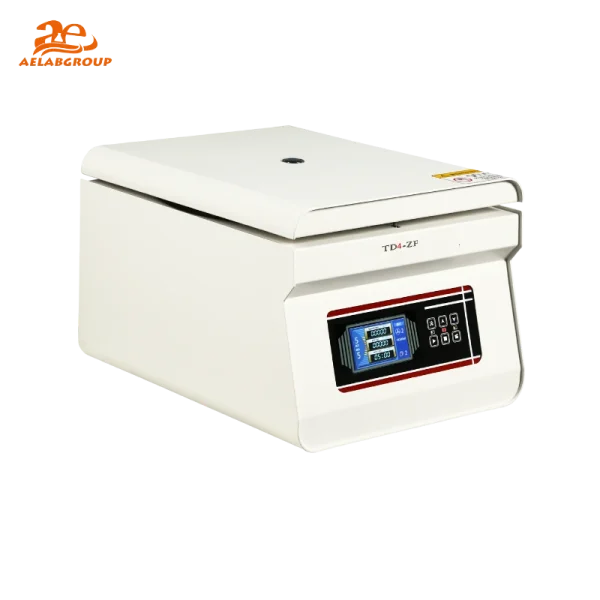

The AELAB TD4-ZF tabletop PRP & FAT centrifuge is a multifunctional centrifuge designed for PRP separation and autologous fat purification in clinical environments. The system is widely applied in cosmetic surgery, dermatology, and urology rehabilitation laboratories where controlled centrifugal force is required.
The AELAB TD4-ZF centrifuge supports 10 ml, 20 ml, 30 ml, and 50 ml conventional syringes and PRP tubes, enabling efficient separation of PRP and fat without heating or structural damage, ensuring high survival rates of biological material.

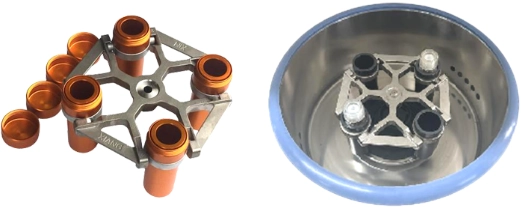

The AELAB TD4-ZF centrifuge features a compact tabletop structure with a reinforced housing and integrated swing rotor chamber. The system is driven by a microprocessor-controlled AC motor to maintain rotational stability and consistent centrifugal force during PRP and fat purification cycles.
The AELAB TD4-ZF tabletop centrifuge separates PRP and fat components by applying controlled centrifugal acceleration up to 4390 ×g. Differential density separation allows effective stratification of plasma, platelets, and fat tissues while preventing thermal degradation.
The AELAB TD4-ZF centrifuge operates as a standalone clinical centrifuge with integrated digital and LCD display interfaces for speed and timer control. The system supports direct manual operation without external software dependencies.
The AELAB TD4-ZF tabletop PRP & FAT centrifuge is used for PRP preparation, autologous fat purification, and biological component separation in cosmetic surgery clinics, dermatology laboratories, urology rehabilitation centers, and medical research facilities.
The AELAB TD4-ZF centrifuge is manufactured under controlled quality systems and designed for stable, repeatable PRP and fat purification processes. The system supports standardized laboratory workflows and routine quality control procedures.
Specifications :
| Parameter | Specification |
|---|---|
| Model | TD4-ZF |
| Display | Digital Display / LCD Display |
| Max Speed / RCF | 5000 r/min / 4390 ×g |
| Speed Accuracy | ±20 r/min |
| NO.1 Swing Rotor | 4 × 50 ml / 20 ml syringe (with bucket cap), 4000 r/min, 4390 ×g |
| NO.2 Swing Rotor | 4 × 30 ml Trical PRP tube, 4000 r/min, 3500 ×g |
| NO.2 Swing Rotor | 8 × 100 ml + Adapter for 50 ml / 20 ml syringe, 4000 r/min, 3500 ×g |
| Motor | Microprocessor & AC Motor |
| Timer Range | 0~99 min |
| Noise | ≤50 dB(A) |
| Power Supply | AC 220 V & 110 V, 50 Hz, 5 A |
| Dimension (L × W × H) | 545×452×370mm |
| Weight | 39 kg |
| Parameter | Specification |
|---|---|
| Model | TD4-ZF |
| Display | Digital Display / LCD Display |
| Max Speed / RCF | 5000 r/min / 4390 ×g |
| Speed Accuracy | ±20 r/min |
| NO.1 Swing Rotor | 4 × 50 ml / 20 ml syringe (with bucket cap), 4000 r/min, 4390 ×g |
| NO.2 Swing Rotor | 4 × 30 ml Trical PRP tube, 4000 r/min, 3500 ×g |
| NO.2 Swing Rotor | 8 × 100 ml + Adapter for 50 ml / 20 ml syringe, 4000 r/min, 3500 ×g |
| Motor | Microprocessor & AC Motor |
| Timer Range | 0~99 min |
| Noise | ≤50 dB(A) |
| Power Supply | AC 220 V & 110 V, 50 Hz, 5 A |
| Dimension (L × W × H) | 545×452×370mm |
| Weight | 39 kg |
