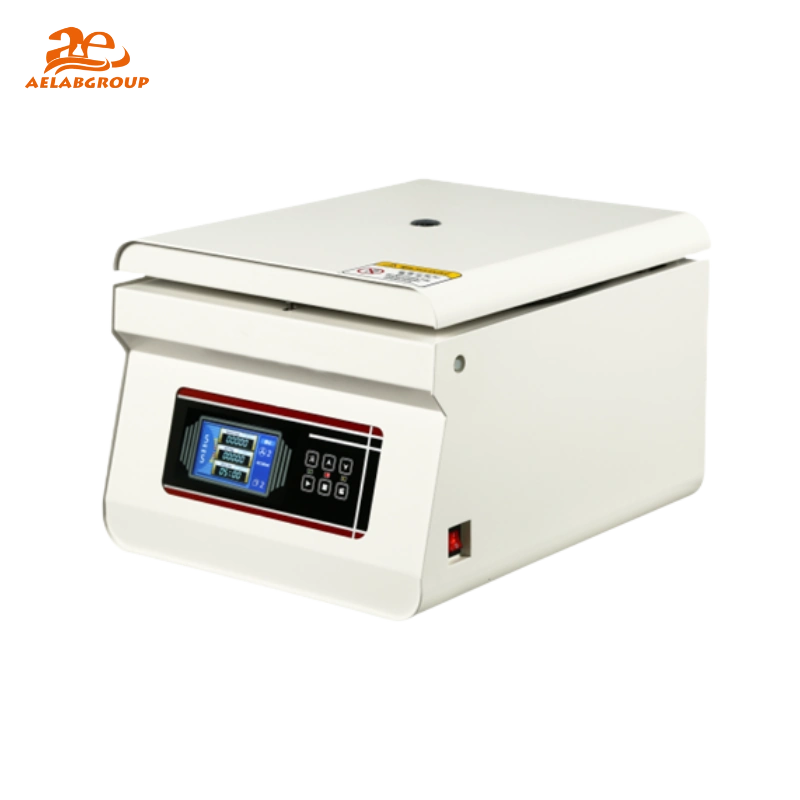

AELAB TDL-5Y/DL-5Y Crude Oil Centrifuge for Water & Sediment Assay

The AELAB TDL-5Y/DL-5Y crude oil centrifuge is designed for assay of the water and sediment in the crude oil. The AELAB TDL-5Y/DL-5Y crude oil centrifuge uses a centrifugal separation method to determine water and sediment content in crude oil for petroleum testing and laboratory workflows.

The AELAB TDL-5Y/DL-5Y crude oil centrifuge is suitable for oil industry quality control and scientific research in separating water from crude oil samples, supporting controlled speed, temperature, and timing parameters for repeatable analysis.

⚙️ Design & Construction

The AELAB TDL-5Y/DL-5Y crude oil centrifuge is a temperature-controlled centrifuge platform available as a tabletype (TDL-5Y) and floortype (DL-5Y) instrument for crude oil testing. The AELAB TDL-5Y/DL-5Y crude oil centrifuge incorporates a circular heater for fast heating and temperature uniformity to stabilize sample separation conditions within the specified RT–80 °C temperature range. The integrated LCD control panel displays rotor number, speed, time, temperature, RCF, Acc/Dec rate, and diagnostic information for controlled operation.

🔬 Working Principle / Testing Method

The AELAB TDL-5Y/DL-5Y crude oil centrifuge analyzes crude oil samples by applying centrifugal force (up to 4390 × g) to accelerate phase separation and quantify water and sediment by assay workflow. The AELAB TDL-5Y/DL-5Y crude oil centrifuge regulates separation conditions by setting speed (up to 5000 r/min), temperature (RT–80 °C), and time (0–99 min) to support repeatable crude oil water-and-sediment determination under controlled heating and rotor acceleration/deceleration.

💡 Key Advantages

• The AELAB TDL-5Y/DL-5Y crude oil centrifuge provides an LCD display showing rotor number, speed, time, temperature, RCF, Acc/Dec rate, and trouble information/error code for traceable centrifuge control
• The AELAB TDL-5Y/DL-5Y crude oil centrifuge uses a circular heater for fast heating and temperature uniformity, enabling temperature controlling and temperature holding aligned with oil-industry temperature requirements
• The AELAB TDL-5Y/DL-5Y crude oil centrifuge uses a frequency-conversion motor with high torque to support stable and fast acceleration/deceleration, long service life, maintenance-free operation, and low noise
• The AELAB TDL-5Y/DL-5Y crude oil centrifuge supports multiple swing rotor options (No.1/No.2/No.3) to accommodate different crude oil tube volumes for assay workflows
• The AELAB TDL-5Y/DL-5Y crude oil centrifuge includes a self-diagnosis system that detects overspeed and over-temperature and displays an error code to improve operational safety
• The AELAB TDL-5Y/DL-5Y crude oil centrifuge operates with noise level <68 dB(A) to support stable testing environments

🔗 Connectivity & Integration

The AELAB TDL-5Y/DL-5Y crude oil centrifuge is operated through the integrated LCD control panel for parameter setting and on-screen diagnostics. No external connectivity interfaces (USB, Bluetooth) or software/GLP export functions are specified in the provided technical data for the AELAB TDL-5Y/DL-5Y crude oil centrifuge.

🧠 Model Insight

🧪 Testing Applications

The AELAB TDL-5Y/DL-5Y crude oil centrifuge is used for crude oil water and sediment assay where controlled centrifugal separation is required for petroleum testing. Typical applications for the AELAB TDL-5Y/DL-5Y crude oil centrifuge include oilfield and refinery quality control, laboratory verification of crude oil dehydration performance, research workflows separating water from crude oil matrices, and routine separation testing where RT–80 °C temperature control supports stable viscosity-dependent separation conditions.

Compliance & Quality Assurance

The AELAB TDL-5Y/DL-5Y crude oil centrifuge supports quality-focused operation through parameter display (speed, temperature, time, RCF) and self-diagnosis for overspeed and over-temperature alarms with error-code indication. Formal certifications (ISO/CE/GLP) and calibration traceability statements are not specified in the provided documentation for the AELAB TDL-5Y/DL-5Y crude oil centrifuge and should be confirmed during procurement qualification.

For controlled crude oil separation testing, the AELAB TDL-5Y/DL-5Y crude oil centrifuge provides 5000 r/min operation, 4390 × g separation force, RT–80 °C heating control, and swing-rotor capacity options to support repeatable water-and-sediment assay workflows in petroleum laboratories and industrial QA environments.
