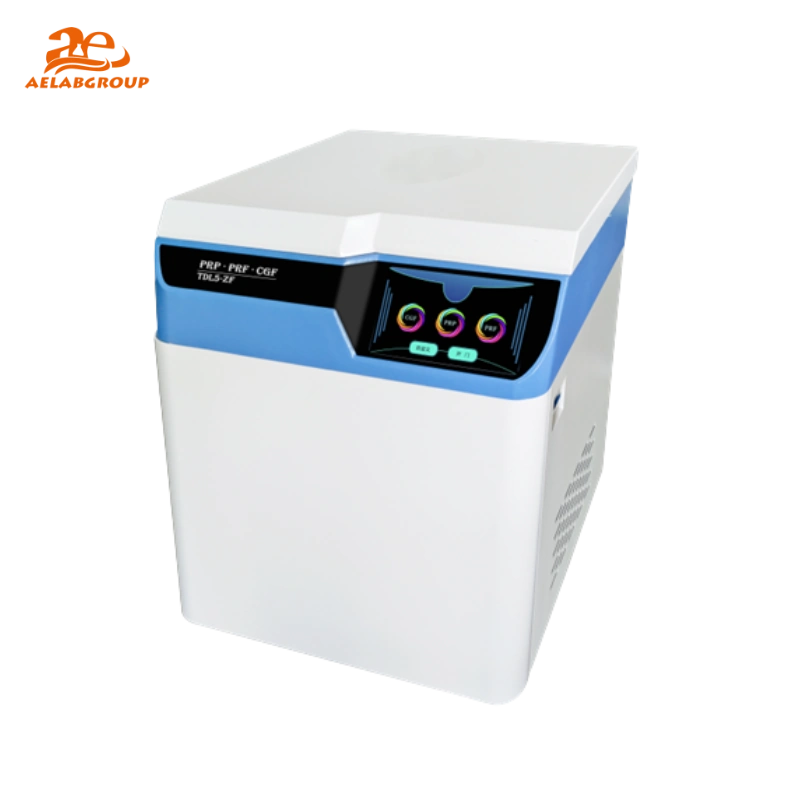

The AELAB TDL5-ZF floor-type centrifuge performs multi-functional centrifugal separation for stem cells, PRP, PRF, CGF, and SVF preparation. Engineered for high-throughput clinical and laboratory environments, the AELAB TDL5-ZF integrates refrigeration, programmable protocols, and safety interlocks to ensure stable biological sample processing.
Designed for cosmetic surgery clinics, beauty centers, and biomedical laboratories, the AELAB TDL5-ZF centrifuge supports multiple PRP kit formats and tube systems while maintaining controlled temperature and centrifugal force throughout the operation cycle.
The AELAB TDL5-ZF centrifuge features a floor-standing enclosure with a reinforced internal chamber. The centrifuge chamber integrates a refrigeration system for precise temperature stabilization. An electric lid mechanism enables automated opening and closing, while an integrated UV lamp sterilizes the chamber lid surface. Multiple swing and angle rotors allow flexible configuration for different PRP and stem cell processing protocols.
The AELAB TDL5-ZF centrifuge separates biological components by applying controlled centrifugal force up to 5220 × g. A microprocessor regulates rotational speed, acceleration, deceleration, and temperature. Fixed PRP, PRF, and CGF programs enable direct operation, while free-setting modes allow protocol customization for stem cell and SVF preparation.
The AELAB TDL5-ZF centrifuge integrates onboard microprocessor control with touchscreen interface. Programmable protocols support standardized PRP processing and customized laboratory workflows. Error codes and operational parameters are displayed directly on the screen to support GLP-aligned documentation.
The AELAB TDL5-ZF centrifuge is used for PRP, PRF, CGF, and stem cell preparation in cosmetic surgery, regenerative medicine, orthopedics, dermatology, and clinical laboratories. It supports blood component separation, platelet concentration, and biological sample processing for medical and research applications.
The AELAB TDL5-ZF centrifuge is manufactured under controlled quality systems and supports GLP-style laboratory operation. Integrated safety monitoring, temperature regulation, and programmable control enhance repeatability and operational reliability for regulated clinical environments.
Specifications :
| Model | TDL5-ZF |
| Max Speed / RCF | 5000 r/min / 5220 × g |
| No.1 Angle Rotor | 12 × 10 ml (Vacuum type PRP PRF CGF Tube) |
| No.2 Swing Rotor | 16 × 10 ml / 15 ml (Vacuum type PRP PRF CGF Tube) |
| No.3 Swing Rotor | 4 × 20 ml / 50 ml syringe |
| No.4 Swing Rotor | 4 × 60 ml / 30 ml PRO / PURE / Prolo30 PRP tube |
| No.5 Swing Rotor | 4 × 15 ml / 20 ml Arthrex Double syringe |
| No.6 Swing Rotor | 4 × 60 ml / 30 ml, Emcyte 60 / 30 ml |
| No.7 Swing Rotor | 4 × 20 ml DR PRP tube |
| Timer / Temperature Range | 0~99 h 99 min 59 s / –20 °C ~ + 40 °C |
| Motor | Microprocessor Control, Frequency Conversion Motor |
| Noise | ≤60 dB(A) |
| Power Supply | AC110–220 V, 50–60 Hz, 10 A |
| Dimension / Net Weight | 570 × 490 × 700 mm (L × W × H) / 110 kg |
| Model | TDL5-ZF |
| Max Speed / RCF | 5000 r/min / 5220 × g |
| No.1 Angle Rotor | 12 × 10 ml (Vacuum type PRP PRF CGF Tube) |
| No.2 Swing Rotor | 16 × 10 ml / 15 ml (Vacuum type PRP PRF CGF Tube) |
| No.3 Swing Rotor | 4 × 20 ml / 50 ml syringe |
| No.4 Swing Rotor | 4 × 60 ml / 30 ml PRO / PURE / Prolo30 PRP tube |
| No.5 Swing Rotor | 4 × 15 ml / 20 ml Arthrex Double syringe |
| No.6 Swing Rotor | 4 × 60 ml / 30 ml, Emcyte 60 / 30 ml |
| No.7 Swing Rotor | 4 × 20 ml DR PRP tube |
| Timer / Temperature Range | 0~99 h 99 min 59 s / –20 °C ~ + 40 °C |
| Motor | Microprocessor Control, Frequency Conversion Motor |
| Noise | ≤60 dB(A) |
| Power Supply | AC110–220 V, 50–60 Hz, 10 A |
| Dimension / Net Weight | 570 × 490 × 700 mm (L × W × H) / 110 kg |
