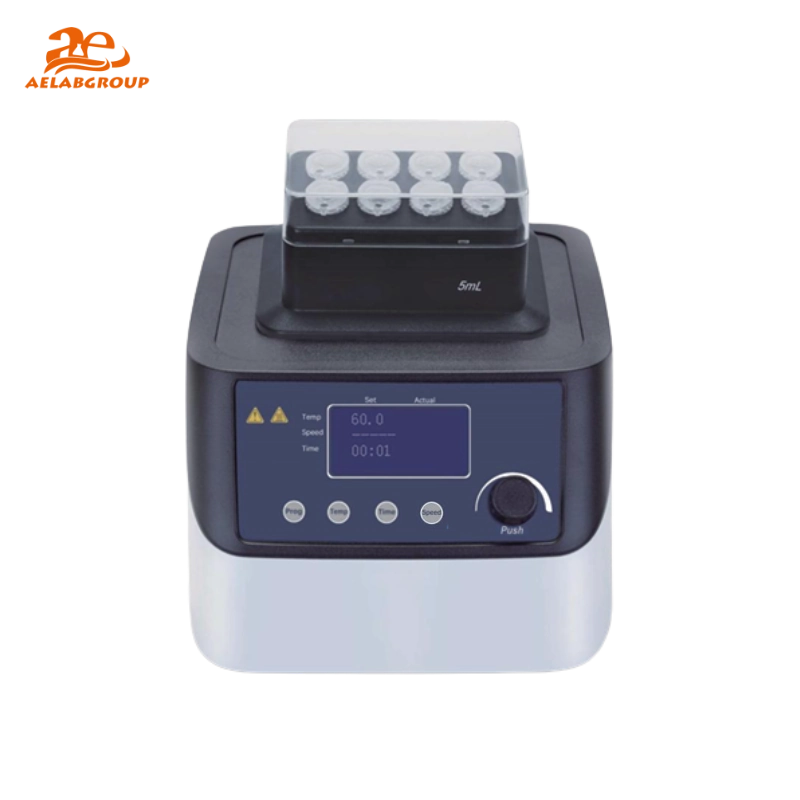

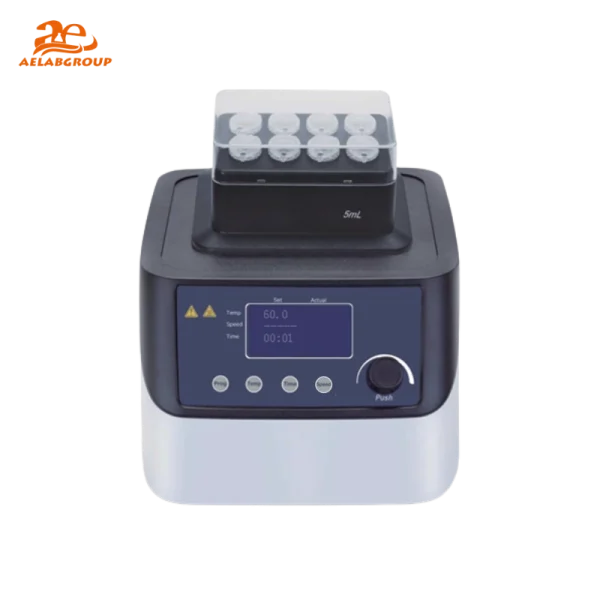

The AELAB Thermo Mix HCM100-Pro / HM100-Pro integrates precise and efficient heating, cooling, and mixing functions for demanding laboratory workflows. With automatic block recognition, real-time display of speed, temperature, and time, and user-defined programs, the system enhances processing accuracy and experimental reproducibility.
The HCM100-Pro combines excellent mixing and accurate temperature control for high-throughput sample incubation. The series supports fast thermal transitions, universal block compatibility, and magnet-based tool-free block exchange for flexible research applications.
The AELAB Thermo Mix Series features an advanced heating/cooling module, micro-vibration orbital mixing mechanism (HCM100-Pro and HM100-Pro), and a robust TFT interface for parameter monitoring. The system uses interchangeable precision-machined blocks constructed for optimal heat transfer. Magnetic adhesion technology enables fast, tool-free block replacement, while integrated lids support heat preservation. Built-in overheating protection (150 °C) ensures safe operation.
The system stabilizes temperature using uniformity-optimized thermal control while measuring temperature feedback in real time for ±0.5 °C accuracy. The orbital mixing platform agitates samples at 200–1500 rpm with a 3 mm orbit (HCM100-Pro, HM100-Pro). Heating and cooling elements deliver rapid thermal ramps up to 5.5 °C/min heating and model-specific cooling rates down to 0.5 °C/min below room temperature. Programmable workflows allow up to nine stored methods for reproducible thermal-mixing cycles.
The AELAB Thermo Mix Series supports GLP-compliant data operation with real-time parameter visualization. Data can be referenced directly via the onboard TFT interface. The system is compatible with external laboratory information workflows and standard electrical requirements (110/220 V, 50/60 Hz).
| Model | Specifications |
|---|---|
| HCM100-Pro | Heating, cooling & mixing; 0–100 °C setting range; 200–1500 rpm; 5 °C/min cooling; 200 W; 7.3 kg |
| HM100-Pro | Heating & mixing; 0–100 °C setting range; 200–1500 rpm; 200 W; 7.3 kg |
| HC110-Pro | Heating & cooling; –5–110 °C setting range; 2.5 °C/min cooling; 200 W; 7.3 kg |
The AELAB Thermo Mix Series supports molecular biology, genomics, and biochemical workflows including:
All AELAB Thermo Mix instruments are manufactured under strict ISO, CE, and GLP-aligned quality standards. Each unit undergoes calibrated temperature and performance verification to ensure consistent and traceable laboratory operation.
Specifications :
| Specifications | HCM100-Pro | HM100-Pro | HC110-Pro |
|---|---|---|---|
| Functions | Heating, cooling & mixing | Heating & mixing | Heating & cooling |
| Temperature range [°C] | Below room temp 15–100 | Room temp–100 | Below room temp 25–110 |
| Temperature Setting range [°C] | 0–100 | 0–100 | –5–110 |
| Temperature control accuracy@20–45 [°C] | ±0.5 | ±0.5 | ±0.5 |
| Temperature uniformity@20–45 [°C] | ±0.5 | ±0.5 | ±0.5 |
| Power [W] | 200 | 200 | 200 |
| Time setting range | 0 min–99 h 30 min | 0 min–99 h 30 min | 0 min–99 h 30 min |
| Max Heating speed | 5.5 °C/min | 5.5 °C/min | 5.5 °C/min |
| Max Cooling speed | 5 °C/min (100 °C→room temp); 0.5 °C/min (below room temp) | – | 2.5 °C/min (100 °C→room temp); 0.5 °C/min (below room temp) |
| Mixing speed [rpm] | 200–1500 | 200–1500 | – |
| Mixing orbit [mm] | 3 | 3 | – |
| Display | TFT | TFT | TFT |
| Program | 9 | 9 | 9 |
| Overheating protection [°C] | 150 | 150 | 150 |
| Voltage, Frequency | 110/220V, 50/60Hz | 110/220V, 50/60Hz | 110/220V, 50/60Hz |
| Dimension [mm] | 200×235×120 | 200×235×120 | 200×235×120 |
| Weight [kg] | 7.3 | 7.3 | 7.3 |
| Operating temperature [°C] | 10–40 | 10–40 | 10–40 |
| Operating humidity [% RH] | <80 | <80 | <80 |
| Specifications | HCM100-Pro | HM100-Pro | HC110-Pro |
|---|---|---|---|
| Functions | Heating, cooling & mixing | Heating & mixing | Heating & cooling |
| Temperature range [°C] | Below room temp 15–100 | Room temp–100 | Below room temp 25–110 |
| Temperature Setting range [°C] | 0–100 | 0–100 | –5–110 |
| Temperature control accuracy@20–45 [°C] | ±0.5 | ±0.5 | ±0.5 |
| Temperature uniformity@20–45 [°C] | ±0.5 | ±0.5 | ±0.5 |
| Power [W] | 200 | 200 | 200 |
| Time setting range | 0 min–99 h 30 min | 0 min–99 h 30 min | 0 min–99 h 30 min |
| Max Heating speed | 5.5 °C/min | 5.5 °C/min | 5.5 °C/min |
| Max Cooling speed | 5 °C/min (100 °C→room temp); 0.5 °C/min (below room temp) | – | 2.5 °C/min (100 °C→room temp); 0.5 °C/min (below room temp) |
| Mixing speed [rpm] | 200–1500 | 200–1500 | – |
| Mixing orbit [mm] | 3 | 3 | – |
| Display | TFT | TFT | TFT |
| Program | 9 | 9 | 9 |
| Overheating protection [°C] | 150 | 150 | 150 |
| Voltage, Frequency | 110/220V, 50/60Hz | 110/220V, 50/60Hz | 110/220V, 50/60Hz |
| Dimension [mm] | 200×235×120 | 200×235×120 | 200×235×120 |
| Weight [kg] | 7.3 | 7.3 | 7.3 |
| Operating temperature [°C] | 10–40 | 10–40 | 10–40 |
| Operating humidity [% RH] | <80 | <80 | <80 |
