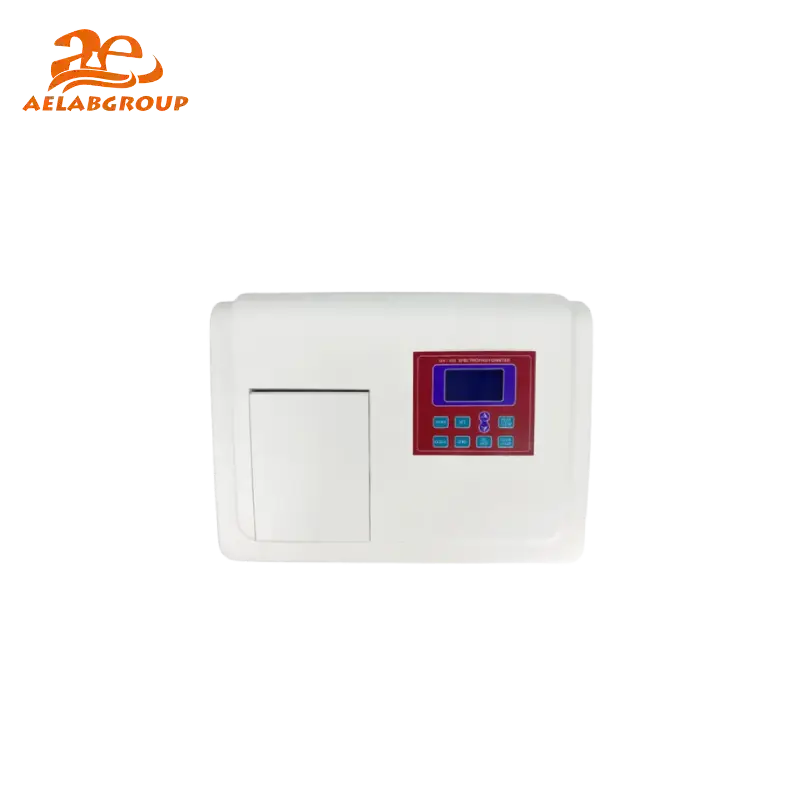

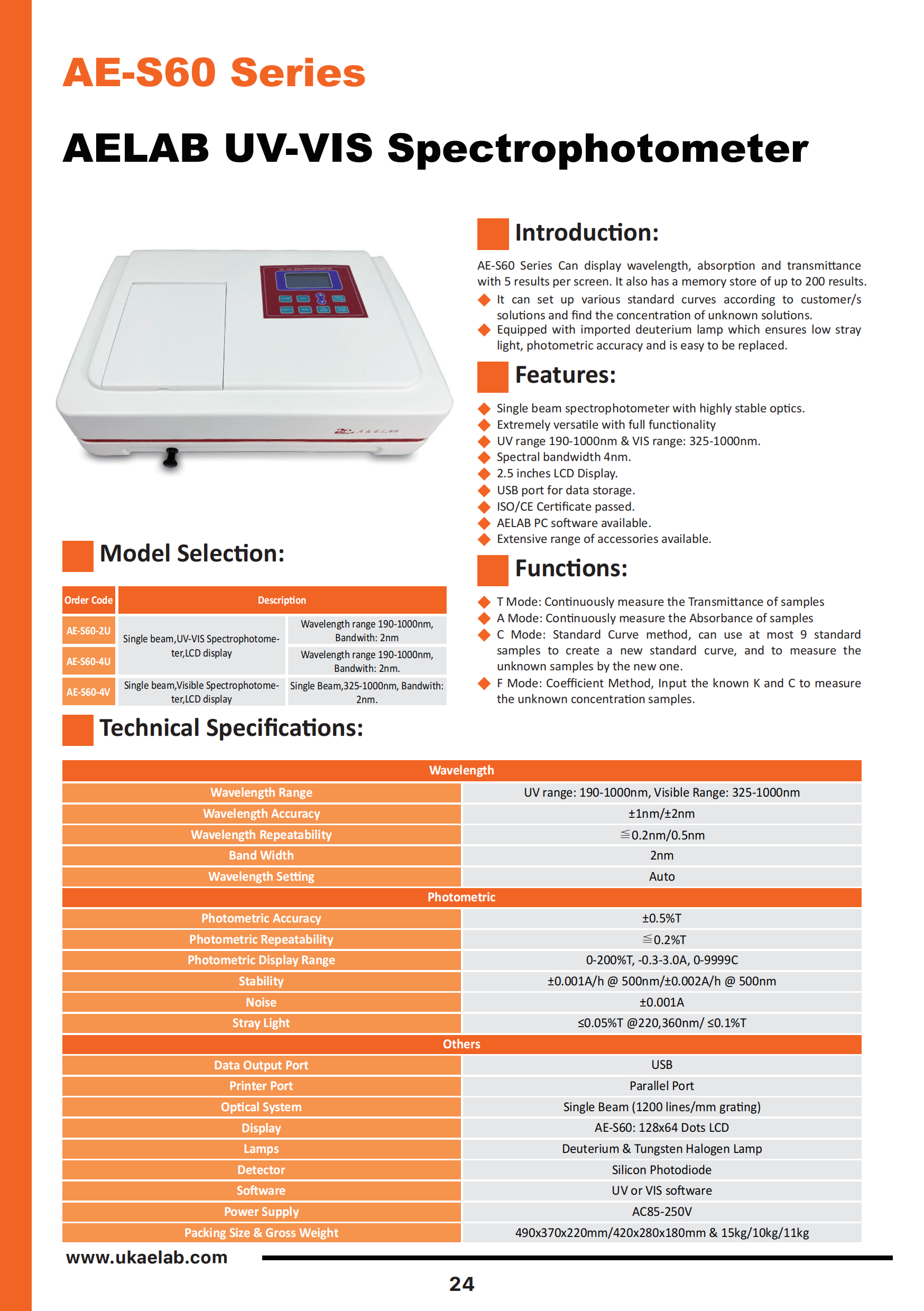

UV-VIS Spectrophotometer AE-S60 Series

AELAB UV-VIS Spectrophotometer AE-S60 , Series Can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.

Modles : AE-S60-2U ~AE-S60-4V~AE-S60-4U

Quantity:

Send Email

UV-VIS Spectrophotometer AE-S60 Series Can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.

It can set up various standard curves according to customer/s solutions and find the concentration of unknown solutions.

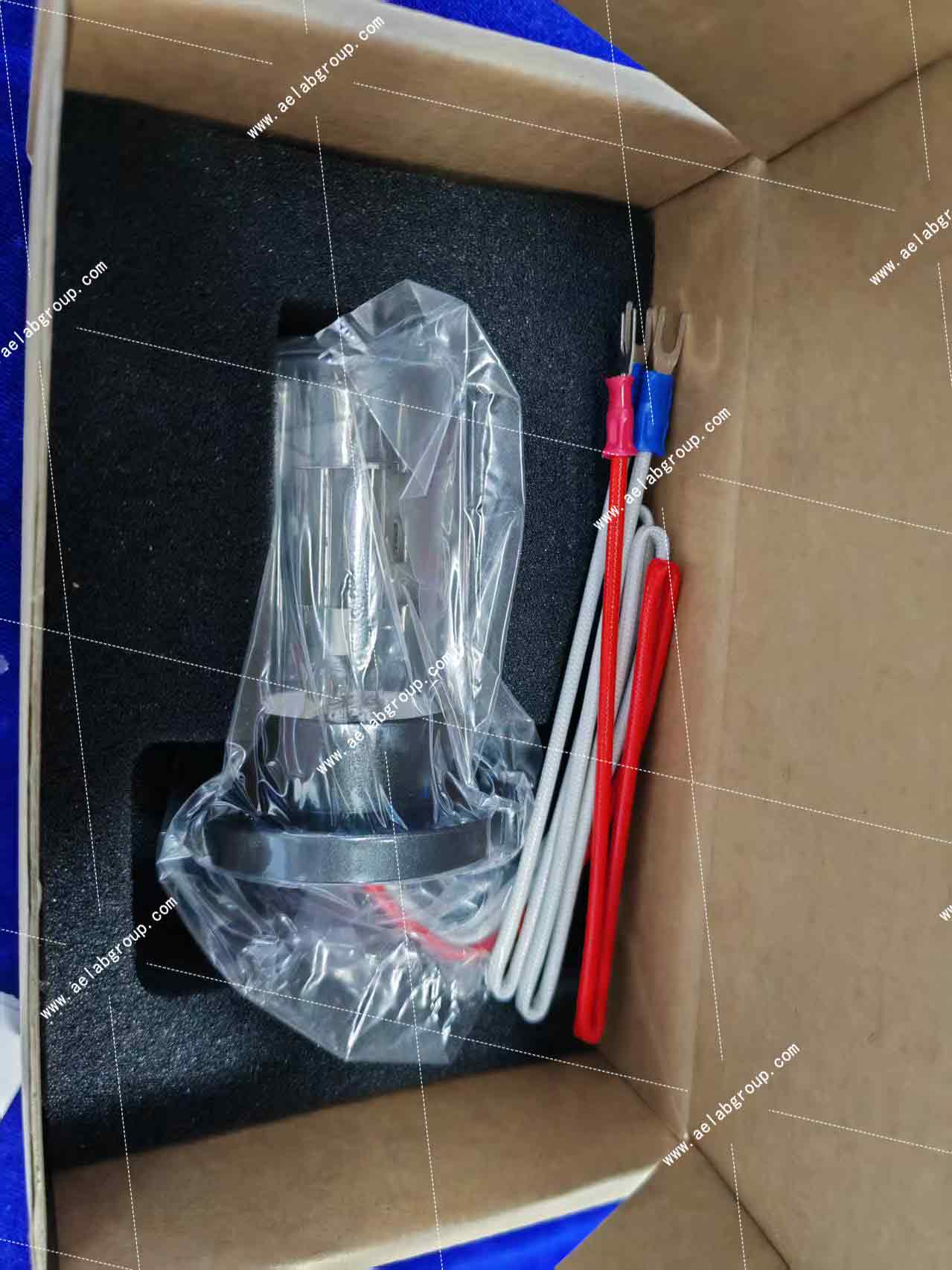

Equipped with imported deuterium lamp which ensures low stray light, photometric accuracy and is easy to be replaced.

Features:

Single beam spectrophotometer with highly stable optics.
Extremely versatile with full functionality from.
UV range 190-1000nm & VIS range: 325-1000nm.
Spectral bandwidth 4nm.
2.5 inches LCD Display.
USB port for data storage.
ISO/CE Certificate passed.
AELAB PC software available.
Extensive range of accessories available.

Functions:

T Mode: Continuously measure the Transmittance of samples
A Mode: Continuously measure the Absorbance of samples
C Mode: Standard Curve method, can use at most 9 standard samples to create a new standard curve, and to measure the unknown samples by the new one.
F Mode: Coefficient Method, Input the known K and C to measure the unknown concentration samples.

Order Code :

Order Code

Description

AE-S60-2U

AE-S60-4U

Single beam,UV-VIS Spectrophotometer,LCD display

Wavelength range 190-1000nm, Bandwith: 2nm

AE-S60-4V

Single beam,Visible Spectrophotometer,LCD display

Single Beam,325-1000nm, Bandwith: 2nm.

Specifications :

Wavelength
Wavelength Range	UV range: 190-1000nm
Wavelength Range	Visible Range: 325-1000nm
Wavelength Accuracy	±1nm/±2nm
Wavelength Repeatability	≦0.2nm/0.5nm
Band Width	2nm
Wavelength Setting	Auto
Photometric
Photometric Accuracy	±0.5%T
Photometric Repeatability	≦0.2%T
Photometric Display Range	0-200%T, -0.3-3.0A, 0-9999C
Stability	±0.001A/h @ 500nm/±0.002A/h @ 500nm
Noise	±0.001A
Stray Light	≤0.05%T @220,360nm/ ≤0.1%T
Others
Data Output Port	USB
Printer Port	Parallel Port
Optical System	Single Beam (1200 lines/mm grating)
Display	AE-S60: 128x64 Dots LCD
Lamps	Deuterium & Tungsten Halogen Lamp
Detector	Silicon Photodiode
Software	UV or VIS software
Power Supply	AC85-250V
Packing Size & Gross Weight	490370220mm/420x280x180mm & 15kg/10kg/11kg

Wavelength
Wavelength Range	UV range: 190-1000nm
Wavelength Range	Visible Range: 325-1000nm
Wavelength Accuracy	±1nm/±2nm
Wavelength Repeatability	≦0.2nm/0.5nm
Band Width	2nm
Wavelength Setting	Auto
Photometric
Photometric Accuracy	±0.5%T
Photometric Repeatability	≦0.2%T
Photometric Display Range	0-200%T, -0.3-3.0A, 0-9999C
Stability	±0.001A/h @ 500nm/±0.002A/h @ 500nm
Noise	±0.001A
Stray Light	≤0.05%T @220,360nm/ ≤0.1%T
Others
Data Output Port	USB
Printer Port	Parallel Port
Optical System	Single Beam (1200 lines/mm grating)
Display	AE-S60: 128x64 Dots LCD
Lamps	Deuterium & Tungsten Halogen Lamp
Detector	Silicon Photodiode
Software	UV or VIS software
Power Supply	AC85-250V
Packing Size & Gross Weight	490370220mm/420x280x180mm & 15kg/10kg/11kg
