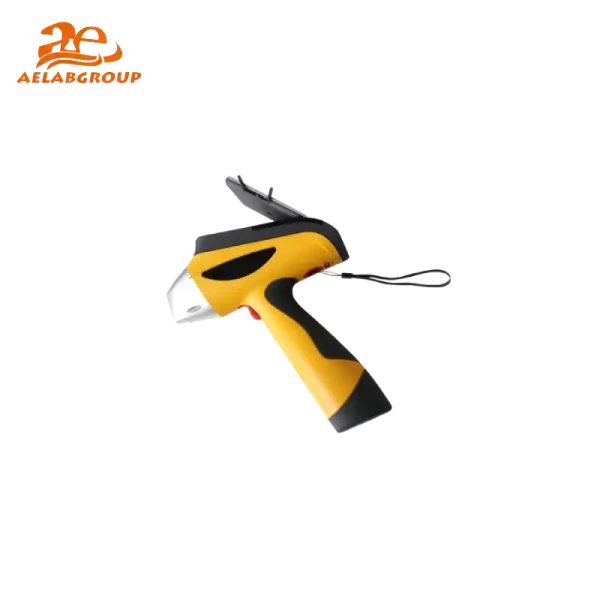

EXPLORER 7000 Handheld alloy analyzer is the first to use large-screen,high-resolution LCD and the new digital signal processor. The minimum detection limits make its performance as great as the desktop. With small size and light weight, EXPLORER is portable for testing and suitable for analyzing different kinds of alloy and Ore. It can make accurate and nondestructive detection on a variety of precious metal alloys, low alloy steel, stainless steel, tool steel, chrome molybdenum steel, nickel alloys, cobalt alloys, nickel cobalt-resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, etc.
Knowing the materials composition and alloy kind in one second. Rapid detection on aluminum and magnesium alloy grades is possible and it allows to make reliable identification and confirmation of the material (PM) and precisely control the materials quality.
Application fields:
Application advantages:
Better Performance:
Specifications :
|
Model
|
EXPLORER 7000
|
|
Analytical Method
|
Energy dispersive X ray fluorescence analytical Method
|
|
Elements Measuring range
|
Atomic number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be measured
|
|
Simultaneous detector elements
|
Simultaneous analysis 40 elements
|
|
Microcomputer system
|
Customized system; CPU: 1G ; system memory: 1G;extended stored maximum support 32G ; standard 4G tor mass storage data
|
|
The content range
|
Ppm~99.99%
|
|
The detection time
|
1-60 seconds (a second report results)
|
|
A built-in system
|
GPS, WIFI, Wireless
|
|
Power Supply
|
Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh super battery with wide
voltage 110V一220V universal adapter for recharging power supply
|
|
Detection Objective
|
Solid, liquid, powder
|
|
Detector
|
SDD detector or Fast-SDD detector (optional)
|
|
Detector resolution
|
Minimum can reach 128ev
|
|
The excitation source
|
50KV/200uA- silver target end window integrated miniature X ray tube and high voltage power supply
|
|
Collimator and filter
|
Collimator diameter are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
|
|
Video system
|
500W pixel high resolution camera
|
|
Display screen
|
Brand new 5 inch transflective LCD touch screen, the resolution is 1080x720
|
|
Detection limit
|
The minimum detection limits at 1-500ppm
|
|
Safety
|
Multiple safety protection, no test, no radiation, radiation levels at work are far below the international standards, and has no
sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument
|
|
Specialty
|
Ore special edition analysis software, using intelligent one key test
|
|
Convenience of application
|
Key intelligent matching the best curve that no need to select curve
|
|
Data transmission
|
Digital multi-channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be
connected with a desktop computer
|
|
Operating ambient humidity
|
≤90%
|
|
Operating environmental temperature
|
-20°C-+50°C
|
|
Instrument dimension
|
244mm (Length) x 90mm (Width) x 330m (Height)
|
|
Instrument weight
|
1.7KG
|
|
Intelligent warming signals lndicator system
|
Green light means power on, red flushing means testing and yellow flushing means the problems
|
|
Accessories
|
Three-military-protection-box is compression, waterproof and shock absorption. Universal charger and car charger, 4G SD memory
card and card reader
Two Lithium battery and charger, PDA accessories, radiation shield. Optional accessories: the large battery, seat type test
support, Wireless printer, mil, manual pressure machine, and other options can to chosen…
|
|
Model
|
EXPLORER 7000
|
|
Analytical Method
|
Energy dispersive X ray fluorescence analytical Method
|
|
Elements Measuring range
|
Atomic number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be measured
|
|
Simultaneous detector elements
|
Simultaneous analysis 40 elements
|
|
Microcomputer system
|
Customized system; CPU: 1G ; system memory: 1G;extended stored maximum support 32G ; standard 4G tor mass storage data
|
|
The content range
|
Ppm~99.99%
|
|
The detection time
|
1-60 seconds (a second report results)
|
|
A built-in system
|
GPS, WIFI, Wireless
|
|
Power Supply
|
Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh super battery with wide
voltage 110V一220V universal adapter for recharging power supply
|
|
Detection Objective
|
Solid, liquid, powder
|
|
Detector
|
SDD detector or Fast-SDD detector (optional)
|
|
Detector resolution
|
Minimum can reach 128ev
|
|
The excitation source
|
50KV/200uA- silver target end window integrated miniature X ray tube and high voltage power supply
|
|
Collimator and filter
|
Collimator diameter are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
|
|
Video system
|
500W pixel high resolution camera
|
|
Display screen
|
Brand new 5 inch transflective LCD touch screen, the resolution is 1080x720
|
|
Detection limit
|
The minimum detection limits at 1-500ppm
|
|
Safety
|
Multiple safety protection, no test, no radiation, radiation levels at work are far below the international standards, and has no
sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument
|
|
Specialty
|
Ore special edition analysis software, using intelligent one key test
|
|
Convenience of application
|
Key intelligent matching the best curve that no need to select curve
|
|
Data transmission
|
Digital multi-channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be
connected with a desktop computer
|
|
Operating ambient humidity
|
≤90%
|
|
Operating environmental temperature
|
-20°C-+50°C
|
|
Instrument dimension
|
244mm (Length) x 90mm (Width) x 330m (Height)
|
|
Instrument weight
|
1.7KG
|
|
Intelligent warming signals lndicator system
|
Green light means power on, red flushing means testing and yellow flushing means the problems
|
|
Accessories
|
Three-military-protection-box is compression, waterproof and shock absorption. Universal charger and car charger, 4G SD memory
card and card reader
Two Lithium battery and charger, PDA accessories, radiation shield. Optional accessories: the large battery, seat type test
support, Wireless printer, mil, manual pressure machine, and other options can to chosen…
|
