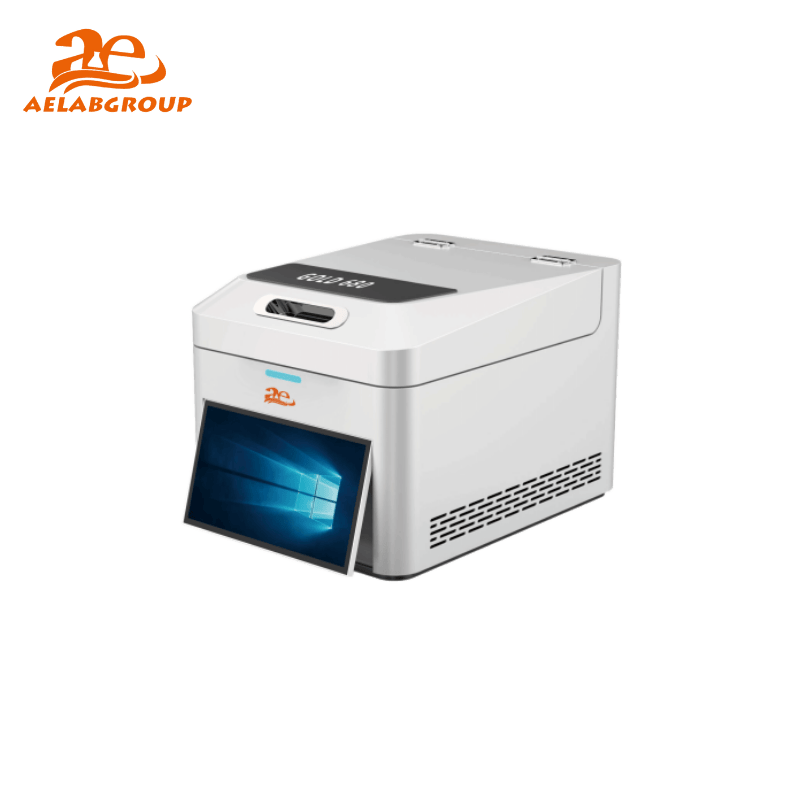

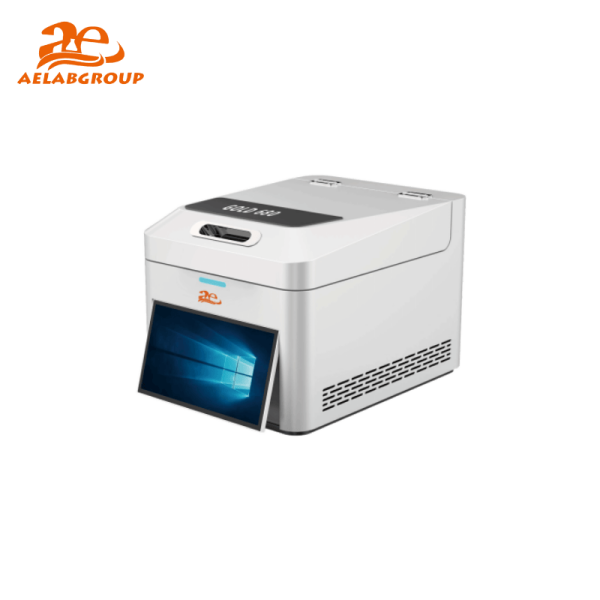

The AELAB X-Fluorescence Spectrum Analyzer CUBE680 is a high-precision, non-destructive testing device designed for rapid and reliable analysis of gold and other precious metals. Utilizing advanced XRF (X-ray fluorescence) technology, the CUBE680 provides accurate composition data and karat identification within seconds, making it an indispensable tool for industries where trust and precision are paramount. Its compact design, user-friendly interface, and fast testing capability allow jewelers, pawnbrokers, gold dealers, and refineries to verify purity, detect counterfeits, and ensure authenticity with ease. Beyond gold, it supports analysis of silver, platinum, palladium, and other valuable alloys, offering comprehensive metal testing in one device.
Features:
Specifications :
| Model | CUBE680 |
| Analysis Range | 0.01% to 99.9% |
| Accuracy | 0.05%(Au≥96%) |
| Sample Form | Solid, powder |
| Tube Voltage | 5KV ~ 50KV |
| High Voltage Power Supply | 0 ~ 50KV |
| Camera | HD camera |
| Filters | Selectable customized switches |
| Detector Type | Si - PIN Detector Made in China |
| Multichannel Analyzer | Digital multichannel |
| Sample Chamber Size | 310 * 230 * 90 (mm) |
| Test Time | 5 ~ 60sec |
| Measuring Element | 74 elements:Au,Ag,Cu,Zn,Ni,Cd,Sn,Fe, Re, W,Ru,Os,In,Mn,Rh,Pt,Pb,Pd,Co,Sb,Cr,Ir,Ge, Hg,Ti,Mo......
(For use in the precious metals industry only) |
| Analysis Software | Qualitative and quantitative analysis software |
| External Dimensions | 395 * 350 * 340 (mm) |
| Weight | 25Kg |
| Ambient Temperature | 5 ° C ~ 30 ° C (Suggested that in air conditioning room) |
| Relative Humidity | 15% ~ 85% |
| Power Requirements | AC 220V ± 5V, 50/ 60 Hz, No high power electromagnetic and vibration interference sources nearby |
| Model | CUBE680 |
| Analysis Range | 0.01% to 99.9% |
| Accuracy | 0.05%(Au≥96%) |
| Sample Form | Solid, powder |
| Tube Voltage | 5KV ~ 50KV |
| High Voltage Power Supply | 0 ~ 50KV |
| Camera | HD camera |
| Filters | Selectable customized switches |
| Detector Type | Si - PIN Detector Made in China |
| Multichannel Analyzer | Digital multichannel |
| Sample Chamber Size | 310 * 230 * 90 (mm) |
| Test Time | 5 ~ 60sec |
| Measuring Element | 74 elements:Au,Ag,Cu,Zn,Ni,Cd,Sn,Fe, Re, W,Ru,Os,In,Mn,Rh,Pt,Pb,Pd,Co,Sb,Cr,Ir,Ge, Hg,Ti,Mo......
(For use in the precious metals industry only) |
| Analysis Software | Qualitative and quantitative analysis software |
| External Dimensions | 395 * 350 * 340 (mm) |
| Weight | 25Kg |
| Ambient Temperature | 5 ° C ~ 30 ° C (Suggested that in air conditioning room) |
| Relative Humidity | 15% ~ 85% |
| Power Requirements | AC 220V ± 5V, 50/ 60 Hz, No high power electromagnetic and vibration interference sources nearby |
