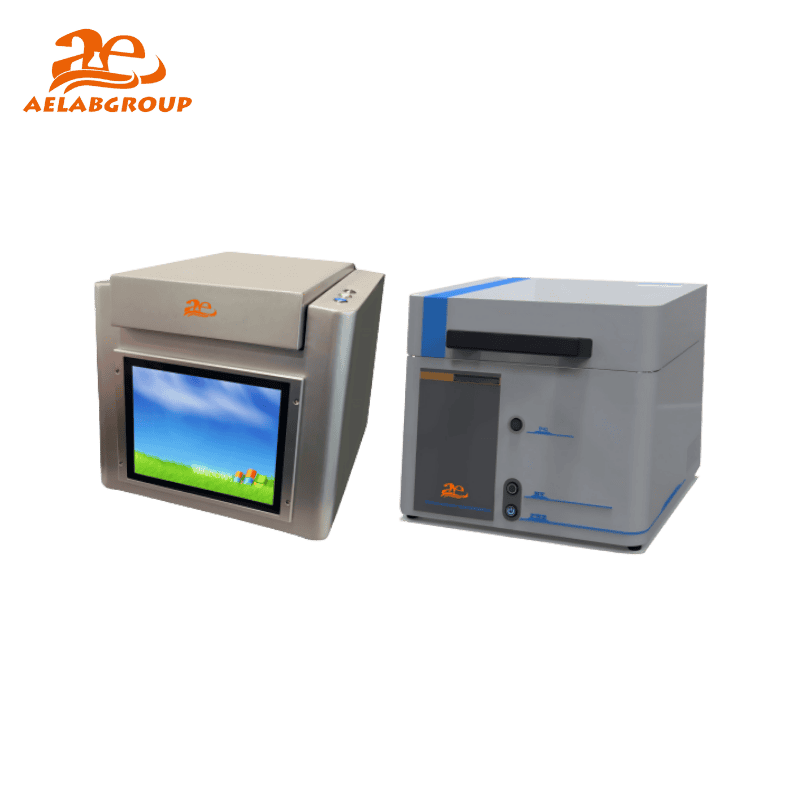

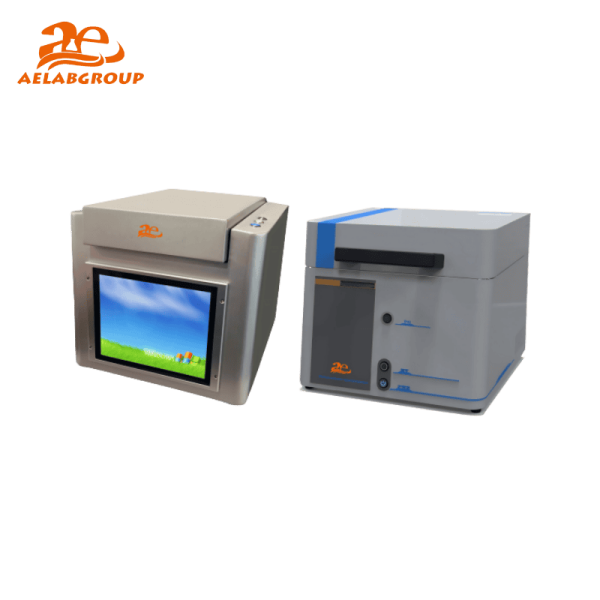

The AELAB X-Fluorescence Spectrum Analyzer CUBE800/CUBE900 is a high-performance, non-destructive testing system designed for accurate identification of gold and other precious metals. Powered by advanced XRF technology, it provides rapid and reliable results for metal composition and purity. These models are widely applied in the jewelry and precious metals industry for tasks such as karat verification, authenticity testing of gold, silver, platinum, and palladium, as well as detection of counterfeit or plated items. With their precise measurement capability, user-friendly interface, and durable design, the CUBE800 and CUBE900 offer jewelers, pawnbrokers, gold dealers, and refineries an efficient solution for daily operations that require dependable quality assurance.
Features:
Specifications :
| Model | CUBE800 | CUBE900 |
| Analysis Range | 0.01% to 99.99% | 0.01% to 99.99% |
| Accuracy | 0.1%(Au≥96%) | 0.1%(Au≥96%) |
| Sample Form | Solid | Solid |
| Tube Voltage | 5KV ~ 50KV | 5KV ~ 50KV |
| High Voltage Power Supply | 0 ~ 50KV | 0 ~ 50KV |
| Camera | HD camera | HD camera |
| Filters | Selectable customized switches | Selectable customized switches |
| Detector Type | Proportional counter tube | Proportional counter tube |
| Multichannel Analyzer | Multi channel simulation | Multi channel simulation |
| Sample Chamber Size | 310 * 280 * 90 (mm) | 310 * 280 * 90 (mm) |
| Test Time | 5 ~ 60sec | 5 ~ 60sec |
| Measuring Element | Au Ag Pt Pd Cu (For use in the precious metals industry only) | Au Ag Pt Pd Cu (For use in the precious metals industry only) |
| Analysis Software | Keyray qualitative and quantitative analysis software | Keyray qualitative and quantitative analysis software |
| External Dimensions | 400 * 430 * 350 (mm) | 400 * 430 * 350 (mm) |
| Weight | 33Kg | 33Kg |
| Model | CUBE800 | CUBE900 |
| Analysis Range | 0.01% to 99.99% | 0.01% to 99.99% |
| Accuracy | 0.1%(Au≥96%) | 0.1%(Au≥96%) |
| Sample Form | Solid | Solid |
| Tube Voltage | 5KV ~ 50KV | 5KV ~ 50KV |
| High Voltage Power Supply | 0 ~ 50KV | 0 ~ 50KV |
| Camera | HD camera | HD camera |
| Filters | Selectable customized switches | Selectable customized switches |
| Detector Type | Proportional counter tube | Proportional counter tube |
| Multichannel Analyzer | Multi channel simulation | Multi channel simulation |
| Sample Chamber Size | 310 * 280 * 90 (mm) | 310 * 280 * 90 (mm) |
| Test Time | 5 ~ 60sec | 5 ~ 60sec |
| Measuring Element | Au Ag Pt Pd Cu (For use in the precious metals industry only) | Au Ag Pt Pd Cu (For use in the precious metals industry only) |
| Analysis Software | Keyray qualitative and quantitative analysis software | Keyray qualitative and quantitative analysis software |
| External Dimensions | 400 * 430 * 350 (mm) | 400 * 430 * 350 (mm) |
| Weight | 33Kg | 33Kg |
