The AELAB EDS3900C Precious Metal Analyzer provides precise elemental composition measurement for gold, jewelry, and alloy samples using non-destructive analytical technology. The instrument integrates advanced detection electronics, HD optical positioning, and professional analysis software to ensure reliable results for laboratory and industrial environments.
The AELAB EDS3900C Precious Metal Analyzer supports rapid testing with minimal sample preparation, making it suitable for jewelry manufacturing, recycling, trading, and quality inspection applications where accuracy and repeatability are critical.

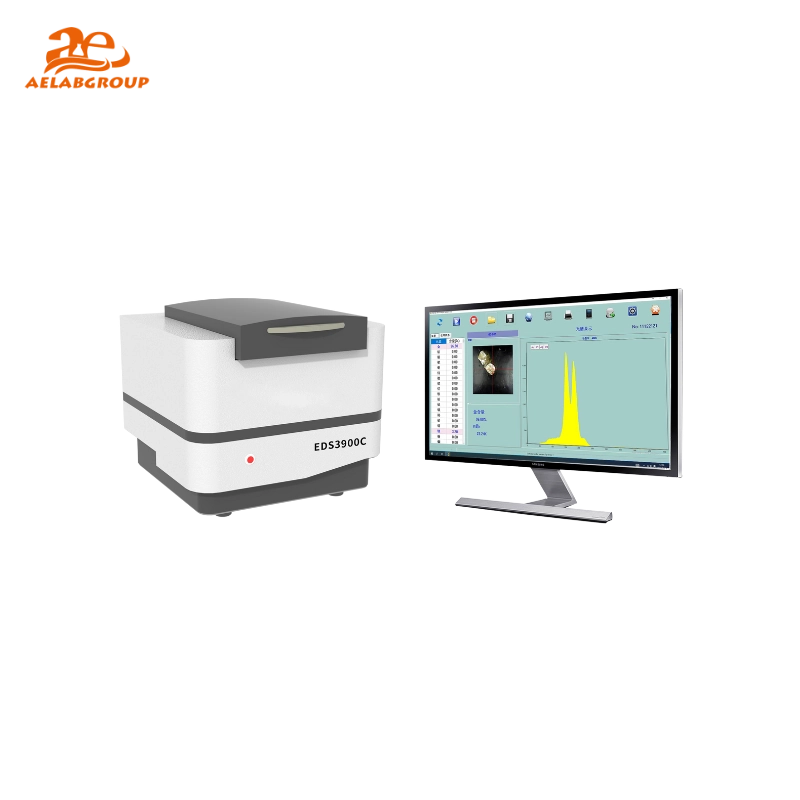

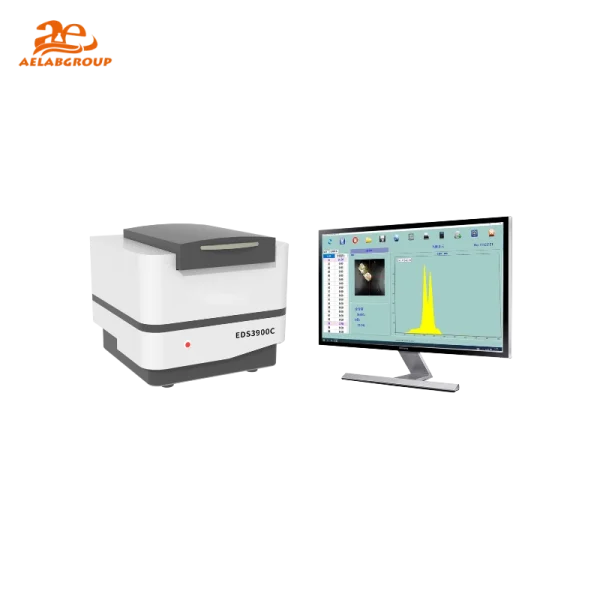

The AELAB EDS3900C Precious Metal Analyzer features a compact benchtop structure with a reinforced enclosure. The system integrates an HD camera for accurate sample positioning, a sealed sample chamber for stable measurement, and a proportional counter tube detector optimized for precious metal analysis.
The AELAB EDS3900C Precious Metal Analyzer operates by exciting the sample using controlled X-ray tube voltage and measuring the characteristic fluorescence emitted by each element. A digital multichannel analyzer processes the energy signals, while the software performs qualitative element identification and quantitative concentration calculations.
The AELAB EDS3900C Precious Metal Analyzer integrates with dedicated analysis software for data visualization, reporting, and data archiving. The system supports laboratory data management workflows and standardized analytical reporting for quality control environments.
The AELAB EDS3900C Precious Metal Analyzer is used for gold purity verification, jewelry alloy testing, recycling material evaluation, precious metal trading inspection, and laboratory-based elemental analysis in metallurgical and materials science applications.
The AELAB EDS3900C Precious Metal Analyzer is designed to support laboratory quality systems, offering stable analytical performance, controlled operating conditions, and traceable measurement processes suitable for ISO- and GLP-oriented environments.
Specifications :
| Analysis Range | 0.01% to 99.99% |
| Accuracy | 0.07% (Au ≥96%) |
| Sample Form | Solid, Powder |
| Tube Voltage | 5 kV ~50 kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Camera | HD Camera |
| Filters | Selectable Customized Switches |
| Detector Type | New Proportional Counter Tube |
| Multichannel Analyzer | Digital Multichannel |
| Sample Chamber Size | 320 × 250 × 120 mm |
| Test Time | 5 ~ 60 sec |
| Measuring Elements | 24 elements: Au, Ag, Cu, Zn, Ni, Cd, Sn, Fe, Re, W, Ru, Os, n, Mn, Rh, Pt, Pb, Pd, Co, Sb, Cr, Ir, Ge, Hg (Precious metals industry use only) |
| Analysis Software | KQualitative and Quantitative Analysis Software |
| External Dimensions | 450 × 430 × 390 mm |
| Weight | 36 kg |
| Analysis Range | 0.01% to 99.99% |
| Accuracy | 0.07% (Au ≥96%) |
| Sample Form | Solid, Powder |
| Tube Voltage | 5 kV ~50 kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Camera | HD Camera |
| Filters | Selectable Customized Switches |
| Detector Type | New Proportional Counter Tube |
| Multichannel Analyzer | Digital Multichannel |
| Sample Chamber Size | 320 × 250 × 120 mm |
| Test Time | 5 ~ 60 sec |
| Measuring Elements | 24 elements: Au, Ag, Cu, Zn, Ni, Cd, Sn, Fe, Re, W, Ru, Os, n, Mn, Rh, Pt, Pb, Pd, Co, Sb, Cr, Ir, Ge, Hg (Precious metals industry use only) |
| Analysis Software | KQualitative and Quantitative Analysis Software |
| External Dimensions | 450 × 430 × 390 mm |
| Weight | 36 kg |
