The AELAB EDS5800C Precious Metal Analyzer performs precise elemental composition analysis for precious metals using X-ray fluorescence technology. Designed for laboratory and industrial environments, the AELAB EDS5800C ensures reliable quantitative results across a wide concentration range.
With digital multichannel analysis, proportional counter detection, and Key ray analysis software, the AELAB EDS5800C Precious Metal Analyzer supports professional gold, silver, and platinum testing applications with controlled measurement accuracy.

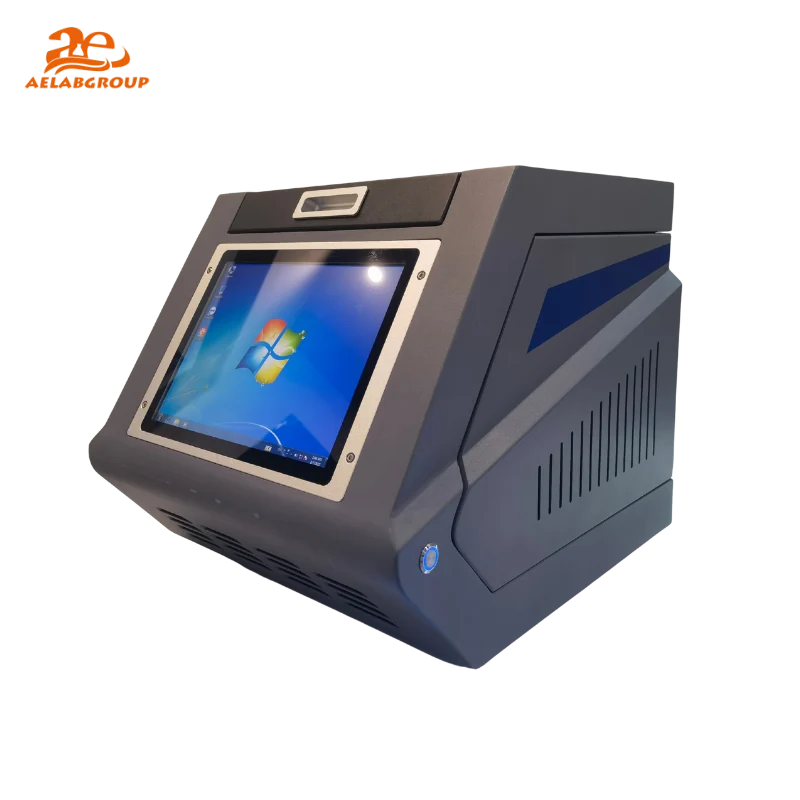

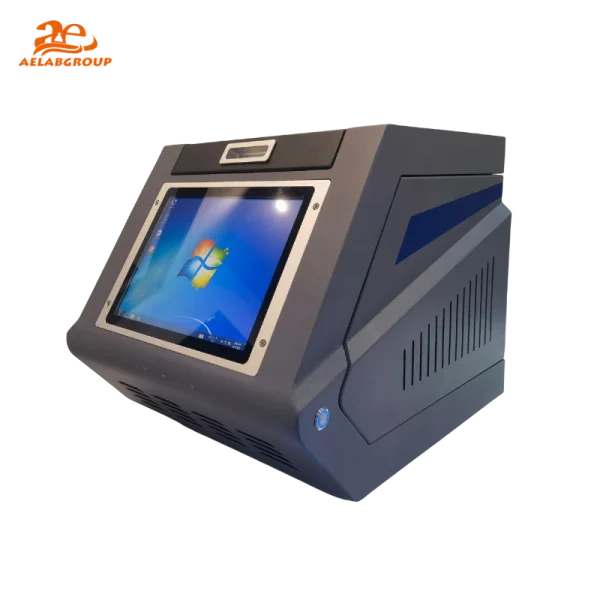

The AELAB EDS5800C Precious Metal Analyzer features a compact enclosed structure with integrated HD camera positioning. The rigid housing accommodates a proportional counter tube detector and high-voltage X-ray power supply, ensuring mechanical stability during analysis.
The AELAB EDS5800C Precious Metal Analyzer measures characteristic X-ray emissions generated when samples are excited by a controlled X-ray tube. Elemental concentrations are quantified through digital multichannel spectral processing and calibrated software algorithms.
The AELAB EDS5800C Precious Metal Analyzer integrates with qualitative and quantitative analysis software for data processing, reporting, and archival of test results in laboratory workflows.
The AELAB EDS5800C Precious Metal Analyzer is used for gold purity verification, jewelry quality control, recycling material evaluation, precious metal refining, and laboratory elemental verification in the precious metals industry.
The AELAB EDS5800C Precious Metal Analyzer is designed for laboratory operation under controlled environmental conditions and supports standardized analytical workflows aligned with ISO, CE, and GLP laboratory practices.
Specifications :
| Instrument Type | Precious Metal Analyzer |
| Analysis Range | 0.01% to 99.99% |
| Accuracy | 0.05% to 0.1% (Au ≥96%) |
| Sample Form | Solid, Powder, Liquid |
| Tube Voltage | 5 kV to 50 kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Detector Type | Proportional Counter Tube |
| Multichannel Analyzer | Digital Multichannel |
| Camera | HD Camera |
| Filters | Selectable Customized Switches |
| Sample Chamber Size (mm) | 310 × 270 × 90 |
| Test Time | 5 ~ 60 s |
| Measuring Elements | Au, Ag, Pt, Pd, Ir, Cu (Precious metals industry only) |
| Analysis Software | Qualitative and Quantitative Analysis Software |
| External Dimensions (mm) | 510 × 400 × 420 |
| Weight | 36 kg |
| Ambient Temperature | 5 °C ~ 38 °C (Suggested air-conditioned environment) |
| Relative Humidity | 15% ~ 85% |
| Power Requirements | AC 220 V ±5 V, 50/60 Hz |
| Environmental Requirement | No high power electromagnetic or vibration interference sources nearby |
| Instrument Type | Precious Metal Analyzer |
| Analysis Range | 0.01% to 99.99% |
| Accuracy | 0.05% to 0.1% (Au ≥96%) |
| Sample Form | Solid, Powder, Liquid |
| Tube Voltage | 5 kV to 50 kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Detector Type | Proportional Counter Tube |
| Multichannel Analyzer | Digital Multichannel |
| Camera | HD Camera |
| Filters | Selectable Customized Switches |
| Sample Chamber Size (mm) | 310 × 270 × 90 |
| Test Time | 5 ~ 60 s |
| Measuring Elements | Au, Ag, Pt, Pd, Ir, Cu (Precious metals industry only) |
| Analysis Software | Qualitative and Quantitative Analysis Software |
| External Dimensions (mm) | 510 × 400 × 420 |
| Weight | 36 kg |
| Ambient Temperature | 5 °C ~ 38 °C (Suggested air-conditioned environment) |
| Relative Humidity | 15% ~ 85% |
| Power Requirements | AC 220 V ±5 V, 50/60 Hz |
| Environmental Requirement | No high power electromagnetic or vibration interference sources nearby |
