The AELAB EDS7700 Precious Metal Analyzer performs precise X-ray fluorescence analysis for gold and precious metal composition testing. The instrument supports rapid, non-destructive measurement across a wide concentration range, making the AELAB EDS7700 suitable for laboratories, jewelry quality control, and recycling facilities.
Equipped with a digital multichannel analyzer and Si-pin detector, the AELAB EDS7700 Precious Metal Analyzer ensures stable analytical performance, short test times, and reliable quantitative results for precious metal verification.

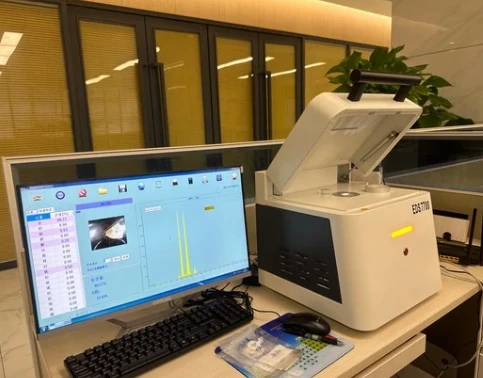

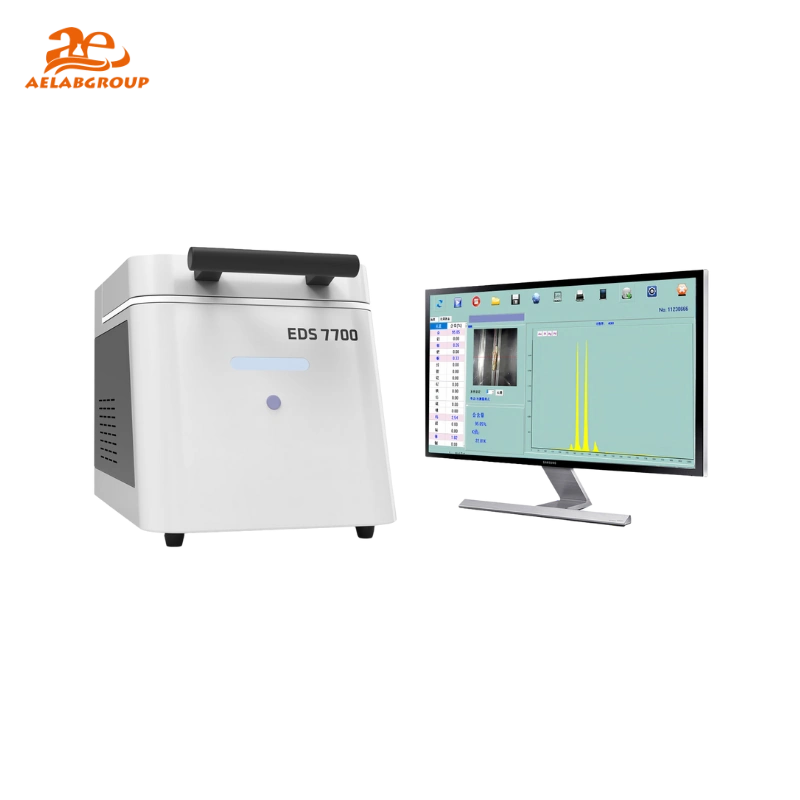

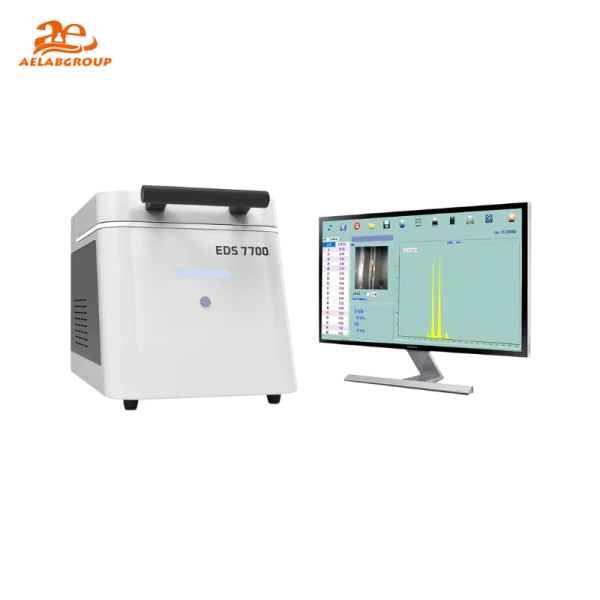

The AELAB EDS7700 features a compact benchtop enclosure with an integrated sample chamber measuring 310 × 270 × 90 mm. The instrument incorporates an HD camera for sample positioning and a selectable filter system optimized for precious metal analysis. The structural design supports stable operation in controlled laboratory environments.
The AELAB EDS7700 Precious Metal Analyzer uses X-ray fluorescence excitation to analyze elemental composition. When irradiated by the X-ray tube operating from 5 kV to 50 kV, samples emit characteristic fluorescence signals detected by the Si-pin detector. The digital multichannel analyzer processes spectral data for qualitative and quantitative analysis.
The AELAB EDS7700 integrates with qualitative and quantitative analysis software for data processing, report generation, and laboratory documentation. The software supports routine quality control workflows in precious metal testing environments.
The AELAB EDS7700 Precious Metal Analyzer is used for gold purity testing, jewelry analysis, precious metal recycling, incoming material inspection, and laboratory quality control. The instrument supports elemental analysis from Sodium (Na) to Uranium (U) within precious metal industry applications.
The AELAB EDS7700 is designed for controlled laboratory environments and supports standardized analytical workflows. Stable power requirements, defined environmental operating conditions, and software-based analysis support consistent and traceable testing results aligned with laboratory quality practices.
Specifications :
| Analysis Range | ppm to 99.99% |
| Accuracy | 0.03% (Au ≥96%) |
| Sample Form | Solid, powder, liquid |
| Tube Voltage | 5 kV ~ 50 kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Camera | HD camera |
| Filters | Selectable customized switches |
| Detector Type | Si-pin |
| Multichannel Analyzer | Digital multichannel |
| Sample Chamber Size (mm) | 310 × 270 × 90 |
| Test Time | 5 ~ 60 s |
| Measuring Element | 82 elements from Sodium (Na) to Uranium (U), up to 26 elements simultaneously each time (for use in the precious metals industry only) |
| Analysis Software | qualitative and quantitative analysis software |
| External Dimensions (mm) | 450 × 400 × 390 |
| Weight | 36 kg |
| Ambient Temperature | 5 °C ~ 30 °C |
| Relative Humidity | 15% ~ 85% |
| Power Requirements | AC 220 V ±5 V, 50/60 Hz; no strong electromagnetic or vibration interference nearby |
| Analysis Range | ppm to 99.99% |
| Accuracy | 0.03% (Au ≥96%) |
| Sample Form | Solid, powder, liquid |
| Tube Voltage | 5 kV ~ 50 kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Camera | HD camera |
| Filters | Selectable customized switches |
| Detector Type | Si-pin |
| Multichannel Analyzer | Digital multichannel |
| Sample Chamber Size (mm) | 310 × 270 × 90 |
| Test Time | 5 ~ 60 s |
| Measuring Element | 82 elements from Sodium (Na) to Uranium (U), up to 26 elements simultaneously each time (for use in the precious metals industry only) |
| Analysis Software | qualitative and quantitative analysis software |
| External Dimensions (mm) | 450 × 400 × 390 |
| Weight | 36 kg |
| Ambient Temperature | 5 °C ~ 30 °C |
| Relative Humidity | 15% ~ 85% |
| Power Requirements | AC 220 V ±5 V, 50/60 Hz; no strong electromagnetic or vibration interference nearby |
