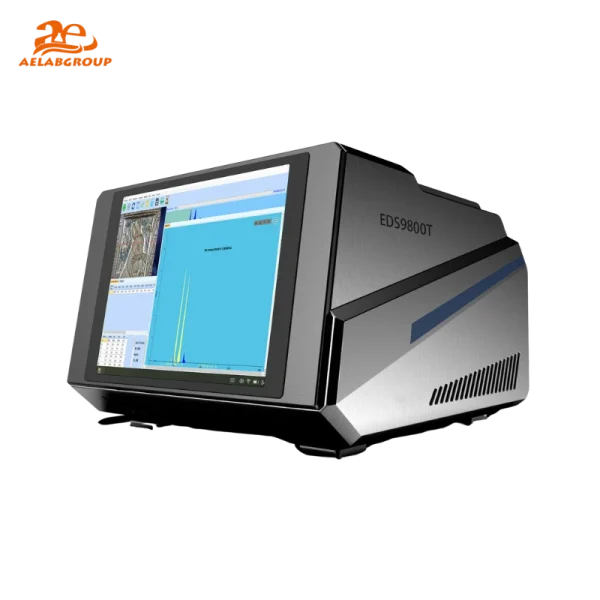

The AELAB EDS9800T Precious Metal Analyzer is a benchtop X – Fluorescence Spectrum Analyzer designed to analyzes precious metal composition and measures elemental concentration for quality control in jewelry, bullion, and alloy verification. With an analysis range from ppm to 99.99% and 0.01% accuracy (Au≥96%), the EDS9800T quantifies trace and major elements with high repeatability.
Built around an SDD detector and digital multichannel acquisition, the AELAB EDS9800T Precious Metal Analyzer stabilizes measurement performance through selectable customized filter switches and a 5 kV to 50 kV tube voltage configuration. Fast test cycles of 5 to 60 seconds support efficient precious metal screening without compromising analytical resolution.

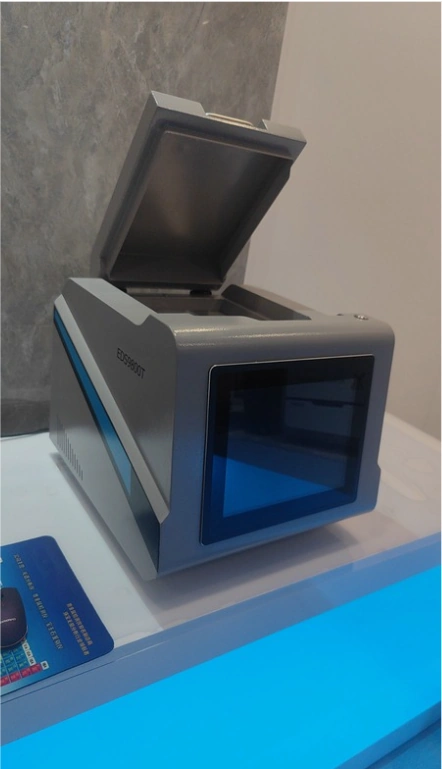

The AELAB EDS9800T Precious Metal Analyzer integrates a compact benchtop enclosure with a controlled sample chamber sized 310 × 270 × 90 mm, supporting stable positioning of solid, powder, and liquid specimens. The system includes an HD camera for visual sample alignment and inspection, enabling precise placement during XRF testing workflows. The instrument dimensions of 480 × 440 × 368 mm and weight of 36 kg support laboratory and production-floor installation.
The AELAB EDS9800T Precious Metal Analyzer performs X-ray fluorescence spectrum analysis by irradiating a sample with an X-ray tube operating at 5 kV to 50 kV. Emitted characteristic fluorescence signals are detected by the SDD detector and processed by the digital multichannel analyzer to quantify elemental composition. The system analyzes 82 measurable elements from sodium (Na) to uranium (U), and supports up to 26 elements simultaneously per measurement cycle (for use in the precious metals industry only).
The AELAB EDS9800T Precious Metal Analyzer includes qualitative and quantitative analysis software for elemental identification and concentration quantification. The software supports standardized analytical workflows suitable for laboratory documentation, quality control reporting, and traceability-driven operations. Integration options beyond the included software are not specified in the provided catalog data.
The AELAB EDS9800T Precious Metal Analyzer is optimized for XRF elemental quantification in precious metal and alloy testing environments. Common applications include gold purity verification, jewelry alloy composition control, bullion material authentication, and multi-element screening where rapid decision-making is required. The EDS9800T supports analysis of solid, powder, and liquid samples, enabling flexible workflows across jewelry manufacturing, recycling, assay laboratories, and material trading operations.
The AELAB EDS9800T Precious Metal Analyzer is designed for controlled laboratory and industrial testing environments, with recommended operating conditions of 5 °C to 38 °C and 15% to 90% relative humidity. The power requirement supports AC220 V ± 10 V or AC110 V ± 10 V at 50 / 60 Hz. To maintain measurement stability, installation should avoid high-power electromagnetic sources and vibration interference. Certification standards (ISO / CE / GLP) and calibration traceability methods are not specified in the provided catalog data and should be verified for formal compliance documentation.
For laboratories and production teams requiring fast, accurate XRF composition verification, the AELAB EDS9800T Precious Metal Analyzer delivers stable multi-element quantification from ppm to 99.99% using SDD detection and software-based analytical processing—supporting confident precious metal testing under controlled quality assurance conditions.
Specifications :
| Parameter | EDS9800T |
|---|---|
| Instrument Type | X - Fluorescence Spectrum Analyzer |
| Analysis Range | ppm to 99.99% |
| Accuracy | 0.01% (Au≥96%) |
| Sample Form | Solid, powder, liquid |
| Tube Voltage | 5kV ~ 50kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Camera | HD camera |
| Filters | Selectable customized switches |
| Detector Type | SDD |
| Resolution | 135 ± 5 eV |
| Multichannel Analyzer | Digital multichannel |
| Sample Chamber Size | 310 × 270 × 90 (mm) |
| Test Time | 5 ~ 60 sec |
| Measuring Element | 82 elements from sodium (Na) to uranium (U) between all elements, Up to 26 elements simultaneously each time (For use in the precious metals industry only) |
| Analysis Software | qualitative and quantitative analysis software |
| External Dimensions | 480 × 440 × 368 (mm) |
| Weight | 36 kg |
| Ambient Temperature | 5 °C ~ 38 °C (Suggested that in air conditioning room) |
| Relative Humidity | 15% ~ 90% |
| Power Requirements | AC220V ± 10V, or AC110V ± 10V, 50 / 60 Hz |
| Installation Requirement | No high power electromagnetic and vibration interference sources nearby |
| Parameter | EDS9800T |
|---|---|
| Instrument Type | X - Fluorescence Spectrum Analyzer |
| Analysis Range | ppm to 99.99% |
| Accuracy | 0.01% (Au≥96%) |
| Sample Form | Solid, powder, liquid |
| Tube Voltage | 5kV ~ 50kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Camera | HD camera |
| Filters | Selectable customized switches |
| Detector Type | SDD |
| Resolution | 135 ± 5 eV |
| Multichannel Analyzer | Digital multichannel |
| Sample Chamber Size | 310 × 270 × 90 (mm) |
| Test Time | 5 ~ 60 sec |
| Measuring Element | 82 elements from sodium (Na) to uranium (U) between all elements, Up to 26 elements simultaneously each time (For use in the precious metals industry only) |
| Analysis Software | qualitative and quantitative analysis software |
| External Dimensions | 480 × 440 × 368 (mm) |
| Weight | 36 kg |
| Ambient Temperature | 5 °C ~ 38 °C (Suggested that in air conditioning room) |
| Relative Humidity | 15% ~ 90% |
| Power Requirements | AC220V ± 10V, or AC110V ± 10V, 50 / 60 Hz |
| Installation Requirement | No high power electromagnetic and vibration interference sources nearby |
