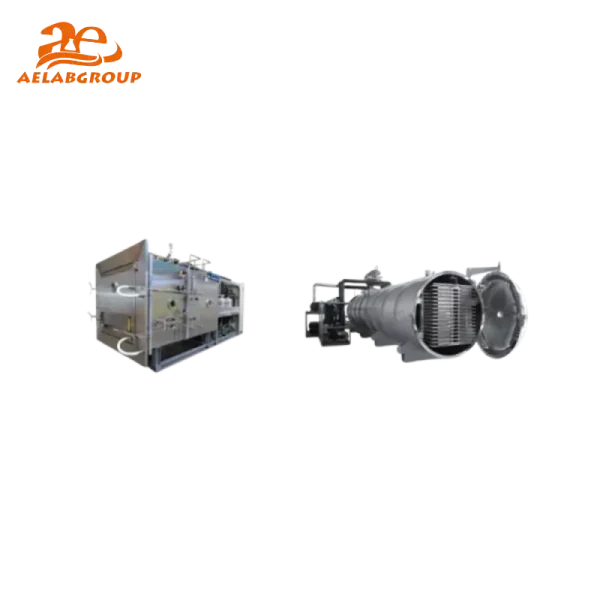

Vacuum Freeze Dryer AE-LYO Series

A Food & Pharmaceutical Vacuum Freeze Dryer removes moisture from frozen materials under vacuum, preserving their quality. Key features include precise temperature control, uniform drying, programmable settings, efficient moisture removal, and durable construction.

Modles : AE-LYO-1~AE-LYO-10 AE-LYO-15~AE-LYO-200

Quantity:

Send Email

A Food & Pharmaceutical Vacuum Freeze Dryer is designed to preserve food and pharmaceutical products by removing moisture. The process begins by freezing the material, then applying a vacuum to turn the ice directly into vapor. This method maintains the material’s original structure and potency. It is particularly useful for keeping products fresh, lightweight, and stable for long-term storage.

features:

Precise Temperature Control: Ensures optimal conditions for freezing and drying, preserving the quality of sensitive materials.
Vacuum System: Creates a low-pressure environment to facilitate the sublimation of ice into vapor.
Uniform Drying: Provides even drying to maintain the integrity and consistency of the product.
Programmable Settings: Allows for customized drying cycles tailored to specific materials and requirements.
Efficient Moisture Removal: Effectively removes moisture without affecting the product’s structure or nutritional value.
Automatic Operation: Many models come with automated controls for ease of use and consistent results.
High-Quality Materials: Built with durable components to handle demanding applications in food and pharmaceutical industries.

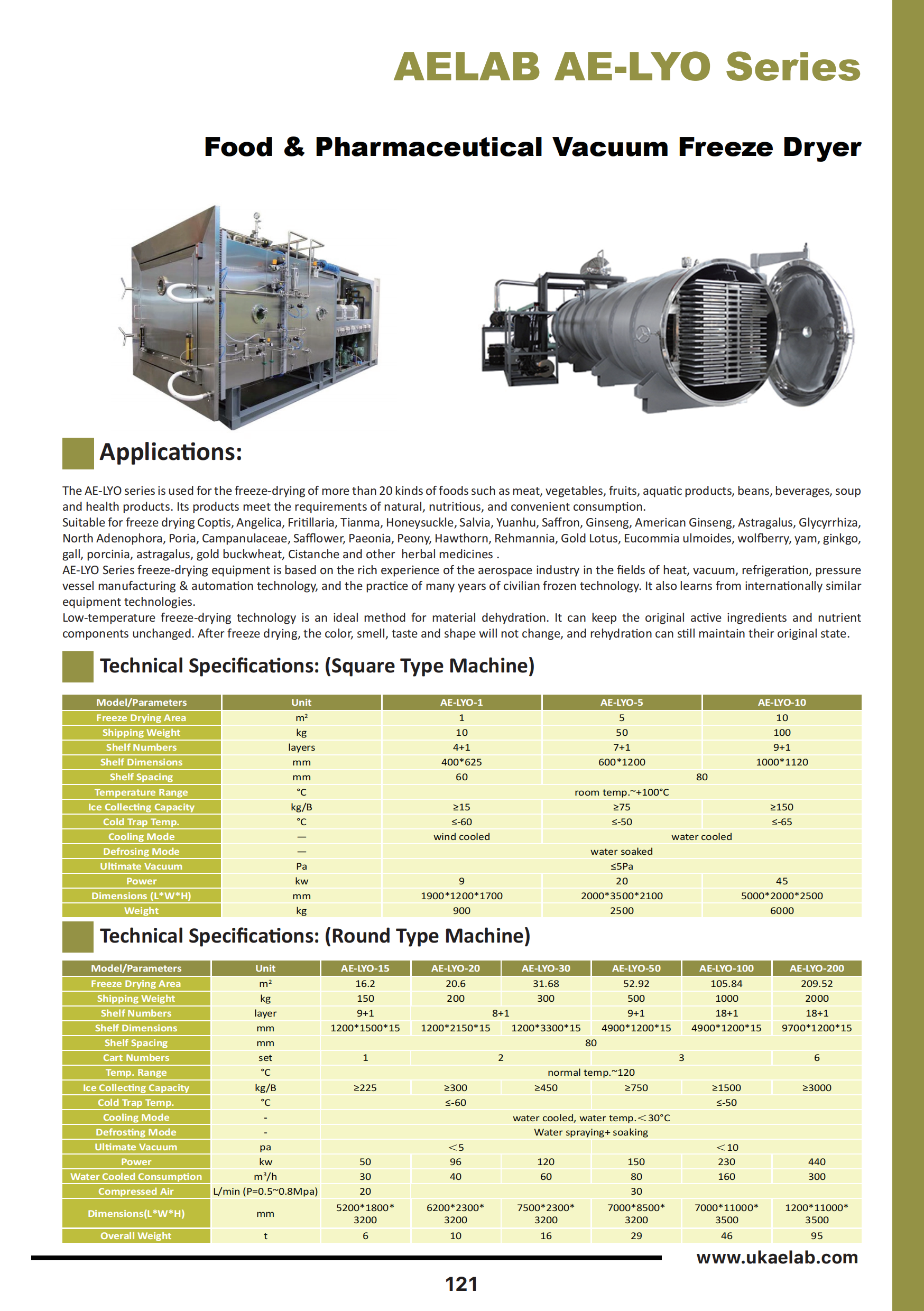

Specifications :

Model/Parameters	Unit	AE-LYO-1	AE-LYO-5	AE-LYO-10
Freeze Drying Area	m2	1	5	10
Shipping Weight	kg	10	50	100
Shelf Numbers	layers	4+1	7+1	9+1
Shelf Dimensions	mm	400*625	600*1200	1000*1120
Shelf Spacing	mm	60	80	80
Temperature Range	℃	room temp.~+100℃
Ice Collecting Capacity	kg/B	≥15	≥75	≥150
Cold Trap Temp.	℃	≤-60	≤-50	≤-65
Cooling Mode	—	wind cooled	water cooled	water cooled
Defrosing Mode	—	water soaked	water soaked	water soaked
Ultimate Vacuum	Pa	≤5Pa
Power	kw	9	20	45
Dimensions (LWH)	mm	190012001700	200035002100	500020002500
Weight	kg	900	2500	6000

Models/Parameters	Unit	AE-LYO-15	AE-LYO-20	AE-LYO-30	AE-LYO-50	AE-LYO-100		AE-LYO-200
Shelf Area	㎡	16.2	20.6	31.68	52.92	105.84		209.52
Shipping Weight	kg	150	200	300	500	1000		2000
Shelf Numbers	layer	9+1	8+1	8+1	9+1	18+1		18+1
Shelf Dimensions	mm	1200150015	1200215015	1200330015	4900120015	4900120015		9700120015
Shelf Spacing	mm	80	80	80	80	80		80
Cart Numbers	set	1	2	2	3	3		6
Temp. Range	℃	normal temp.~120
Ice Collecting Capacity	kg/B	≥225	≥300	≥450	≥750	≥1500		≥3000
Cold Trap Temp.	℃	≤-60	≤-60	≤-60	≤-50	≤-50		≤-50
Cooling Mode	-	water cooled, water temp.＜30℃
Defrosting Mode	-	Water spraying+ soaking
Ultimate Vacuum	pa	＜5				＜10
Power	kw	50	96	120	150	230	440
Water Cooled Consumption	m3/h	30	40	60	80	160	300
Compressed Air	L/min (P=0.5~0.8Mpa)	20	30	30	30	30	30
Dimensions(LWH)	mm	52001800 3200	62002300 3200	75002300 3200	70008500 3200	700011000 3500	120011000 3500
Overall Weight	t	6	10	16	29	46	95
