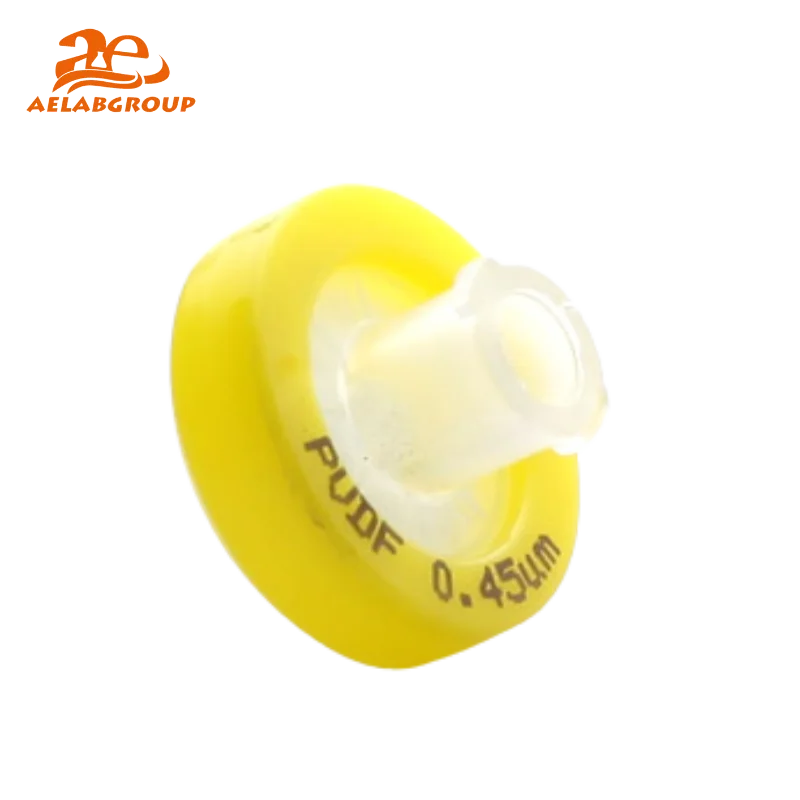

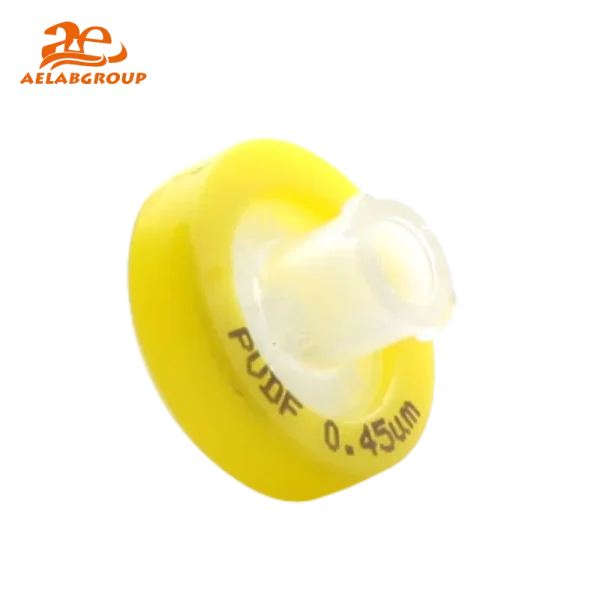

AELAB 13mm Syringe Filter for Precision Laboratory Filtration FBS Series
Product Image
Product Image

AELAB 13mm Syringe Filter for Precision Laboratory Filtration FBS Series

The AELAB 13mm Syringe Filter is a compact, high-performance filtration device designed for small-volume samples. With multiple membrane options including Nylon, PTFE, PES, PVDF, CA, MCE, PP, and Glass Fiber, it ensures accurate, reproducible results across a wide range of laboratory applications. Ideal for micro-sample preparation, HPLC analysis, and sterile filtration, this syringe filter offers exceptional consistency and reliability.
Modles : FBS Series
Instant Quote
whatsapp Whatsapp
Send Email

The AELAB 13mm Syringe Filter is a compact, high-performance filtration device designed for small-volume samples. With multiple membrane options including Nylon, PTFE, PES, PVDF, CA, MCE, PP, and Glass Fiber, it ensures accurate, reproducible results across a wide range of laboratory applications. Ideal for micro-sample preparation, HPLC analysis, and sterile filtration, this syringe filter offers exceptional consistency and reliability.



🔬 How It Works?

The 13mm syringe filter operates by forcing liquid samples through a precision membrane using a standard syringe. Each membrane is optimized for specific applications: hydrophobic PTFE for solvent and gas filtration, hydrophilic PES for aqueous samples, nylon for protein-rich samples, and glass fiber for pre-filtration of viscous or particulate-heavy solutions. This ensures consistent particle removal, sterility, and high-quality analytical results.



💡 Advantages

  • Compact design for micro-volume samples (<200 μl holdup)
  • Wide selection of membranes to match diverse lab needs
  • High chemical resistance and thermal stability
  • Reliable sterile filtration and sample preparation
  • Cost-effective with 100 pcs/pk bulk packaging
  • Trusted performance for analytical and quality control labs



🔍 Recommended Models by Use Case

  • Educational & Routine Labs: Nylon or CA syringe filters for general aqueous sample filtration
  • Pharmaceutical & Biotech Labs: PES and PVDF filters for sterile filtration and protein-based samples
  • Environmental & Food Testing: GF and MCE filters for pre-filtration and particulate removal
  • Chemical & Industrial Labs: PTFE filters for aggressive solvents, acids, and gases
  • HPLC/Chromatography Users: Nylon and PES filters for consistent sample preparation and low extractables



🧪 Ideal For

  • HPLC and chromatography sample preparation
  • Sterile filtration of biological samples
  • Removal of particulates from solvents and buffers
  • Environmental water and air quality testing
  • Food and beverage quality control
  • Pre-filtration of viscous or particulate-rich samples





Parameters 13mm
Effective Filtration Area(cm2) 1.09 Materials of Construction Housing: PP
Maximum Pressure 87psi (6.0 bar) at 20 °C Filtration Media As specified
Maximum Operating Temperature 50 °C Holdup volume (μl) <25

Specifications :

Item Description Packaging
(pcs/pk)
                Nylon66 Syringe Filter (Blue)
FBS13NY022 Pore:0.22μm Diameter: 13mm 100
FBS13NY045 Pore:0.45μm Diameter: 13mm 100
                        PTFE Syringe Filter (Hydrophobic)
FBS13PTFE022H Pore:0.22μm Diameter: 13mm 100
FBS30PTFE045H Pore:0.45μm Diameter: 13mm 100
                   PTFE Syringe Filter (Hydrophilic)
FBS13PTFE022L Pore:0.22μm Diameter: 13mm 100
FBS13PTFE045L Pore:0.45μm Diameter: 13mm 100
            PES Syringe Filter (Light Green)
FBS13PES022 Pore:0.22μm Diameter: 13mm 100
FBS13PES045 Pore:0.45μm Diameter: 13mm 100
             PVDF Syringe Filter (Hydrophobic)
FBS13PVDF022H Pore:0.22μm Diameter: 13mm 100
FBS13PVDF045H Pore:0.45μm Diameter: 13mm 100
           PVDF Syringe Filter (Hydrophilic)
FBS13PVDF022L Pore:0.22μm Diameter: 13mm 100
FBS13PVDF045L Pore:0.45μm Diameter: 13mm 100
           CA Syringe Filter (Cellulose Acetate)
FBS13CA022 Pore:0.22μm Diameter: 13mm 100
FBS30CA045 Pore:0.45μm Diameter: 13mm 100
                                                     MCE Syringe Filter (Dark Green)
FBS13MCE022 Pore:0.22μm Diameter: 13mm 100
FBS13MCE045 Pore:0.45μm Diameter: 13mm 100
           PP Syringe Filter (Polypropylene)
FBS13PP022 Pore:0.22μm Diameter: 13mm 100
FBS13PP045 Pore:0.45μm Diameter: 13mm 100
                                                      GF Syringe Filter (Glass Fiber)
FBS13GF070 Pore:0.7μm Diameter: 13mm 100
FBS13GF120 Pore:1.2μm Diameter: 13mm 100
Item Description Packaging
(pcs/pk)
                Nylon66 Syringe Filter (Blue)
FBS13NY022 Pore:0.22μm Diameter: 13mm 100
FBS13NY045 Pore:0.45μm Diameter: 13mm 100
                        PTFE Syringe Filter (Hydrophobic)
FBS13PTFE022H Pore:0.22μm Diameter: 13mm 100
FBS30PTFE045H Pore:0.45μm Diameter: 13mm 100
                   PTFE Syringe Filter (Hydrophilic)
FBS13PTFE022L Pore:0.22μm Diameter: 13mm 100
FBS13PTFE045L Pore:0.45μm Diameter: 13mm 100
            PES Syringe Filter (Light Green)
FBS13PES022 Pore:0.22μm Diameter: 13mm 100
FBS13PES045 Pore:0.45μm Diameter: 13mm 100
             PVDF Syringe Filter (Hydrophobic)
FBS13PVDF022H Pore:0.22μm Diameter: 13mm 100
FBS13PVDF045H Pore:0.45μm Diameter: 13mm 100
           PVDF Syringe Filter (Hydrophilic)
FBS13PVDF022L Pore:0.22μm Diameter: 13mm 100
FBS13PVDF045L Pore:0.45μm Diameter: 13mm 100
           CA Syringe Filter (Cellulose Acetate)
FBS13CA022 Pore:0.22μm Diameter: 13mm 100
FBS30CA045 Pore:0.45μm Diameter: 13mm 100
                                                     MCE Syringe Filter (Dark Green)
FBS13MCE022 Pore:0.22μm Diameter: 13mm 100
FBS13MCE045 Pore:0.45μm Diameter: 13mm 100
           PP Syringe Filter (Polypropylene)
FBS13PP022 Pore:0.22μm Diameter: 13mm 100
FBS13PP045 Pore:0.45μm Diameter: 13mm 100
                                                      GF Syringe Filter (Glass Fiber)
FBS13GF070 Pore:0.7μm Diameter: 13mm 100
FBS13GF120 Pore:1.2μm Diameter: 13mm 100

No download files available for this product.

Frequently Asked Questions

1What is the main advantage of the 13mm size syringe filter?
Its compact size minimizes sample loss with a holdup volume of <25 μl, making it perfect for micro-sample analysis.
2Which membrane should I choose for solvent filtration?
Hydrophobic PTFE membranes are ideal for filtering strong solvents and gases due to their chemical resistance.
3Can the 13mm syringe filter be used for protein solutions?
Yes, PES and PVDF (hydrophilic) membranes are excellent choices for protein-rich solutions, minimizing protein binding.
4Is the 13mm syringe filter compatible with HPLC systems?
Absolutely. Nylon and PES membranes are widely recommended for HPLC sample preparation thanks to their low extractables.
5How does it ensure sterility during filtration?
By using precise pore sizes (0.22 μm or 0.45 μm), the filter effectively removes bacteria and particulates from solutions.
