Q: How do AELAB Nylon Syringe Filters ensure high precision in HPLC sample prep?

They use imported hydrophilic nylon membranes with consistent pore structures, providing reliable particle retention and reproducible chromatographic results.

Q: Are these syringe filters compatible with both aqueous and organic solvents?

Yes, the hydrophilic nylon membrane is suitable for a wide range of aqueous solutions and organic solvents, ensuring versatile lab use.

Q: How does AELAB minimize sample loss during filtration?

With ultra-low holdup volumes (<10 μl for 13 mm filters), maximum recovery of valuable samples is guaranteed.

Q: What safety standards do these syringe filters comply with?

They are manufactured in ISO 9001-certified facilities, ensuring consistent quality, safety, and performance.

Q: Which pore size should I choose for my application?

Use 0.22 μm for sterilization and fine filtration, and 0.45 μm for general sample clarification.

AELAB Nylon Syringe Filters deliver reliable and consistent sample preparation for laboratories. Featuring hydrophilic nylon membranes compatible with aqueous and organic solvents, they are ideal for HPLC sample filtration and general lab applications. Designed with robust polypropylene housing, these filters ensure leak-free performance and precise results.

Modles : FBS Series

Quantity:

Send Email

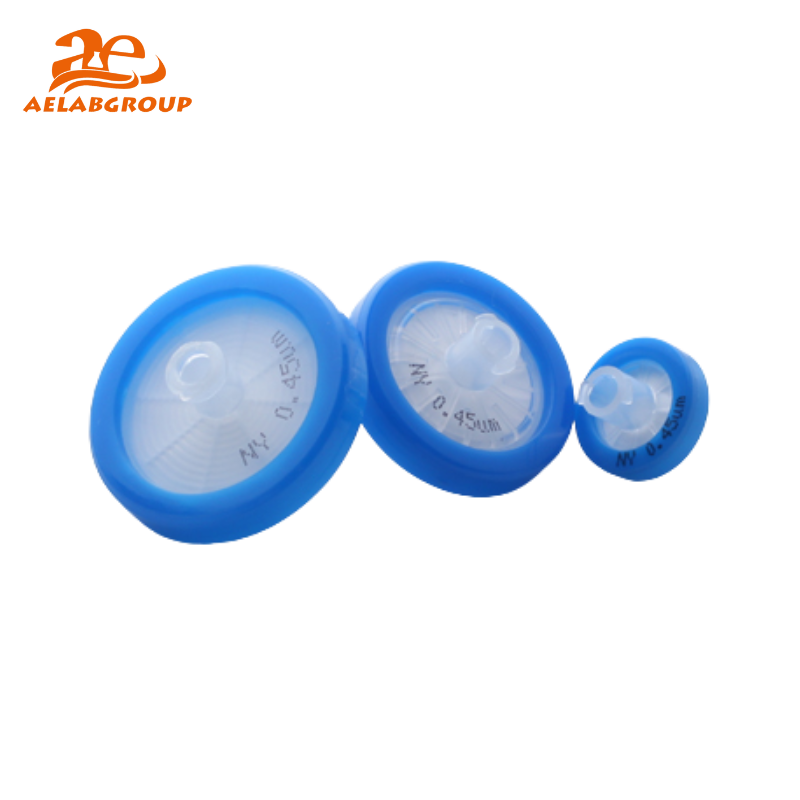

The AELAB Nylon Syringe Filter provides reliable and consistent sample clarification for laboratories worldwide. Featuring hydrophilic nylon membranes and robust medical-grade polypropylene housing, it is the preferred choice for HPLC sample preparation, routine lab filtration, and analytical testing. Available in multiple sizes (13 mm, 25 mm, and 30 mm) and pore sizes (0.22 μm, 0.45 μm), these syringe filters combine technical excellence with user-friendly design.

🔬 How It Works?

AELAB Nylon Syringe Filters operate by forcing liquid samples through a hydrophilic nylon membrane, which traps particles and impurities. This ensures that only clean, particle-free solutions pass through, making them ideal for preparing samples before HPLC injection or general lab filtration. The high-torque sealing and leak-proof polypropylene housing guarantee stable, consistent operation even under high pressure.

💡 Advantages

High Precision: Consistent pore sizes (0.22 μm / 0.45 μm) deliver reproducible results.
Chemical Compatibility: Suitable for aqueous solutions and organic solvents.
Leak-Free Design: Virgin PP housing with non-gap sealing prevents solvent leakage.
User-Friendly: Low holdup volume minimizes sample loss.
Reliable Performance: ISO 9001-certified production ensures quality assurance.

🔍 Recommended Models by Use Case

Educational Labs: 13 mm, 0.45 μm – cost-effective for routine teaching applications.
Quality Control Departments: 25 mm, 0.22 μm – precise filtration for sample testing.
Research Centers: 30 mm, 0.22 μm – higher filtration area for larger sample volumes.
Pharmaceutical & HPLC Labs: 25 mm, 0.22 μm – optimized for critical HPLC sample preparation.

🧪 Ideal For

HPLC sample preparation
Analytical chemistry labs
Food & beverage testing labs
Environmental analysis
Pharmaceutical quality control
General aqueous and organic solvent filtration

Quality Certificate

NYLON Syringe Filter, 13mm, 0.22µm, Nonsterile	Part Number:FBS13NY022
	Lot Number: 2023051001

ISO 9001 Quality Standard

The product was manufactured in the Nantong Aelab Membrane Co., Ltd facility whose Quality Management System is approved by an accredited registering body to the ISO 9001 Quality Systems Standard.

Syringe Filter Lot Characterization
Membrane material and Pore size	Nylon 0.22µm
Wettability	Hydrophilic
Housing Material	Polypropylene
Inlet/Outlet	Female luer lock/Male luer silp
Maximum Operating Temperature(°C)	50
Filtration area(cm²)	≈1
Holdup volume (μl)	<10
Volume Throughput (ml)	100
bubble point (mpa)	0.33-0.36
Burst pressure(psi)	100
Flow Rate((mL/min/cm2 at 1 bar)	7.7

HPLC Test
Conditions	Two ml of the solvent were applied to the filter, 100ul of the filtrate were injected to the HPLC
Eluent A	Water
Eluent B	Acetonitrile
Eluent C	Methanol
Gradient	10%-95% B in 25 minutes
Sensitivity	-5 to 10 mAU at 254nm
Column	Waters SunFire C18,5μm,4.6×150mm

Specifications :

Item	Description	Packaging (pcs/pk)
Nylon66 Syringe Filter (Blue )
FBS13NY022	Pore:0.22μm	Diameter: 13mm	100
FBS13NY045	Pore:0.45μm	Diameter: 13mm	100
FBS25NY022	Pore:0.22μm	Diameter: 25mm	100
FBS25NY045	Pore:0.45μm	Diameter: 25mm	100
FBS30NY022	Pore:0.22μm	Diameter: 30mm	100
FBS30NY045	Pore:0.45μm	Diameter: 30mm	100

Technical specifications

Parameters	13mm	25mm	30mm
Effective Filtration Area(cm2)	1	3	4.5
Bubble Point (mpa)	0.28-0.36 (0.22um) 0.15-0.2 (0.45um)	0.28-0.36 (0.22um) 0.15-0.2 (0.45um)	0.28-0.36 (0.22um) 0.15-0.2 (0.45um)
Maximum Pressure	87psi (6.0 bar) at 20 °C	87psi (6.0 bar) at 20 °C	87psi (6.0 bar) at 20 °C
Maximum Operating Temperature	50 °C	50 °C	50 °C
Materials of Construction	Housing: Polypropylene	Housing: Polypropylene	Housing: Polypropylene
Filtration Media	Nylon membrane
Burst Pressure (psi)	100	100	100
Holdup volume (μl)	<10	<100	<200
Sample volume (ml)	<10	<100	<200
Connectors	Inlet: Female Luer Lock Outlet: Male Slip Luer	Inlet: Female Luer Lock Outlet: Male Slip Luer	Inlet: Female Luer Lock Outlet: Male Slip Luer
Flow Direction	Inlet: Female Luer Lock Outlet: Male Slip Luer (MSL)	Inlet: Female Luer Lock Outlet: Male Slip Luer	Inlet: Female Luer Lock Outlet: Male Slip Luer
Package	100pcs/pk	100pcs/pk	100pcs/pk

HPLC Test
Conditions	Two ml of the solvent were applied to the filter, 100ul of the filtrate were injected to the HPLC
Eluent A	Water
Eluent B	Acetonitrile
Eluent C	Methanol
Gradient	10%-95% B in 25 minutes
Sensitivity	-5 to 10 MAU at 254nm
Column	DAD1 A, Sig= 254, 4 Ref=off (150311LM)

Item	Description	Packaging (pcs/pk)
Nylon66 Syringe Filter (Blue )
FBS13NY022	Pore:0.22μm	Diameter: 13mm	100
FBS13NY045	Pore:0.45μm	Diameter: 13mm	100
FBS25NY022	Pore:0.22μm	Diameter: 25mm	100
FBS25NY045	Pore:0.45μm	Diameter: 25mm	100
FBS30NY022	Pore:0.22μm	Diameter: 30mm	100
FBS30NY045	Pore:0.45μm	Diameter: 30mm	100

Technical specifications

Parameters	13mm	25mm	30mm
Effective Filtration Area(cm2)	1	3	4.5
Bubble Point (mpa)	0.28-0.36 (0.22um) 0.15-0.2 (0.45um)	0.28-0.36 (0.22um) 0.15-0.2 (0.45um)	0.28-0.36 (0.22um) 0.15-0.2 (0.45um)
Maximum Pressure	87psi (6.0 bar) at 20 °C	87psi (6.0 bar) at 20 °C	87psi (6.0 bar) at 20 °C
Maximum Operating Temperature	50 °C	50 °C	50 °C
Materials of Construction	Housing: Polypropylene	Housing: Polypropylene	Housing: Polypropylene
Filtration Media	Nylon membrane
Burst Pressure (psi)	100	100	100
Holdup volume (μl)	<10	<100	<200
Sample volume (ml)	<10	<100	<200
Connectors	Inlet: Female Luer Lock Outlet: Male Slip Luer	Inlet: Female Luer Lock Outlet: Male Slip Luer	Inlet: Female Luer Lock Outlet: Male Slip Luer
Flow Direction	Inlet: Female Luer Lock Outlet: Male Slip Luer (MSL)	Inlet: Female Luer Lock Outlet: Male Slip Luer	Inlet: Female Luer Lock Outlet: Male Slip Luer
Package	100pcs/pk	100pcs/pk	100pcs/pk

HPLC Test
Conditions	Two ml of the solvent were applied to the filter, 100ul of the filtrate were injected to the HPLC
Eluent A	Water
Eluent B	Acetonitrile
Eluent C	Methanol
Gradient	10%-95% B in 25 minutes
Sensitivity	-5 to 10 MAU at 254nm
Column	DAD1 A, Sig= 254, 4 Ref=off (150311LM)
