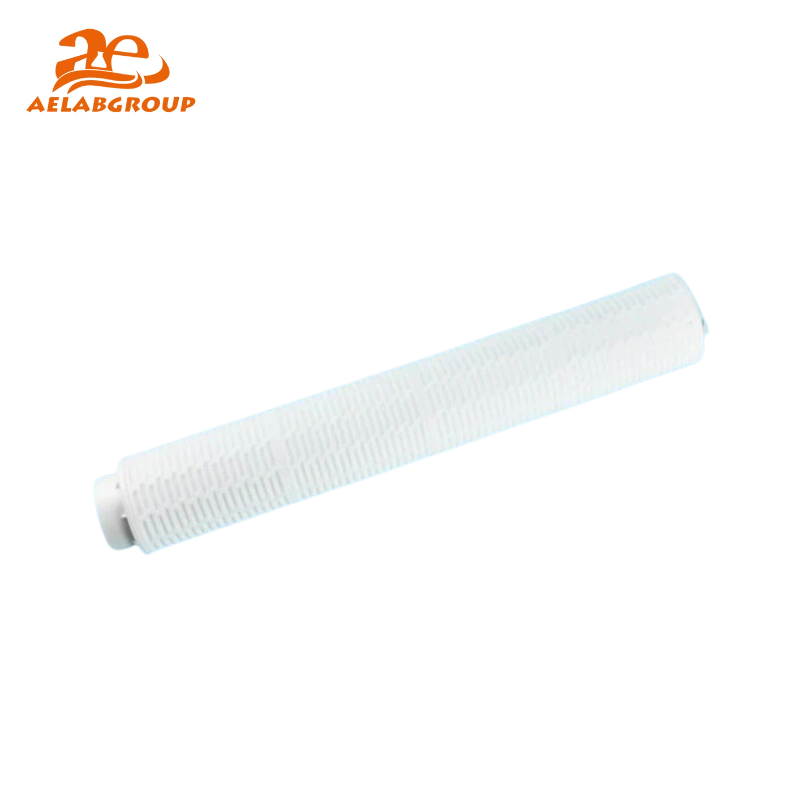

AELAB Super-D Series High Flow Filter Cartridge for Industrial Filtration

Q: What makes the Super-D filter different from conventional cartridges?

Its nano-scale PP fiber membrane and multilayer gradient structure provide 3× longer service life and 1.5× higher flow efficiency.

Q: Can this filter handle high-COD liquids?

Yes, the Super-D series is engineered for challenging fluids like landfill leachate and reclaimed water with complex impurities.

Q: What are the available filtration ratings?

Options include 1, 3, 5, 10, 50, and 100 μm, ensuring compatibility with a wide range of industrial applications.

Q: What is the maximum operating temperature?

The filter is designed to operate safely below 80 ℃.

The AELAB Super-D Series High Flow Filter Cartridge features a unique nano-scale polypropylene membrane with multilayer gradient precision. Offering 1.5× higher flux and over 3× the service life of conventional filters, it ensures efficient, cost-effective liquid filtration in demanding industrial environments.

Modles : Super-D series

Quantity:

Send Email

🔬 How It Works?

The Super-D cartridge incorporates 5–10 layers of gradient precision membranes. Larger particles are trapped in outer layers, while finer particles are captured deeper within the structure. This step-by-step interception maximizes dirt-holding capacity, reduces clogging, and maintains consistent filtration efficiency. The nano-scale PP fibers create a dense, stable filtration matrix for reliable long-term operation.

💡 Advantages

Ultra-High Capacity: Holds significantly more contaminants compared to conventional cartridges
Extended Service Life: More than 3× longer lifespan, minimizing replacement frequency
Superior Flux: Delivers 1.5× higher flow at the same pressure drop
Reduced Costs: Lowers consumables and operational expenses in long-term use
Robust Design: Stable performance even under complex, high-COD water conditions

🔍 Recommended Models by Use Case

Wastewater & Reclaimed Water Plants: High efficiency 40–60″ models for large-scale recycling
Landfill Leachate Treatment: Designed for liquids with complex impurity composition and high COD values
Industrial Water Systems: 20–40″ cartridges for factory water purification
Power & Chemical Plants: Reliable choice for cooling water and process fluid filtration

🧪 Ideal For

Reclaimed water recovery
Landfill leachate treatment
Industrial wastewater systems
Chemical and power plant water filtration
High-load liquid clarification

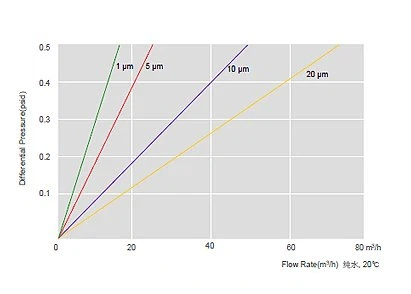

Flow characteristics

Filtration area

≥5.5 m² / 40″

Material structure

– Filter material: nano grade fiber polypropylene (PP)
– Center rod, outer framework and end cover: polypropylene (PP)
– Diversion layer: polypropylene (PP)
– Washer and gasket: fluor rubber, wrapped with PTFE, EPDM

Operating characteristics

– Operating temperature < 80 ℃
– Forward withstand voltage 4 bar (23 ℃)
– Reverse withstand voltage 2 bar (23 ℃)

Filter cartridge dimension

– Outer Diameter: 165 mm
– Length: 20, 40 or 60 inch
