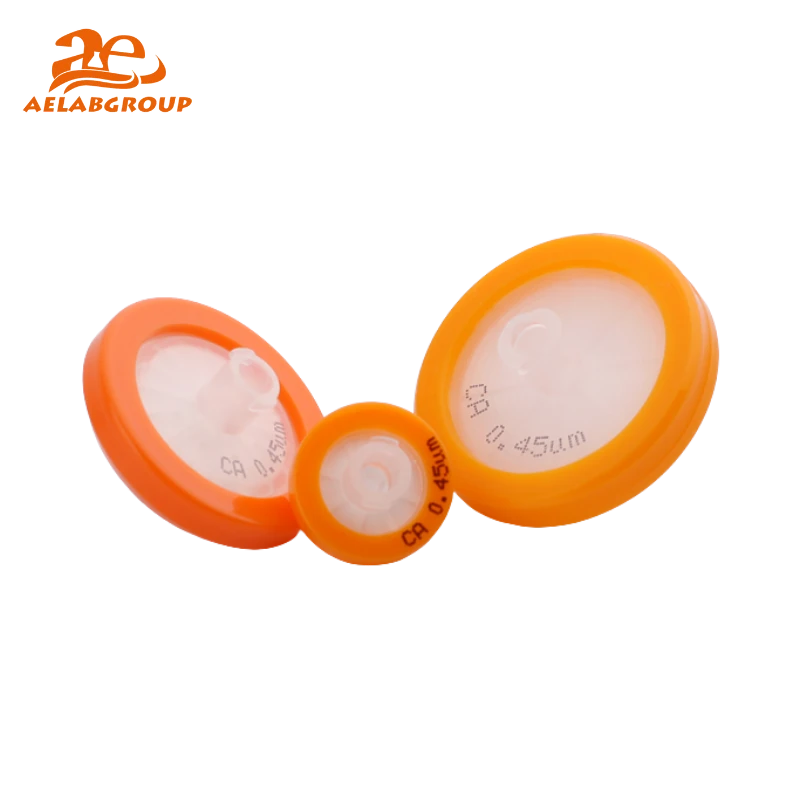

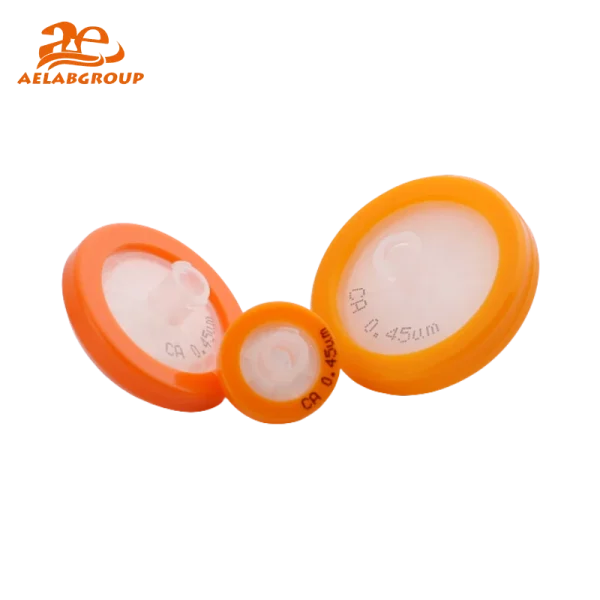

AELAB Syringe Filter CA – Reliable Cellulose Acetate Lab Filtration FBS Series

The AELAB Syringe Filter CA is designed with a hydrophilic cellulose acetate membrane that ensures high protein recovery and minimal binding. With diameters of 13 mm, 25 mm, and 30 mm, it delivers leak-proof, efficient performance, making it a dependable choice for demanding laboratory applications.
Modles : FBS Series
whatsapp Whatsapp

The AELAB Syringe Filter CA is engineered with a cellulose acetate membrane that offers exceptional protein recovery and integrity. Available in 13 mm, 25 mm, and 30 mm diameters, this syringe filter guarantees consistent and reliable performance in filtration. Its medical-grade polypropylene housing ensures sample safety and prevents leakage, making it ideal for demanding lab applications.



🔬 How It Works?

The AELAB Syringe Filter CA functions by forcing liquid samples through a hydrophilic cellulose acetate membrane. The membrane selectively captures particles while allowing clean filtrate to pass through, ensuring maximum protein recovery. Its precise engineering prevents leakage, delivering reproducible and reliable results for aqueous-based applications.



💡 Advantages

  • High protein recovery – Ideal for sensitive biological samples
  • Leak-proof construction – Virgin polypropylene housing ensures solvent safety
  • Multiple sizes available – Choose 13 mm, 25 mm, or 30 mm based on sample volume
  • Consistent performance – Manufactured under strict ISO 9001 quality standards
  • Low maintenance & cost-efficient – Reduces downtime and filtration costs



🔍 Recommended Models by Use Case

  • Educational Labs: 13 mm diameter with 0.45 µm pore size for basic sample preparation.
  • Research Centers: 25 mm with 0.22 µm pore size for sensitive protein recovery and advanced analyses.
  • QC Departments: 30 mm diameter filters for high-volume throughput and reliable performance.



 🧪 Ideal For

  • Protein and enzyme research
  • Pharmaceutical and biotech labs
  • Food safety and chemical testing labs
  • HPLC sample preparation
  • General aqueous-based filtration



Syringe Filter Lot Characterization

Membrane material and Pore size CA 0.45µm
Wettability Hydrophilic
Housing Material Polypropylene
Inlet/Outlet Female luer lock/Male luer silp
Maximum Operating Temperature(°C) 50
Filtration area(cm2) ≈3
Holdup volume (μl) <100
Volume Throughput (ml) 100
Bubble point (mpa) 0.21-0.25
Burst pressure(psi) 100
Flow Rate(ml/min/cm2/bar) 38.5
Package 100pcs/pk

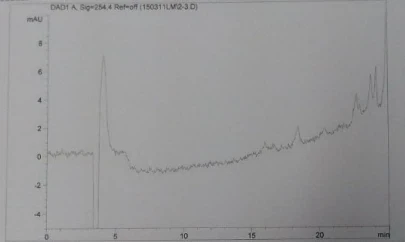

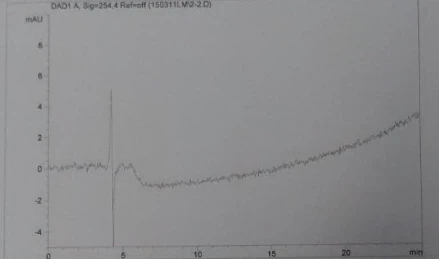

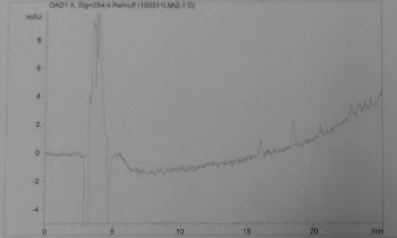

HPLC Test

Conditions Two ml of the solvent were applied to the filter, 100 ul of the filtrate were injected to the HPLC
Eluent A Water
Eluent B Acetonitrile
Eluent C Methanol
Gradient 10%-95% B in 25 minutes
Sensitivity -5 to 10 m AU at 254nm
Column Waters Sun Fire C18,5μm,4.6×150mm

Specifications :



Diameter 13mm 25mm 30mm
Maximum Pressure 100psi 100psi 100psi
Holdup volume(ul) <10 <100 <200





Item Description Packaging (pcs/pk)
 CA Syringe Filter (Cellulose Acetate)
FBS13CA022 Pore:0.22μm Diameter: 13mm 100
FBS13CA045 Pore:0.45μm Diameter: 13mm 100
FBS25CA022 Pore:0.22μm Diameter: 25mm 100
FBS25CA045 Pore:0.45μm Diameter: 25mm 100
FBS30CA022 Pore:0.22μm Diameter: 30mm 100
FBS30CA045 Pore:0.45μm Diameter: 30mm 100



Diameter 13mm 25mm 30mm
Maximum Pressure 100psi 100psi 100psi
Holdup volume(ul) <10 <100 <200





Item Description Packaging (pcs/pk)
 CA Syringe Filter (Cellulose Acetate)
FBS13CA022 Pore:0.22μm Diameter: 13mm 100
FBS13CA045 Pore:0.45μm Diameter: 13mm 100
FBS25CA022 Pore:0.22μm Diameter: 25mm 100
FBS25CA045 Pore:0.45μm Diameter: 25mm 100
FBS30CA022 Pore:0.22μm Diameter: 30mm 100
FBS30CA045 Pore:0.45μm Diameter: 30mm 100

No download files available for this product.

Frequently Asked Questions

1How does the AELAB Syringe Filter CA ensure high recovery?
Its low protein-binding cellulose acetate membrane minimizes adsorption, preserving analyte integrity.
2Can this filter be used for organic solvents?
No, the CA membrane is specifically optimized for aqueous samples. For organic solvents, AELAB offers alternative membranes.
3No, the CA membrane is specifically optimized for aqueous samples. For organic solvents, AELAB offers alternative membranes.
The product is manufactured under ISO 9001 Quality Management Systems, ensuring global compliance.
4How do I choose between 0.22 µm and 0.45 µm pore sizes?
Use 0.22 µm for finer particulate removal (e.g., sterilization-grade filtration) and 0.45 µm for general sample clarification.
5Is it compatible with HPLC?
Yes, it undergoes stringent HPLC performance testing to guarantee solvent compatibility and reproducibility.
